| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

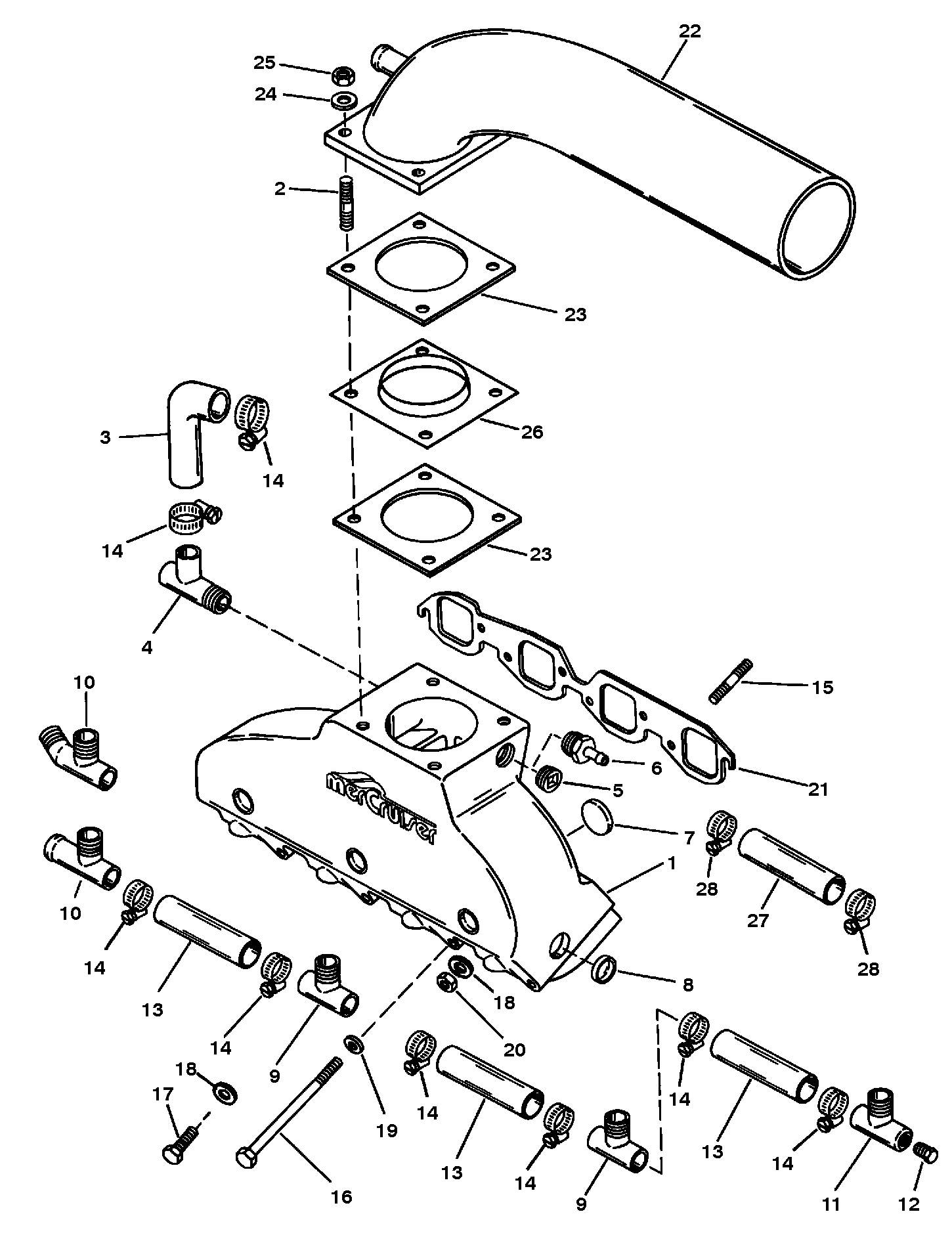

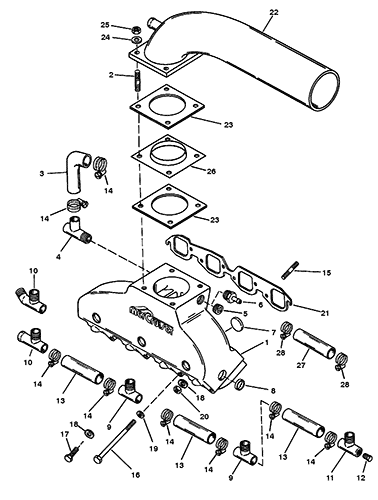

| 1 |
8M0084206 |
|
|
|
|
MANIFOLD ASSEMBLY-Exhaust (PORT) |
1 |
814901A5 |
|
| 1 |
814901T6 |
|
|
|
|
MANIFOLD ASSEMBLY-Exhaust (STARBOARD) |
1 |
814901A6 |
|
| 2 |
16-815214 |
|
|
|
|
STUD |
8 |
|
|
| 3 |
32-8152121 |
|
|
|
|
HOSE-Manifold to Exhaust Pipe |
2 |
|
|
| 4 |
22-816035 |
|
|
|
|
FITTING |
2 |
|
|
| 5 |
19-815203 |
|
|
|
|
PLUG-Pipe |
2 |
|
|
| 6 |
22-818768 |
|
|
|
|
FITTING (Straight) |
2 |
|
|
| 7 |
19-815205 |
|
|
|
|
FREEZE PLUG (Large) (1.00) |
10 |
|
This Part is No Longer Available |
| 8 |
19-815204 |
|
|
|
|
FREEZE PLUG (Small) (.750) |
4 |
|
|
| 9 |
22-815208 |
|
|
|
|
FITTING-Tee |
4 |
|
This Part is No Longer Available |
| 10 |
22-815210 |
|
|
|
|
FITTING-Tee |
2 |
|
This Part is No Longer Available |
| 11 |
22-815209 |
|
|
|
|
FITTING-Tee |
2 |
|
This Part is No Longer Available |
| 12 |
19-815211 |
|
|
|
|
PLUG-Pipe-Drain |
2 |
|
This Part is No Longer Available |
| 13 |
32-815215 |
|
|
|
|
HOSE (3.500 In.) |
6 |
|
|
| 14 |
54-815207 |
|
|
|
|
CLAMP |
16 |
|
|
| 15 |
16-821279 |
|
|
|
|
STUD (2.187 In.) |
4 |
|
|
| 16 |
10-821107 |
|
|
|
|
SCREW (.375-16 x 3.00) |
8 |
|
|
| 17 |
10-812567 |
|
|
|
|
SCREW (.375-16 x 1.625) |
4 |
|
|
| 18 |
12-20572 |
|
|
|
|
WASHER |
8 |
|
|
| 19 |
12-37828 |
|
|
|
|
WASHER |
8 |
|
|
| 20 |
11-25269 |
|
|
|
|
NUT (.375-24) |
4 |
|
|
| 21 |
27-46820 |
|
|
|
|
GASKET-Exhaust Manifold to Head |
2 |
|
14 |
| 22 |
818495A1 |
|
|
|
|
ELBOW KIT-Exhaust (Standard) |
2 |
|
This Part is No Longer Available (TRANSMISSION MODELS) |
| 22 |
818496A1 |
|
|
|
|
ELBOW KIT-Exhaust (3.00 In.) |
OPT |
|
This Part is No Longer Available (TRANSMISSION MODELS) 2 |
| 22 |
818497A1 |
|
|
|
|
ELBOW KIT-Exhaust (6.00 In.) |
OPT |
|
This Part is No Longer Available (TRANSMISSION MODELS) 2 |
| 22 |
818498A1 |
|
|
|
|
ELBOW KIT-Exhaust (Standard) |
2 |
|
This Part is No Longer Available (BRAVO MODELS) |
| 22 |
818499A1 |
|
|
|
|
ELBOW KIT-Exhaust (3.00 In.) |
OPT |
|
This Part is No Longer Available (BRAVO MODELS) 2 |
| 22 |
818500A1 |
|
|
|
|
ELBOW KIT-Exhaust (6.00 In.) |
OPT |
|
(BRAVO MODELS) 2 |
| 23 |
27-848147 |
|
|
|
|
GASKET-Exhaust Elbow |
2 |
|
|
| 24 |
12-49112 |
|
|
|
|
WASHER |
8 |
|
This Part is No Longer Available |
| 25 |
11-68411 |
|
|
|
|
NUT (.375-16) |
8 |
|
No longer made, limited availability |
| 26 |
816037 |
|
|
|
|
PLATE-Diffuser |
2 |
|
|
| 27 |
32-688941 |
|
|
|
|
HOSE (48.00 In. Bulk) (Cut 6.00 In.) |
1 |
|
|
| 28 |
54-815504105 |
|
|
|
|
CLAMP |
2 |
|
|
| - |
27-817118A90 |
|
|
|
|
Gasket Set |
- |
|
This Part is No Longer Available |
| - |
27-827014A98 |
|
|
|
|
Gasket Set |
- |
27-827014A92 |
|
