| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superseded From |
Special Notes |

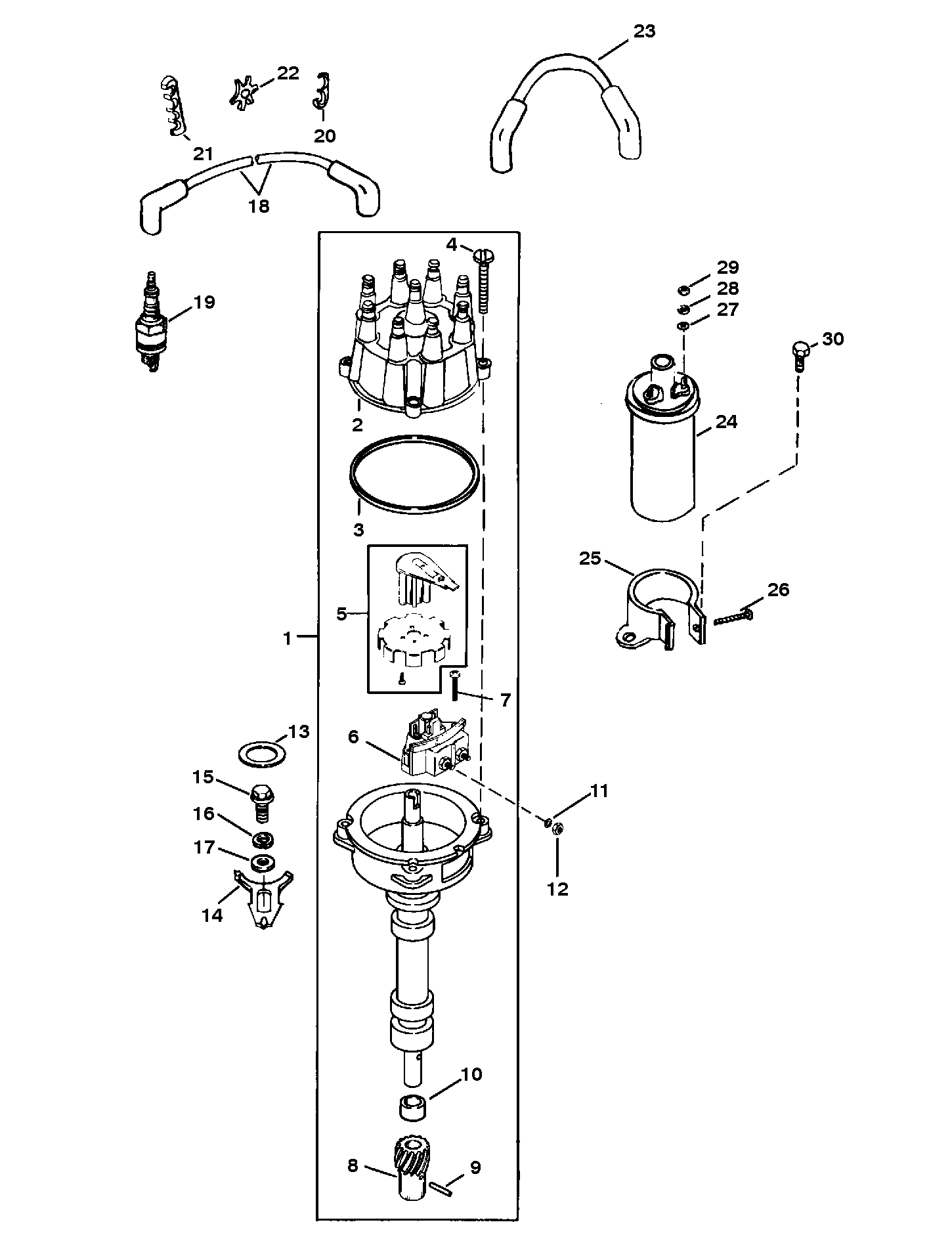

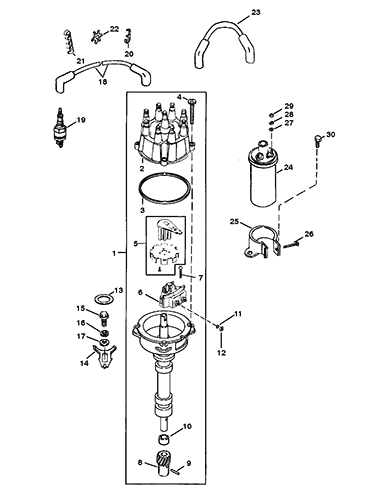

| 1 |
805185A36 |
|
|
700-71250 |
|
DISTRIBUTOR ASSEMBLY |
1 |
90747A27 |
|
| 2 |
805759T1 |
|
676-9-29403 |
|
|
CAP ASSEMBLY |
1 |
805759A2 |
|
| 3 |
27-805760 |
|
676-9-61050 |
700-32060 |
|
GASKET-Distributor Cap |
1 |
|
14 |
| 4 |
10-90926 |
|
|
700-22305 |
|
SCREW (#10-32 x .812) |
4 |
|
|
| 5 |
13524T1 |
|
|
700-72880 |
|
WHEEL ASSEMBLY-Rotor Sensor |
1 |
13524A5 |
4 |
| 6 |
87-892150Q02 |
|
|
|
|
SENSOR ASSEMBLY |
1 |
87-91019A3
|
|
| 7 |
10-66686 |
|
|
700-22311 |
|
SCREW (#10-32 x 1.00) |
1 |
|
|
| 7 |
10-72202 |
|
|
700-22312 |
|
SCREW (#10-32 x 1.250 |
1 |
|
|
| 8 |
43-818807 |
|
|
700-19360 |
|
GEAR-Drive |
1 |
|
|
| 9 |
17-47617 |
|
|
700-22195 |
|
PIN |
1 |
|
|
| 10 |
23-90915 |
|
|
700-21426 |
|
BUSHING |
2 |
|
|
| 11 |
13-26996 |
|
|
|
|
LOCKWASHER (#10) |
2 |
|
|
| 12 |
11-68219 |
|
|
|
|
NUT (#10-32) |
2 |
|
|
| 13 |
27-344863 |
|
|
|
|
GASKET |
1 |
|
14 |
| 14 |
52185 |
|
|
|
|
CLAMP |
1 |
|
|
| 15 |
10-34353 |
|
|
|
525-10-34353 |
SCREW (.375-16 x 1.00) |
1 |
|
|
| 16 |
13-35048 |
|
|
700-21495 |
|
LOCKWASHER (.375) |
1 |
|
|
| 17 |
12-20553 |
|
|
700-21675 |
|
WASHER |
1 |
|
|
| 18 |
84-816608Q61 |
|
|
|
|
CABLE KIT-Ignition-Spark Plugs (RED) |
1 |
84-816608A61 |
|
| 18 |
84-847701Q7 |
|
|
|
|
CABLE KIT-Ignition-Spark Plugs & Coil (BLUE) |
1 |
84-847701A7 |
|
| 19 |
33-8134214 |
|
|
|
|
SPARK PLUG |
8 |
33-813421 |
|
| 20 |
54676 |
|
|
|
|
RETAINER (2 WIRE) |
2 |
|
|
| 21 |
32783 |
|
|
|
|
RETAINER (3 WIRE) |
2 |
|
|
| 22 |
32784 |
|
|
|
|
RETAINER (4 WIRE) |
4 |
|
|
| 23 |
816674 |
|
|
|
|
WIRE ASSEMBLY-Coil (BLACK) |
1 |
|
This Part is No Longer Available |
| 24 |
300-8M0079202 |
|
|
|
|
COIL KIT-Ignition |
1 |
392-805570A2 |
|
| 25 |
65970T1 |
|
|
|
|
BRACKET-Coil Mount (On Electrical Bracket |
1 |
65970T |
4 |
| 25 |
77294T |
|
|
|
|
BRACKET-Coil Mount (On Intake Manifold) |
1 |
|
This Part is No Longer Available |
| 26 |
10-41408 |
|
|
|
|
SCREW (#10-32 x 1.500) |
1 |
|
|
| 27 |
12-30164 |
|
|
|
|
WASHER |
2 |
|
|
| 28 |
13-26996 |
|
|
|
|
LOCKWASHER (#10) |
2 |
|
11-68219p; |
| 29 |
11-68219 |
|
|
|
|
NUT (#10-32) |
2 |
|
|
| 30 |
10-98261 |
|
|
|
|
SCREW (.375-16 x .750) |
2 |
|
|
| - |
27-817118A90 |
|
|
|
|
Gasket Set |
1 |
|
This Part is No Longer Available |
| - |
27-827014A98 |
|
|
|
|
Gasket Set |
1 |
27-827014A92 |
|
