| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

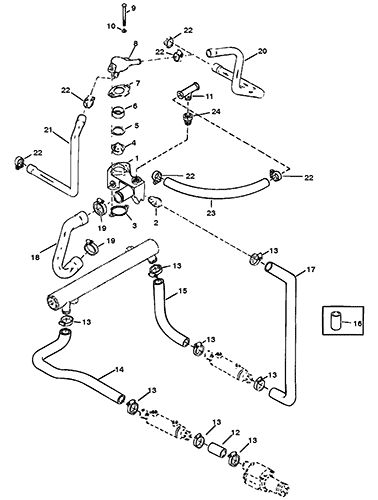

| 1 |
817131A1 |
|
|
|
|
HOUSING ASSEMBLY-Thermostat |
1 |
|
This Part is No Longer Available |
| 2 |
23-47511 |
|
|
|
|
SLEEVE |
1 |
|
|
| 3 |
27-530451 |
|
|
|
|
GASKET-Thermostat Housing |
1 |
|
14 |
| 4 |
807252T1 |
|
|
|
|
THERMOSTAT (140_) |
1 |
8052731 |
4 |
| 5 |
27-47510 |
|
|
|
|
GASKET-Thermostat |
1 |
|
14 |
| 6 |
23-47508T |
|
|
|
|
SLEEVE-Thermostat |
1 |
23-47508 |
|
| 7 |
27-418122 |
|
|
|
|
GASKET-Thermostat Cover |
1 |
|
14 |
| 8 |
47441A1 |
|
|
|
|
COVER-Thermostat |
1 |
|
|
| 9 |
10-60410 |
|
|
|
|
SCREW (.375-16 x 4.250) |
2 |
|
|
| 10 |
12-20553 |
|
|
|
|
WASHER |
2 |
|
|
| 11 |
22-98477A2 |
|
|
|
|
VALVE ASSEMBLY |
1 |
|
|
| 12 |
32-8M0062665 |
|
|
|
|
HOSE-Water Pump to Oil Cooler |
1 |
32-5346170 |
|
| 13 |
54-180766 |
|
|
|
|
CLAMP |
AR |
|
3 |
| 14 |
32-816504 |
|
|
|
|
HOSE-Oil Cooler to Transmission Cooler |
1 |
|
|
| 15 |
32-848956 |
|
|
|
|
HOSE-Oil Cooler to Power Steering Cooler |
1 |
32-12818 |
|
| 16 |
22-13177 |
|
|
|
|
TUBE-Water Hose (NON POWER STEERING) |
1 |
|
|
| 17 |
32-816344 |
|
|
|
|
HOSE-Thermostat Housing to Power Steering Cooler |
1 |
|
This Part is No Longer Available |
| 18 |
32-8163451 |
|
|
|
|
HOSE-Thermostat Housing to Water Pump |
1 |
|
This Part is No Longer Available |
| 19 |
54-180769 |
|
|
|
|
CLAMP |
2 |
|
This Part is No Longer Available |
| 20 |
32-816347 |
|
|
|
|
HOSE-Thermostat Cover (PORT) |
1 |
|
|
| 21 |
32-848957 |
|
|
|
|
HOSE-Thermostat Cover (STARBOARD) |
1 |
32-816346 |
|
| 22 |
54-180764 |
|
|
|
|
CLAMP-HOSE |
8 |
|
(S/N: 0D456000 - 0D763745) 5 |
| 22 |
54-84775218 |
|
|
|
|
CLAMP-HOSE |
4 |
|
(S/N: 0D763746 - 0F348963) 6 |
| 23 |
32-8M0062614 |
|
|
|
|
HOSE (48.00 In. Bulk) (Cut 17.00 In.) |
2 |
32-3322070 |
(S/N: 0D456000 - 0D763745) 5 |
| 23 |
32-847764A1 |
|
|
|
|
HOSE ASSEMBLY (22.00 In.) |
1 |
|
(S/N: 0D763746 - 0F348963) 6 |
| 23 |
32-847764A2 |
|
|
|
|
HOSE ASSEMBLY (17.00 In.) |
1 |
|
This Part is No Longer Available (S/N: 0D763746 - 0F348963) 6 |
| 24 |
22-847768 |
|
|
|
|
FITTING-Adaptor |
1 |
|
This Part is No Longer Available |
| - |
27-817118A90 |
|
|
|
|
Gasket Set |
- |
|
This Part is No Longer Available |
| - |
27-827014A98 |
|
|
|
|
Gasket Set |
- |
27-827014A92 |
|
