| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

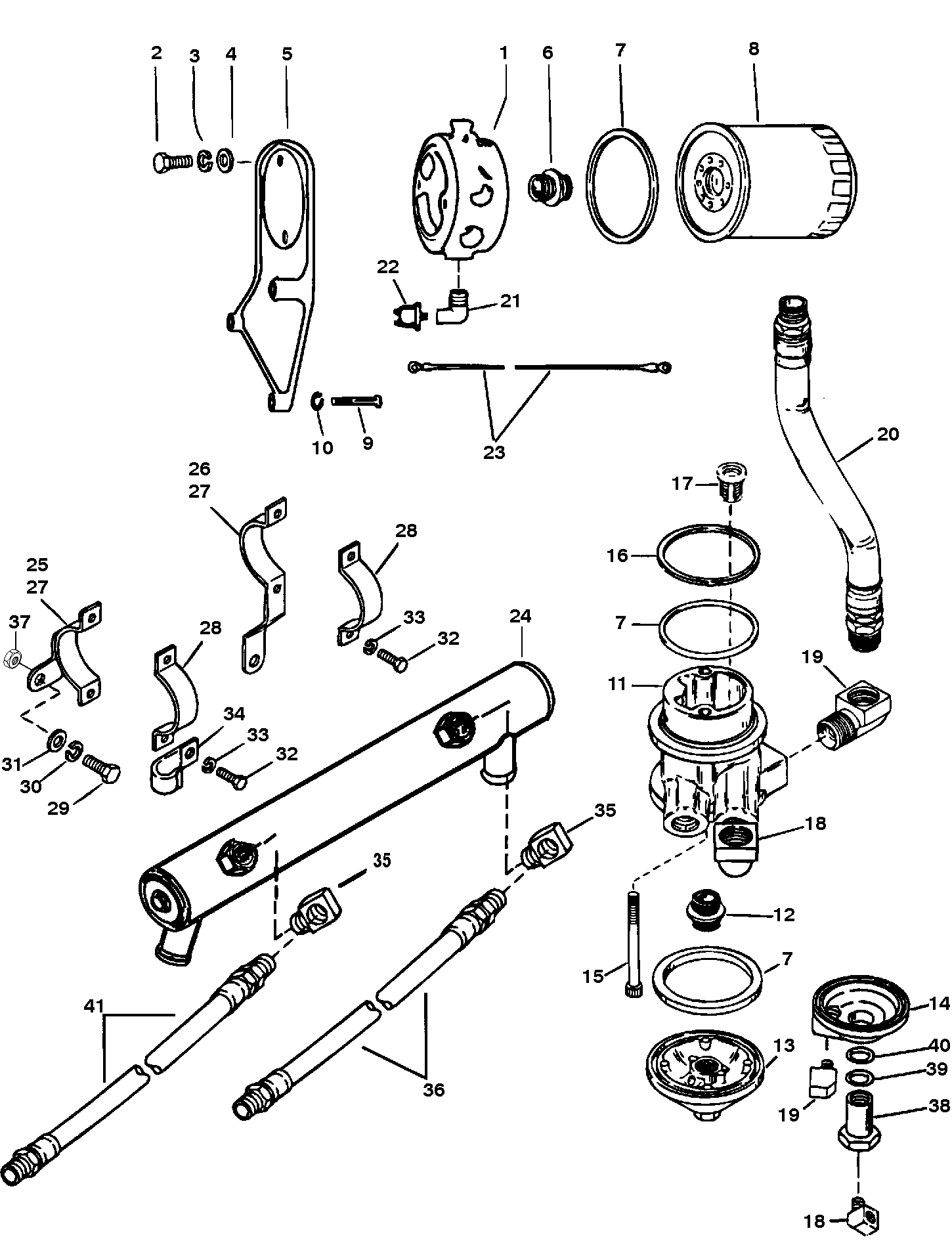

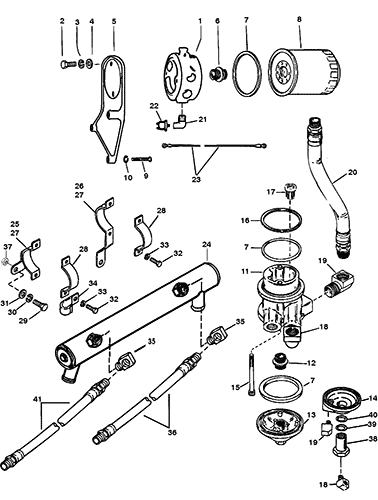

| 1 |
48504T2 |
|
|
|
|
ADAPTOR-Oil Filter |
1 |
48504A2 |
|
| 2 |
10-34353 |
|
|
|
|
SCREW (.375-16 x 1.00)-Adaptor to Bracket |
2 |
|
|
| 3 |
13-35048 |
|
|
|
|
LOCKWASHER (.375)-Adaptor Screw |
2 |
|
|
| 4 |
12-20553 |
|
|
|
|
WASHER-Oil Filter Adaptor Screw |
2 |
|
|
| 5 |
63880T |
|
|
|
|
BRACKET-Oil Filter |
1 |
|
|
| 6 |
22-805632 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 7 |
27-91892 |
|
|
|
|
GASKET-Adaptor Cover and Oil Filter |
3 |
|
14 |
| 8 |
35-16595Q |
|
|
|
|
FILTER-Oil |
1 |
35-16595 |
|
| 9 |
10-47462 |
|
|
|
|
SCREW (.437-14 x 1.250)-Bracket to Engine |
2 |
|
|
| 9 |
10-37612 |
|
|
|
|
SCREW (.375-16 x 1.250)-Bracket to Engine |
1 |
|
|
| 10 |
13-35048 |
|
|
|
|
LOCKWASHER (.375)-Bracket Screw |
1 |
|
|
| 10 |
13-32993 |
|
|
|
|
LOCKWASHER (.437)-Bracket Screw |
2 |
|
|
| 11 |
90783A22 |
|
|
|
|
ADAPTOR ASSY-Oil Filter |
1 |
|
(S/N: 0D456000 - 0D763745) 5 |
| 12 |
22-805632 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 13 |
91830 |
|
|
|
|
COVER-Adaptor |
1 |
|
(S/N: 0D456000 - 0D763745) 5 |
| 14 |
35-818400A1 |
|
|
|
|
ADAPTOR |
1 |
35-818400T |
(S/N: 0D763746 - 0F348963) 4,6 |
| 15 |
10-91966 |
|
|
|
|
SCREW (.312-18 x 4.00)-Oil Filter Adaptor |
1 |
|
This Part is No Longer Available No longer made, limited availability |
| 15 |
10-91967 |
|
|
|
|
SCREW (.312-18 x 3.500)-Oil Filter Adaptor |
1 |
|
This Part is No Longer Available No longer made, limited availability |
| 16 |
27-99893 |
|
|
|
|
GASKET-Oil Filter Adaptor |
1 |
|
No longer made, limited availability 14 |
| 17 |
99889 |
|
|
|
|
VALVE-By Pass |
1 |
|
|
| 18 |
22-63825 |
|
|
|
|
ELBOW-Oil Hose |
1 |
|
|
| 19 |
22-48246 |
|
|
|
|
ELBOW-Oil Hose |
1 |
|
|
| 20 |
32-9235738 |
|
|
|
|
HOSE-Oil-Adaptor (18.500 In.) |
2 |
|
(S/N: 0D456000 - 0D456103) 5 |
| 20 |
32-9235751 |
|
|
|
|
HOSE ASSY-Oil (26.00 In.) |
1 |
|
(S/N: 0D456104 - 0F348963) 6 |
| 21 |
22-54035 |
|
|
|
|
ELBOW (90_) |
1 |
|
This Part is No Longer Available |
| 22 |
87-94009 |
|
|
|
|
SWITCH-Choke Pressure |
1 |
|
|
| 23 |
84-848879A1 |
|
|
|
|
CABLE ASSEMBLY (RED) (35.500 In.) |
1 |
84-79139A16 |
|
| 24 |
816074T |
|
|
|
|
OIL COOLER |
1 |
816074 |
(BRAVO PLUG-IN MODELS) |
| 24 |
816482T |
|
|
|
|
OIL COOLER |
1 |
816482 |
(TRANSMISSION & DRIVELINE MODELS) |
| NS |
817043 |
|
|
|
|
COVER-End |
2 |
|
|
| NS |
27-817042 |
|
|
|
|
GASKET |
2 |
|
|
| NS |
8M0039163 |
|
|
|
|
O RING |
2 |
25-814878 |
|
| NS |
10-816767 |
|
|
|
|
SCREW |
2 |
|
|
| 25 |
8161951 |
|
|
|
|
BRACKET-Oil Cooler |
1 |
|
This Part is No Longer Available (BRAVO MODELS) |
| 26 |
8161961 |
|
|
|
|
BRACKET-Oil Cooler |
1 |
|
(BRAVO MODELS) |
| 27 |
12820 |
|
|
|
|
BRACKET-Oil Cooler |
2 |
|
|
| 28 |
56328A1 |
|
|
|
|
BRACKET-Oil Cooler |
2 |
|
|
| 29 |
10-34353 |
|
|
|
|
SCREW (.375-16 x 1.00) |
1 |
|
|
| 30 |
13-35048 |
|
|
|
|
LOCKWASHER (.375) |
1 |
|
|
| 31 |
12-20553 |
|
|
|
|
WASHER |
1 |
|
|
| 32 |
10-49668 |
|
|
|
|
SCREW (.250-20 x .750) |
6 |
|
(BRAVO MODELS) |
| 32 |
10-60300 |
|
|
|
|
SCREW (.250-28 x .750) |
4 |
|
|
| 33 |
13-26992 |
|
|
|
|
LOCKWASHER (.250) |
6 |
|
(BRAVO MODELS) |
| 34 |
54-15095 |
|
|
|
|
J CLAMP |
1 |
|
|
| 35 |
22-63825 |
|
|
|
|
ELBOW (90_) |
2 |
|
|
| 36 |
32-9235753 |
|
|
|
|
HOSE ASSEMBLY-Oil (28.00 In.) |
1 |
|
|
| 37 |
11-30506 |
|
|
|
|
NUT (.250-28) |
4 |
|
|
| 38 |
22-821914 |
|
|
|
|
FITTING-Filter Adaptor |
1 |
|
This Part is No Longer Available (S/N: 0D763746 - 0F348963) 6 |
| 39 |
12-55822 |
|
|
|
|
WASHER |
1 |
|
(S/N: 0D763746 - 0F348963) 6 |
| 40 |
25-90196 |
|
|
|
|
O RING-Filter |
1 |
|
(S/N: 0D763746 - 0F348963) 6 |
| 41 |
32-9235749 |
|
|
|
|
HOSE ASSY-Oil (24.00 In.) |
1 |
|
(S/N: 0D456104 - 0F348963) 6 |
| - |
27-817118A90 |
|
|
|
|
Gasket Set |
- |
|
This Part is No Longer Available |
| - |
27-827014A98 |
|
|
|
|
Gasket Set |
- |
27-827014A92 |
|
