525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Starter Assembly (50-17251A3)

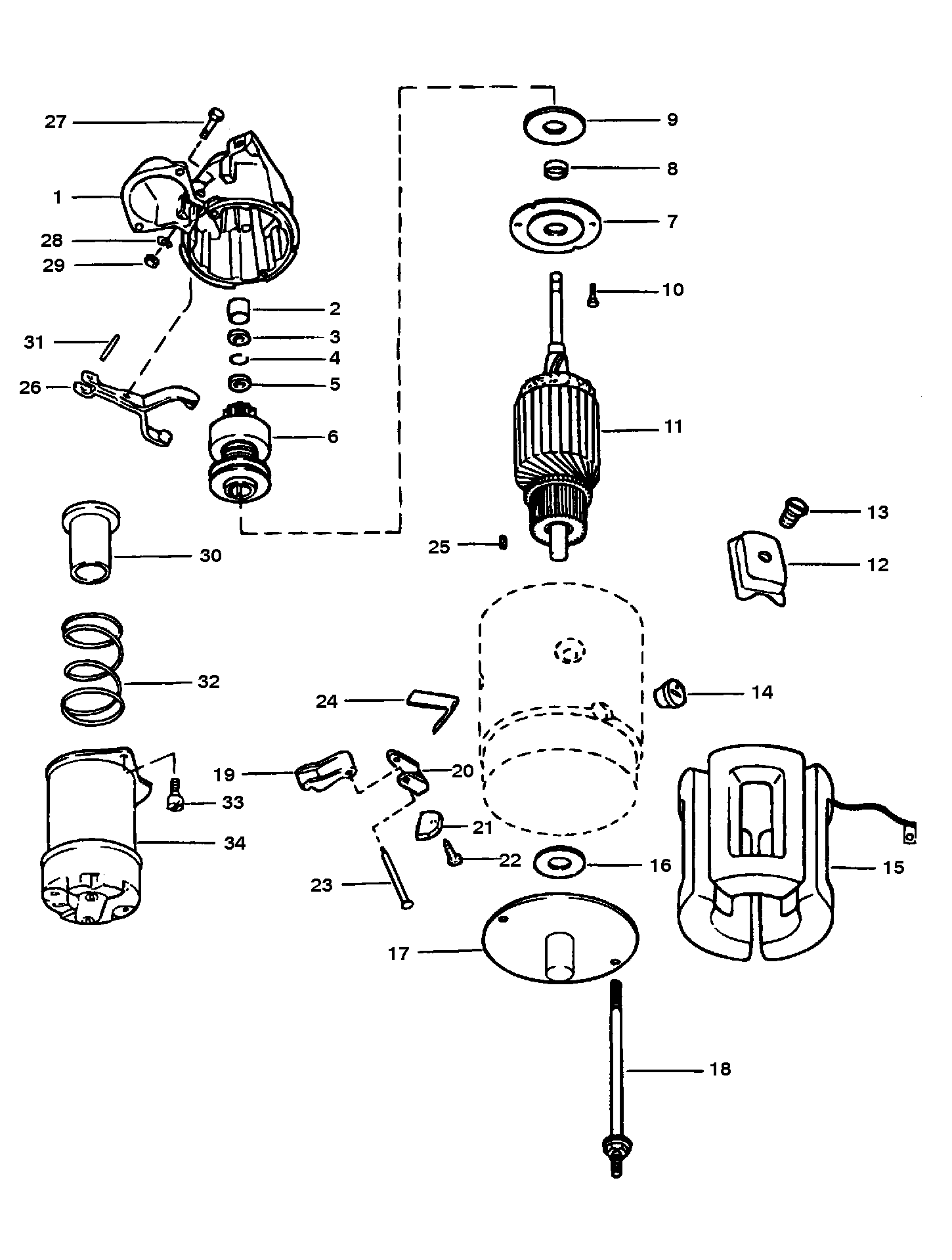

Section Drawing: (Hover or click to view larger)

Untitled Document (NOT SOLD SEPARATELY) SHOULD BE ORDERED FROM A LOCAL SUPPLIER USING THE APPROPRIATE MANUFACTURER'S PART NUMBER.
Note: PARTS LISTED NSS
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 50-808011A05         STARTER ASSEMBLY 1 50-17251A3 (TRANSMISSION & DRIVELINE MODELS) 4
1 79206         HOUSING ASSEMBLY 1   This Part is No Longer Available
2 23-33369         BUSHING-Drive End Housing 1   This Part is No Longer Available
3 23-809457         COLLAR-- st 1 814474 This Part is No Longer Available
4 53-33290         RING-Retaining-Pinion Stop Collar 1

5 33291         COLLAR-Pinion Stop 1

6 68608         DRIVE ASSEMBLY-Clutch 1   This Part is No Longer Available
7 79396         PLATE-Bearing 1   This Part is No Longer Available
8 23-71694         BUSHING-Bearing Plate 1   This Part is No Longer Available
9 12-68614         WASHER-Bearing Plate 1   This Part is No Longer Available
10 10-79209         SCREW-Bearing 2   This Part is No Longer Available
11 68606         ARMATURE 1   This Part is No Longer Available
12 NSS         NOT SOLD SEPERATE, SHOE-Pole-Field Coil (Delco Remy #810601) 4
This Part is not sold separately 1
13 NSS         NOT SOLD SEPERATE, SCREW (Delco Remy #1968396) 4
This Part is not sold separately 1
14 NSS         NOT SOLD SEPERATE, GROMMET-Field Coil (Delco Remy #1846097) 1
This Part is not sold separately 1
15 NSS         NOT SOLD SEPERATE, FIELD COIL ASSY (Delco Remy #1970467) 1
This Part is not sold separately 1
16 NSS         NOT SOLD SEPERATE, WASHER-Leather (Delco Remy #1985617) 1
This Part is not sold separately 1
17 79211         FRAME-Commutator End 1   This Part is No Longer Available
18 NSS         NOT SOLD SEPERATE, BOLT-- (Delco Remy #1939970) 1
This Part is not sold separately 1
19 33284         HOLDER-Insulated-Field Frame Brush 2   This Part is No Longer Available
20 33283         HOLDER-Field Frame Brush Ground 2   This Part is No Longer Available
21 33270         BRUSH-Field Frame 4

22 NSS         NOT SOLD SEPERATE, SCREW-Brush Lead (Delco Remy #1967747) 2
This Part is not sold separately 1
22 NSS         NOT SOLD SEPERATE, SCREW-Brush Lead (Delco Remy #443527) 2
This Part is not sold separately 1
23 33294         SUPPORT 2   This Part is No Longer Available
24 24-33285         SPRING-Field Frame Brush 4   This Part is No Longer Available
25 NSS         NOT SOLD SEPERATE, PIN-Dowel (Delco Remy #1985696) 1
This Part is not sold separately 1
26 33297         LEVER-Shift 1   This Part is No Longer Available
27 NSS         NOT SOLD SEPERATE, STUD-Shift Lever (Delco Remy #1814529) 1
This Part is not sold separately 1
28 12-68615         WASHER-Shift Lever Stud 1   This Part is No Longer Available
29 11-26484         NUT (.312-18)-Shift Lever Stud 1

30 33317         PLUNGER 1   This Part is No Longer Available
31 17-79207         PIN-Plunger to Shift Lever 1   This Part is No Longer Available
32 24-46889         SPRING-Plunger Return 1   This Part is No Longer Available
33 NSS         NOT SOLD SEPERATE, SCREW-Solenoid (Delco Remy #132255) 2
This Part is not sold separately 1
34 89-18080   676-9-15102 700-72460   SOLENOID 1
