| Note: PARTS LISTED NSS (NOT SOLD SEPARATELY) SHOULD BE ORDERED FROM A LOCAL SUPPLIER USING THE APPROPRIATE MANUFACTURER'S PART NUMBER. |
Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

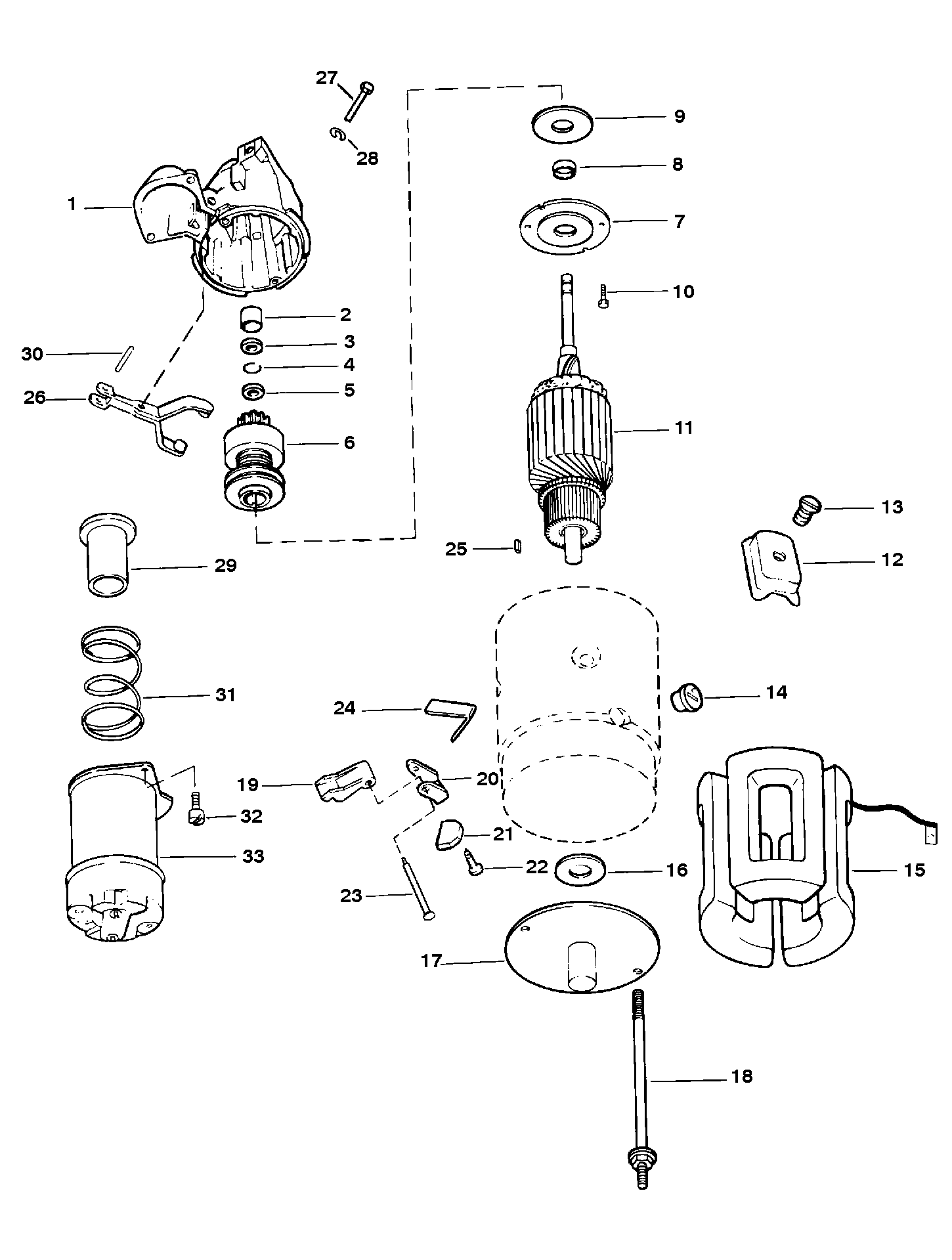

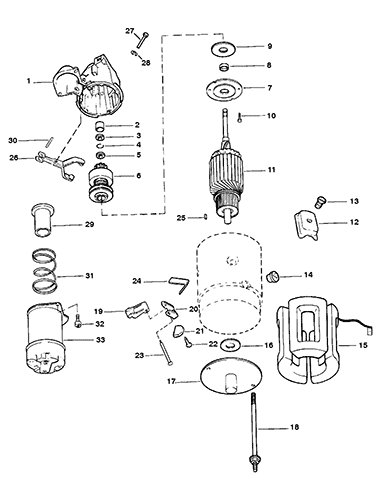

50-863007A1 |
|
|
|
|
STARTER ASSEMBLY |
1 |
50-99418A2 |
4 |
| 1 |
75666 |
|
|
|
|
HOUSING ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 2 |
23-33369 |
|
|
|
|
BUSHING-Drive End Housing |
1 |
|
This Part is No Longer Available |
| 3 |
23-809457 |
|
|
|
|
COLLAR-- st |
1 |
814474 |
This Part is No Longer Available |
| 4 |
53-33290 |
|
|
|
|
RING-Retaining-Pinion Stop Collar |
1 |
|
|
| 5 |
33291 |
|
|
|
|
COLLAR-Pinion Stop |
1 |
|
|
| 6 |
79205T |
|
|
|
|
DRIVE ASSEMBLY-Clutch |
1 |
79205 |
This Part is No Longer Available |
| 7 |
79396 |
|
|
|
|
PLATE-Bearing |
1 |
|
This Part is No Longer Available |
| 8 |
23-71694 |
|
|
|
|
BUSHING-Bearing Plate |
1 |
|
This Part is No Longer Available |
| 9 |
12-68614 |
|
|
|
|
WASHER-Bearing Plate |
1 |
|
This Part is No Longer Available |
| 10 |
10-79209 |
|
|
|
|
SCREW-Bearing |
2 |
|
This Part is No Longer Available |
| 11 |
75665 |
|
|
|
|
ARMATURE |
1 |
|
This Part is No Longer Available |
| 12 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SHOE-Pole-Field Coil (Delco Remy #810601) |
4 |
|
This Part is not sold separately 1 |
| 13 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SCREW (Delco Remy #1968396) |
4 |
|
This Part is not sold separately 1 |
| 14 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, GROMMET-Field Coil (Delco Remy #1846097) |
1 |
|
This Part is not sold separately 1 |
| 15 |
75664 |
|
|
|
|
FIELD COIL ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 16 |
12-33258 |
|
|
|
|
WASHER-Leather-Commutator End Frame |
1 |
|
This Part is No Longer Available |
| 17 |
79211 |
|
|
|
|
FRAME-Commutator End |
1 |
|
This Part is No Longer Available |
| 18 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, BOLT-- (Delco Remy #1941111) |
1 |
|
This Part is not sold separately 1 |
| 18 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, BOLT-- (Delco Remy #1939970) |
1 |
|
This Part is not sold separately 1 |
| 19 |
33284 |
|
|
|
|
HOLDER-Insulated-Field Frame Brush |
2 |
|
This Part is No Longer Available |
| 20 |
33283 |
|
|
|
|
HOLDER-Field Frame Brush Ground |
2 |
|
This Part is No Longer Available |
| 21 |
33270 |
|
|
|
|
BRUSH-Field Frame |
4 |
|
|
| 22 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SCREW-Brush Lead (Delco Remy #1967747) |
2 |
|
This Part is not sold separately 1 |
| 22 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SCREW-Brush Lead (Delco Remy #443527) |
2 |
|
This Part is not sold separately 1 |
| 23 |
33294 |
|
|
|
|
SUPPORT |
2 |
|
This Part is No Longer Available |
| 24 |
24-33285 |
|
|
|
|
SPRING-Field Frame Brush |
4 |
|
This Part is No Longer Available |
| 25 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, PIN-Dowel (Delco Remy #1985696) |
1 |
|
This Part is not sold separately 1 |
| 26 |
71698 |
|
|
|
|
LEVER-Shift |
1 |
|
This Part is No Longer Available |
| 27 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, STUD-Shift Lever (Delco Remy #1945804) |
1 |
|
This Part is not sold separately 1 |
| 28 |
53-33354 |
|
|
|
|
RING-Retaining-Stud |
1 |
|
This Part is No Longer Available |
| 29 |
33317 |
|
|
|
|
PLUNGER-Shift Lever |
1 |
|
This Part is No Longer Available |
| 30 |
17-79207 |
|
|
|
|
PIN-Plunger to Shift Lever |
1 |
|
This Part is No Longer Available |
| 31 |
24-46889 |
|
|
|
|
SPRING-Plunger Return |
1 |
|
This Part is No Longer Available |
| 32 |
NSS |
|
|
|
|
NOT SOLD SEPERATE, SCREW (Delco Remy #9413260) |
2 |
|
This Part is not sold separately 1 |
| 33 |
89-18080 |
|
676-9-15102 |
700-72460 |
|
SOLENOID |
1 |
|
|
