525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Transmission (Plug-In)

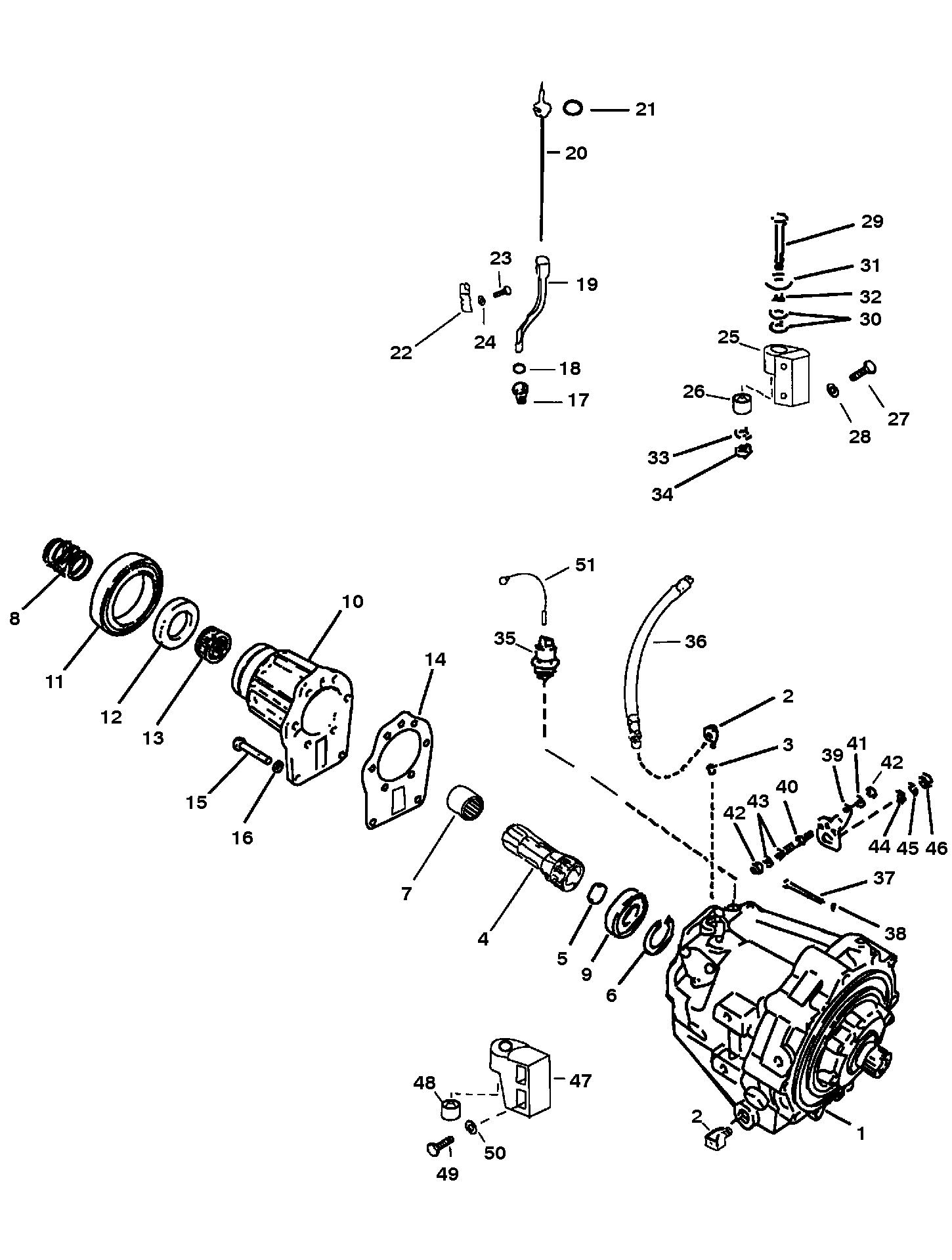

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 14746A1         TRANSMISSION ASSEMBLY 1   This Part is No Longer Available
2 22-47629         ELBOW-Transmission to Oil Hose 2

3 22-88517         ADAPTOR-Reducing-Transmission Elbow 1

4 47339A4         COUPLING ASSEMBLY-Engine 1
No longer made, limited availability
5 19-47463         PLUG-Expansion-Engine Coupling 1

6 53-47469         RING-Snap-Ball Bearing to Engine Coupling 1

7 23-47471T         BEARING-Engine Coupling 1 23-47471
8 24-47755         SPRING-Guide-Engine Coupling 1

9 30-47470         BEARING-Ball 1

10 47333A1         HOUSING ASSEMBLY-Bearing Support 1   This Part is No Longer Available
11 25-47756         O RING-Bearing Support Housing 1

12 26-47465         SEAL-Oil-Bearing Support Housing 1

13 31-47468T         BEARING-Needle-Bearing Support Housing 1 31-47468 This Part is No Longer Available
14 27-47903         GASKET-Bearing Support Housing 1
14
15 10-47462         SCREW (.437-14 x 1.250) 8

16 13-32993         LOCKWASHER (.437)-Support Housing Screw 8

17 48461         ADAPTOR-Oil Level Gauge-Tube to Transmission 1   This Part is No Longer Available
18 25-48462         O RING-Oil Level Tube Adaptor 1

19 48463         TUBE-Oil Level Gauge 1   This Part is No Longer Available
20 48464         DIPSTICK-Oil Level 1   This Part is No Longer Available
21 25-35276         O RING-Oil Level Gauge 1

22 48466         BRACKET-Mounting-Oil Level Gauge Tube 1   This Part is No Longer Available
23 10-32417         SCREW (.250-28 x .625) 2

24 13-26992         LOCKWASHER (.250)-Mounting Bracket Screw 2

25 47340A1         BRACKET ASSEMBLY-Transmission Mount (PORT) 1

26 35852         MOUNT-Transmission Mount Bracket 1

27 10-47462         SCREW (.437-14 x 1.250)-Bracket to Transmission 2

28 13-32993         LOCKWASHER (.437)-Mount Bracket Screw 2

29 10-47467         SCREW (.625-18 x 5.500)-Tailstock to Transom Plate 2

30 12-47466         WASHER-Tailstock Screws (NEOPRENE) 4

31 12-47475         WASHER-Tailstock Screws 2

32 13-34846         LOCKWASHER-Tailstock Screws 2

33 12-33171         WASHER-Tailstock Screws 2

34 11-22339         NUT (.625-18)-Tailstock Screws 2

35 87-88031         SWITCH-Temperature 1

36 32-475166         HOSE ASSEMBLY (30.00 In.)-Transmission to Oil Cooler 2

37 10-60179         SCREW (.437-14 x 3.500)-Transmission to Engine 6

38 13-32993         LOCKWASHER (.437)-Transmission Screw 6

39 12128         LEVER-Shift-Transmission 1

40 16-63335         STUD-Shift Lever 1   This Part is No Longer Available
41 12-39143         WASHER-Shift Lever Stud 1

42 11-8267089         NUT (.250-28)-Shift Lever Stud 2 11-20361
43 12-29245         WASHER-Shift Lever Stud 2

44 12-20722         WASHER-Transmission Lever Stud 1   This Part is No Longer Available
45 13-26993         LOCKWASHER (.312)-Transmission Lever Stud 1

46 11-22053         NUT (.312-24)-Transmission Lever Stud 1

47 47334A2         BRACKET ASSEMBLY-Mount (STARBOARD) 1   This Part is No Longer Available
48 35852         MOUNT-Transmission Mount Bracket 1

49 10-47462         SCREW (.437-14 x 1.250)-Bracket to Transmission 2

50 13-32993         LOCKWASHER (.437)-Mount Bracket Screw 2

51 84-88032A5         CABLE ASSEMBLY (TAN/BLUE) 1

51 84-86322A22         CABLE ASSEMBLY (BLACK) 1   This Part is No Longer Available
- 27-817118A90         Gasket Set -   This Part is No Longer Available
- 27-827014A98         Gasket Set - 27-827014A92
