525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Audio Warning System

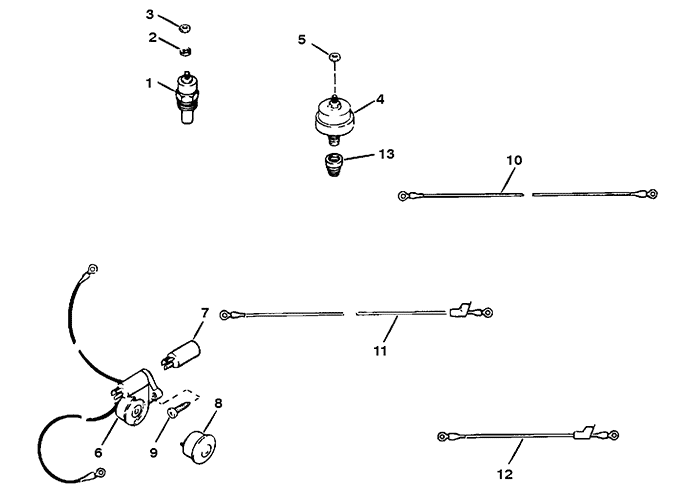

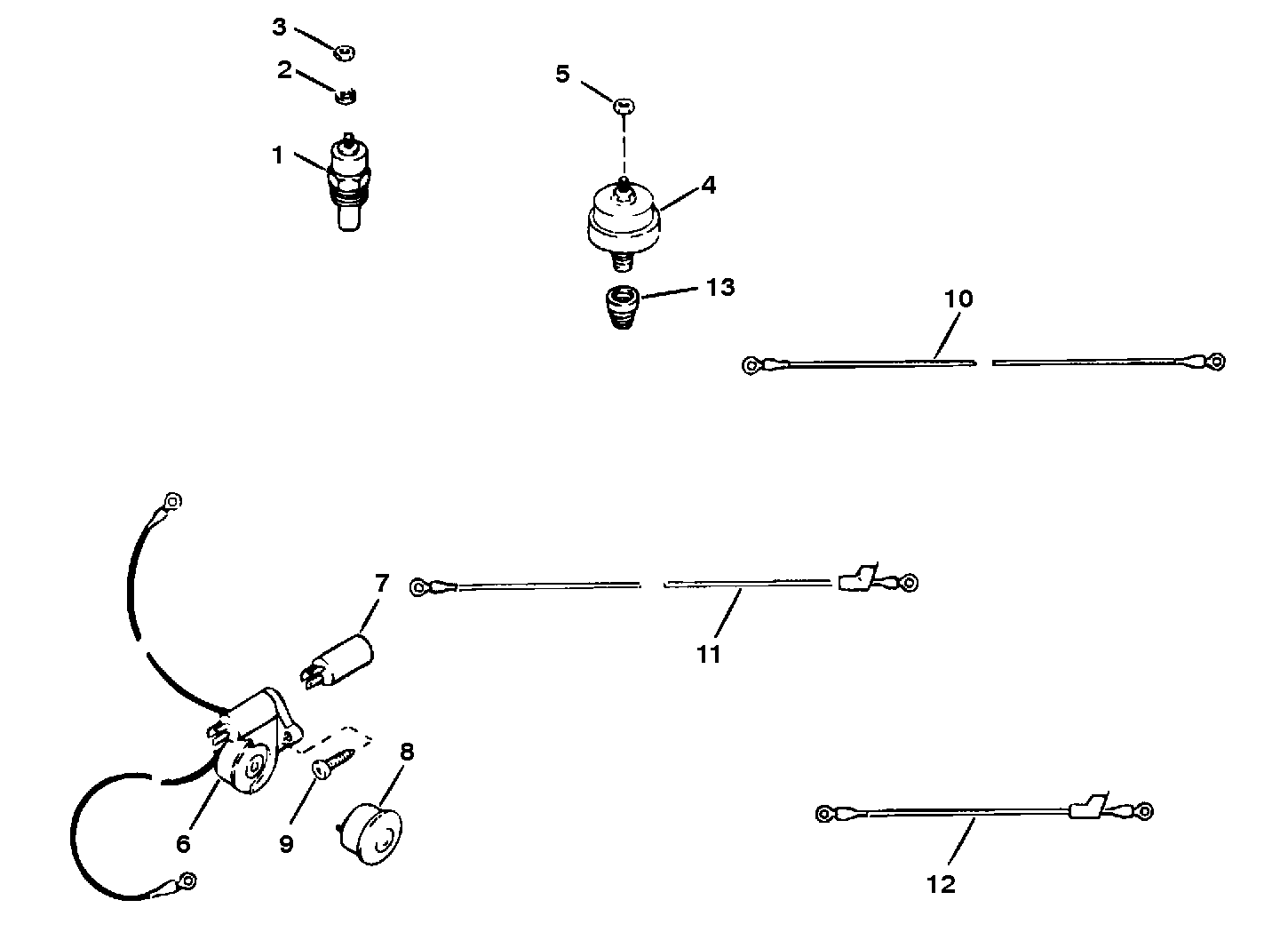

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Alternator Assembly (Mando AR-150)
- Alternator Assembly (Prestolite # 8EM2003KA)
- Audio Warning System
- Crankshaft and Pistons and Conn. Rods
- Cylinder Block and Camshaft
- Cylinder Head and Rocker Cover
- Distributor and Ignition Components
- Drivehshaft and Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Model)
- Flywheel Housing (Transmission Models)
- Fuel Pump and Carburetor and Linkage
- Fuel Pump and Fuel Filter
- Intake Manifold and Supercharger
- Mount Plates
- Oil Cooler (Transmission)
- Oil Cooler and Oil Filter and Adaptor
- Oil Pan and Oil Pump Assy (0D456000 - 0D725808)
- Oil Pan and Oil Pump Assy (0D763746 - 0F348963)
- Power Steering Components
- Reservoir Bottle
- Sea Water Pump Assembly (0D456000 - 0D763745)
- Sea Water Pump Assembly (0D763746 - 0F348963)
- Shift Bracket
- Starter and Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-99418A2)
- Thermostat Housing Assembly
- Transmission (Driveline)
- Transmission (Plug-In)
- Wiring and Electrical Components (0D456000 - 0D763831)
- Wiring and Electrical Components (0D763871 - 0F348963)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48952 | SENDER ASSEMBLY-Water Temperature | 1 | ||||||
| 2 | 13-26996 | LOCKWASHER (#10)-Temperature Switch | 1 | ||||||
| 3 | 11-45076 | NUT (#10-32)-Temperature Switch | 1 | ||||||
| 4 | 87-805605A1 | SWITCH ASSEMBLY-Pressure | 1 | ||||||
| 5 | 11-68219 | NUT (#10-32)-Pressure Switch Terminal | 1 | ||||||
| 6 | 816492A14 | HOUSING KIT-Buzzer | 1 | 86047A11 | Please note - this is the new style buzzer, not horn & timer | ||||
| 7 | 816492A14 | TIMER-Temperature Buzzer | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | ||||
| 8 | 68878A6 | HORN ASSEMBLY | 1 | No longer made, limited availability | |||||
| 9 | 10-69013 | SCREW (#10-16 x .875)-Horn Attaching | 2 | ||||||
| 10 | 84-86044A4 | CABLE ASSEMBLY-Tan/Blue (36.00 In.) | 1 | This Part is No Longer Available | |||||
| 11 | 84-88032A6 | CABLE ASSEMBLY-Tan/Blue (20.00 In.) | 1 | This Part is No Longer Available | |||||
| 12 | 84-86322A8 | CABLE ASSEMBLY-Black (8.00 In.) | 1 | This Part is No Longer Available | |||||
| 13 | 22-48556 | REDUCER | 1 |
