525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Crankshaft and Pistons and Conn. Rods

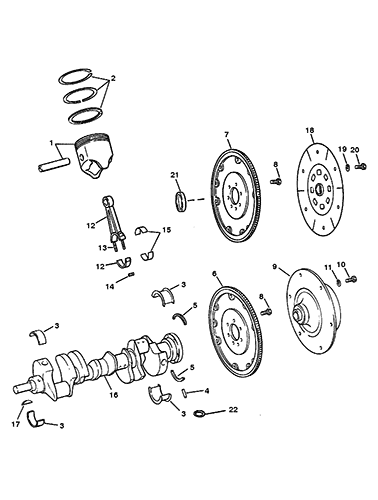

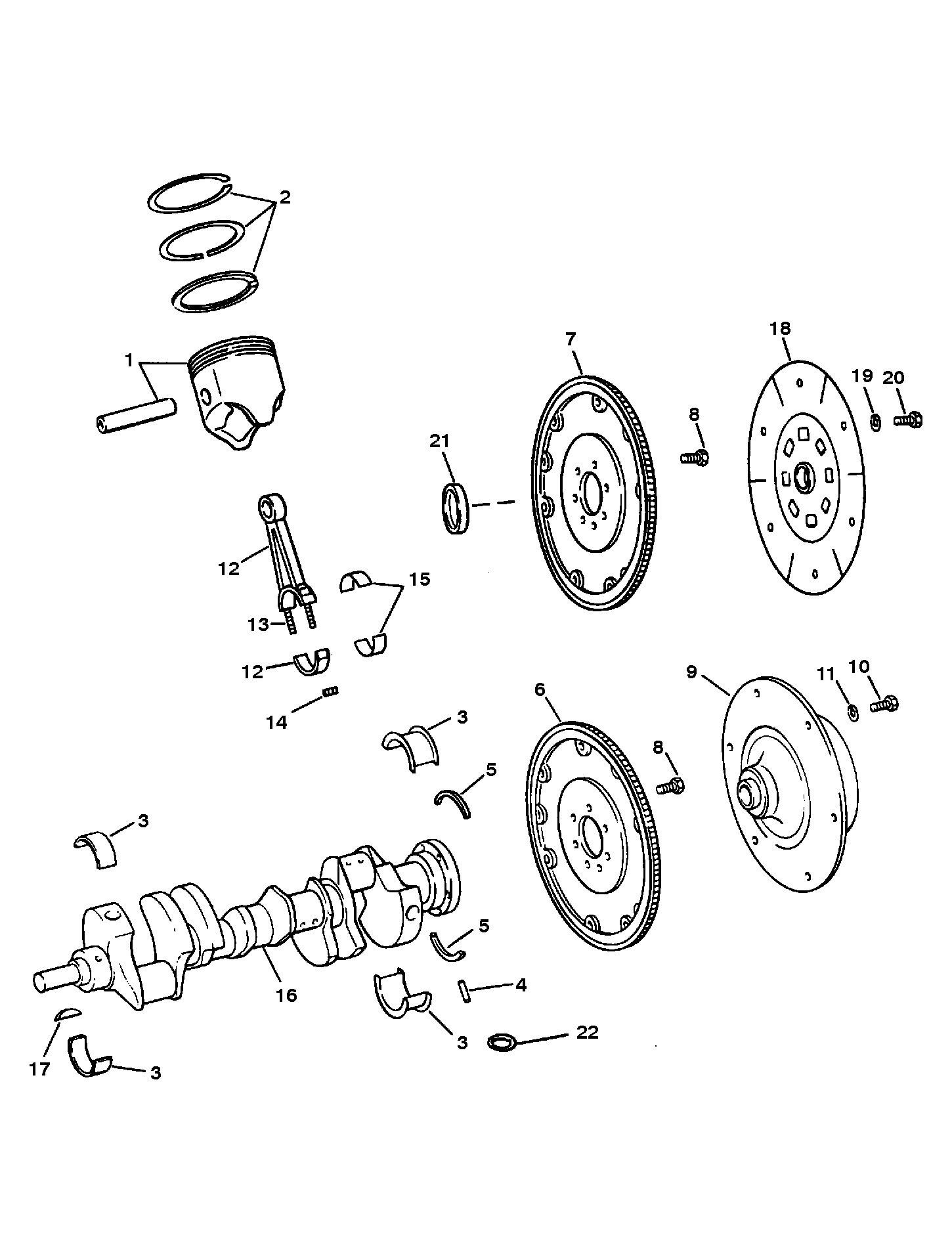

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 798-817114         PISTON ASSEMBLY (STANDARD) 8   This Part is No Longer Available
2 39-67127         RING KIT-Piston (STANDARD) 8

1 798-817114T1         PISTON ASSEMBLY (.030 O.S.) 8 798-817114A1 This Part is No Longer Available
2 39-848350030         RING KIT-Piston (.030 O.S.) 1

3 23-818473001         BEARING SET (STANDARD) 1 23-818473
3 23-818474         BEARING SET (.001 U.S.) AR
3
3 23-818475         BEARING SET (.002 U.S.) AR
3
3 818476001         BEARING SET (.010 U.S.) AR 23-818476 3
3 23-818477         BEARING SET (.020 U.S.) AR
3
4 17-843378         PIN-Dowel (.250 Dia.) 1 17-35312
5 26-14756         SEAL-Oil 1
(S/N: 0D456000 - 0D725808) 14,5
5 26-811554         SEAL-Oil 1
(S/N: 0D763746 - 0F348963) 14,6
6 230-6540         FLYWHEEL 1
(S/N: 0D456000 - 0D725808) 5
6 230-843374T1         FLYWHEEL 1 230-811561 (S/N: 0D763746 - 0F348963) 6
7 230-8115631         FLYWHEEL 1 230-811563 (GEN V DRIVELINE OR TRANSMISSION MODELS)
7 230-5534         FLYWHEEL 1   This Part is No Longer Available (MARK IV DRIVELINE OR TRANSMISSION MODELS)
8 10-845757         SCREW (.437-20 x 1.00) 6 10-49845
9 861523A9         COUPLING ASSEMBLY-Engine 1 18311A17 (BRAVO MODELS ONLY)
10 10-14883         SCREW (.375-16 x 1.125) 6

11 12-20572         WASHER 6

NS 22-49099         FITTING-Grease 2

12 614-8M0084554         CONNECTING ROD ASSEMBLY 8 614-9641
13 10-19234         BOLT-Conn Rod Cap 16

14 11-37493         NUT-Conn Rod Cap Bolt 16
No longer made, limited availability
15 23-85726001         BEARING SET (STANDARD) 8 23-85726
15 23-85727         BEARING SET (.001 U.S.) AR
3
15 23-85728         BEARING SET (.002 U.S.) AR   This Part is No Longer Available 3
15 23-85691         BEARING SET (.010 U.S.) AR
3
15 23-85729         BEARING SET (.020 U.S.) AR
3
16 429-5880         CRANKSHAFT 1   This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5
16 429-811552         CRANKSHAFT 1
(S/N: 0D763746 - 0F348963) 6
17 28-845607         KEY-Crankshaft 2 28-811558 (S/N: 0D456000 - 0D725808) 5
17 28-34466         KEY-Crankshaft 2
(S/N: 0D763746 - 0F348963) 6
18 8M0051206         DRIVE PLATE 1 816618 (TRANSMISSION MODELS)
19 10-35091         SCREW (.375-16 x 1.00) 6
(TRANSMISSION MODELS)
20 13-35048         LOCKWASHER (.375) 6
(TRANSMISSION MODELS)
21 23-49126         BUSHING-Pilot-Crankshaft 1
(DRIVELINE MODELS ONLY)
22 25-69756         O RING (#5 Bearing Cap Oil Hole) 1 25-811528 (S/N: 0D763746 - 0F348963) 6
- 27-817118A90         Gasket Set -   This Part is No Longer Available
- 27-827014A98         Gasket Set - 27-827014A92
