| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

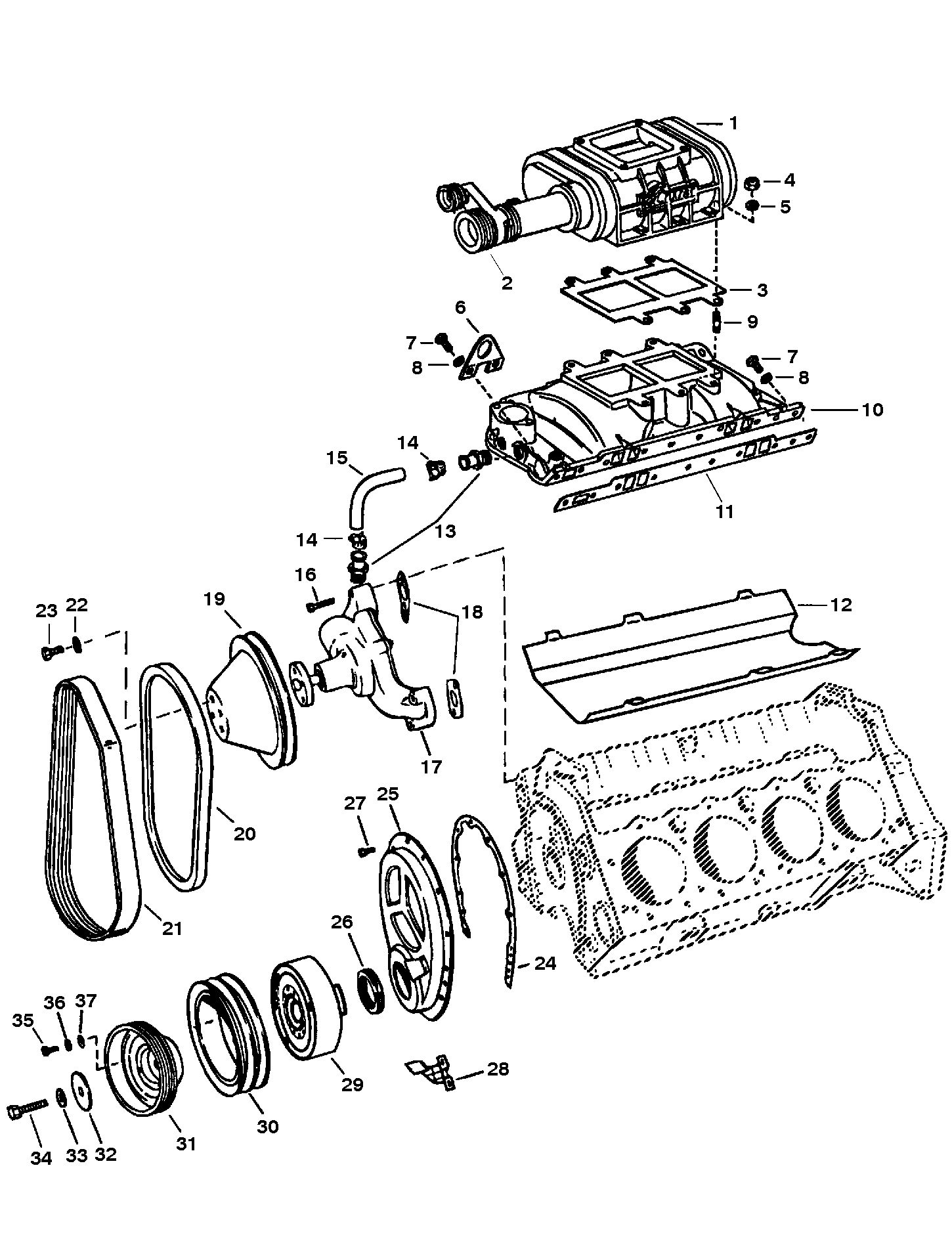

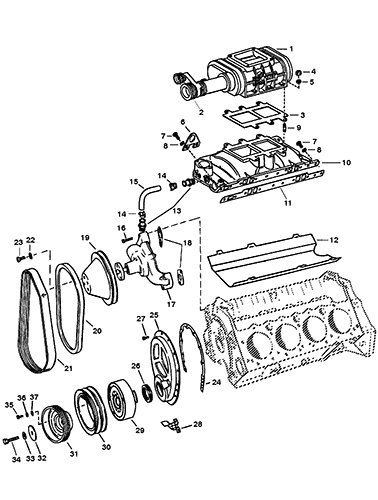

| 1 |
817116A3 |
|
|
|
|
SUPERCHARGER KIT |
1 |
817116A1 |
|
| 2 |
8477111 |
|
|
|
|
PULLEY-Upper Driven |
1 |
|
This Part is No Longer Available |
| 3 |
27-8171181 |
|
|
|
|
GASKET-Intake to Supercharger |
1 |
|
14 |
| 4 |
11-28770 |
|
|
|
|
NUT (.312-24) |
6 |
|
|
| 5 |
12-70132 |
|
|
|
|
WASHER |
6 |
|
|
| 6 |
54-64628 |
|
|
|
|
LIFTING EYE |
2 |
54-646281 |
|
| 7 |
10-812567 |
|
|
|
|
BOLT (.375-16 x 1.625) |
8 |
|
|
| 7 |
10-815687 |
|
|
|
|
BOLT (.375-16 x 1.250) |
7 |
|
|
| 7 |
10-842787 |
|
|
|
|
SCREW (.375-16 x 2.00) |
1 |
10-47432 |
|
| 8 |
12-34931 |
|
|
|
|
WASHER |
16 |
|
|
| 9 |
16-33111 |
|
|
|
|
STUD |
6 |
|
This Part is No Longer Available |
| 10 |
848582T02 |
|
|
|
|
MANIFOLD-Intake |
1 |
817115 |
|
| 11 |
27-8181881 |
|
|
|
|
GASKET-Intake Manifold |
2 |
27-818188 |
14 |
| 12 |
845756T |
|
|
|
|
SHIELD-Oil Intake |
1 |
816073 |
|
| 13 |
22-806242 |
|
|
|
|
CONNECTOR-Intake Pump/Intake Manifold |
2 |
|
|
| 14 |
54-815504412 |
|
|
|
|
CLAMP-By Pass Hose |
2 |
|
|
| 15 |
32-805987 |
|
|
|
|
HOSE-By Pass-Water Pump/Intake Manifold |
1 |
|
|
| 16 |
10-805611 |
|
|
|
|
SCREW (.375-16 x 1.750)-Water Pump to Cylinder Block |
4 |
10-811574 |
|
| 17 |
8504541 |
|
|
|
|
PUMP ASSEMBLY-Water |
1 |
811573 |
|
| 18 |
27-49110 |
|
|
|
|
GASKET-Water Pump Mounting |
2 |
|
14 |
| 19 |
52349 |
|
|
|
|
PULLEY-Water Pump (BLACK) |
1 |
|
|
| 19 |
523491 |
|
|
|
|
PULLEY-Water Pump (BLUE) |
1 |
|
This Part is No Longer Available |
| 20 |
57-816034Q |
|
|
|
|
V BELT-Alternator Drive |
1 |
57-816034 |
|
| 21 |
57-817113 |
|
|
|
|
BELT-Serpentine |
1 |
|
|
| 22 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER (.312)-Water Pump Pulley Screw |
4 |
|
|
| 23 |
10-47277 |
|
|
|
|
SCREW (.312-24 x .750)-Pulley to Water Pump |
4 |
|
|
| 24 |
27-54529 |
|
676-9-61601 |
700-30440 |
|
GASKET-Crankcase Cover |
1 |
|
(S/N: 0D456000 - 0D725808) 14,5 |
| 24 |
27-811572 |
|
|
|
|
GASKET-Crankcase Cover |
1 |
|
(S/N: 0D763746 - 0F348963) 14,6 |
| 25 |
66215 |
|
|
|
|
COVER ASSEMBLY-Crankcase |
1 |
|
This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 |
| 25 |
811570 |
|
|
|
|
COVER ASSEMBLY-Crankcase |
1 |
|
This Part is No Longer Available (S/N: 0D763746 - 0F348963) 6 |
| 26 |
26-8219471 |
|
|
|
|
SEAL-Oil-Crankcase Cover |
1 |
|
14 |
| 27 |
10-35366 |
|
|
|
|
SCREW (.250-20 x .562)-Crankcase Cover to Block |
10 |
|
|
| 28 |
59966 |
|
|
|
|
POINTER-Timing |
1 |
|
|
| 29 |
72605T1 |
|
|
|
|
DAMPER |
1 |
726051 |
This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 |
| 29 |
845625T2 |
|
|
|
|
DAMPER |
1 |
811556 |
(S/N: 0D763746 - 0F348963) 6 |
| 30 |
52181 |
|
|
|
|
PULLEY-Harmonic Balancer |
1 |
|
(S/N: 0D456000 - 0D725808) 5 |
| 31 |
817112 |
|
|
|
|
PULLEY-Crankshft (BLACK) |
1 |
|
This Part is No Longer Available (S/N: 0D456000 TO 0D725808) 5 |
| 31 |
8219811 |
|
|
|
|
PULLEY-Crankshaft (BLUE) |
1 |
|
This Part is No Longer Available (S/N: 0D763746 - 0F348963) 6 |
| 32 |
12-49103 |
|
|
|
|
WASHER-Pulley and Balancer Screw |
1 |
|
|
| 33 |
13-14759 |
|
|
|
|
LOCKWASHER-Pulley and Harmonic Balancer Screw |
1 |
|
This Part is No Longer Available |
| 34 |
10-817125 |
|
|
|
|
SCREW (.500-20 x 4.00) |
1 |
|
This Part is No Longer Available (S/N: 0D456000 - 0D725808) 5 |
| 34 |
10-845627 |
|
|
|
|
SCREW (.500-20 x 1.375) |
1 |
10-811559 |
(S/N: 0D763746 - 0F348963) 6 |
| 35 |
10-72094 |
|
|
|
|
SCREW (.375-16 x 3.750)-Pulley |
3 |
|
|
| 36 |
13-35048 |
|
|
|
|
LOCKWASHER (.375)-Pulley Screw |
3 |
|
|
| 37 |
12-20553 |
|
|
|
|
WASHER-Pulley Screw |
3 |
|
|
| - |
27-817118A90 |
|
|
|
|
Gasket Set |
- |
|
This Part is No Longer Available |
| - |
27-827014A98 |
|
|
|
|
Gasket Set |
- |
27-827014A92 |
|
