525 SC (Gen 5) GM 454 V-8 1992-1995 - Serial 0D456000 Thru 0F348963 - Flywheel Housing (Bravo Plug-In Model)

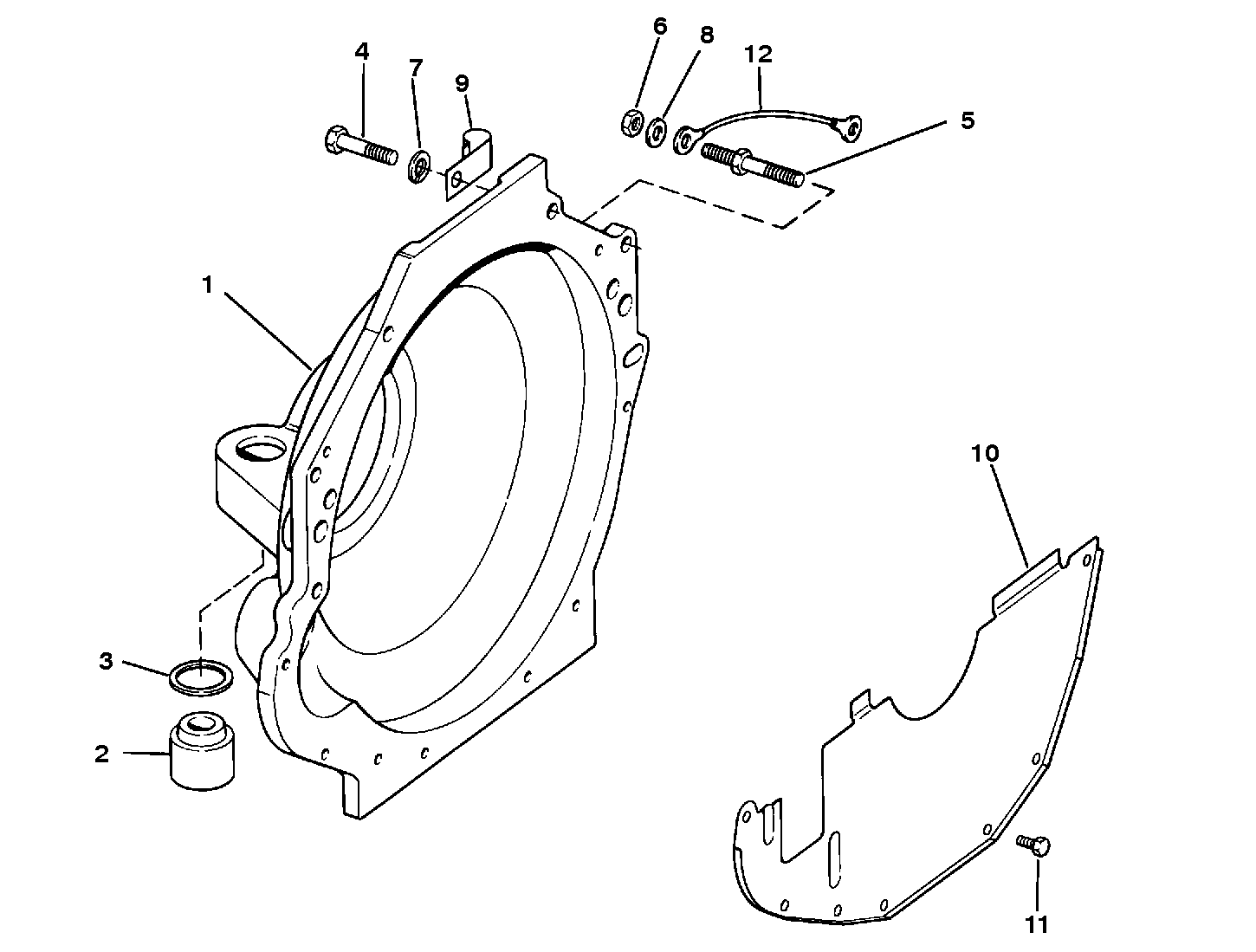

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 865657A04         HOUSING ASSEMBLY-Flywheel 1 12675A7
2 865330A02         MOUNT-Rubber-Flywheel Housing 2 88791
3 23-99322     700-21050   SPACER-Rubber Mount-Flywheel Housing 2

4 10-37612         SCREW (.375-16 x 1.250)-Flywheel Housing Attaching 4

4 10-32132         SCREW (.375-16 x 1.750)-Flywheel Housing Attaching 1

5 16-64066         STUD (2.750 In.)-Flywheel Housing Attaching 2

6 11-32219         NUT (.375-16)-Flywheel Housing Attaching Stud 2

7 13-35048         LOCKWASHER (.375)-Flywheel Housing Screw 8

8 12-20572         WASHER-Special (.375)-Housing Screw 1

9 54-78945         J CLAMP-Flywheel Housing Stud 2

10 13930A3         COVER KIT 1   This Part is No Longer Available (S/N: 0D456000 - 0D725505) 5
10 807260A2         COVER KIT-With Gasket 1 818719A3 (S/N: 0D725506 - 0F348963) 6
11 10-32773         SCREW (.250-20 x .875)-Cover to Flywheel Housing 7

12 84-62826A6         CABLE ASSEMBLY (Black) 2
