| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |
817119A4 |
620-3186M |
676-9-19101 |
|
|

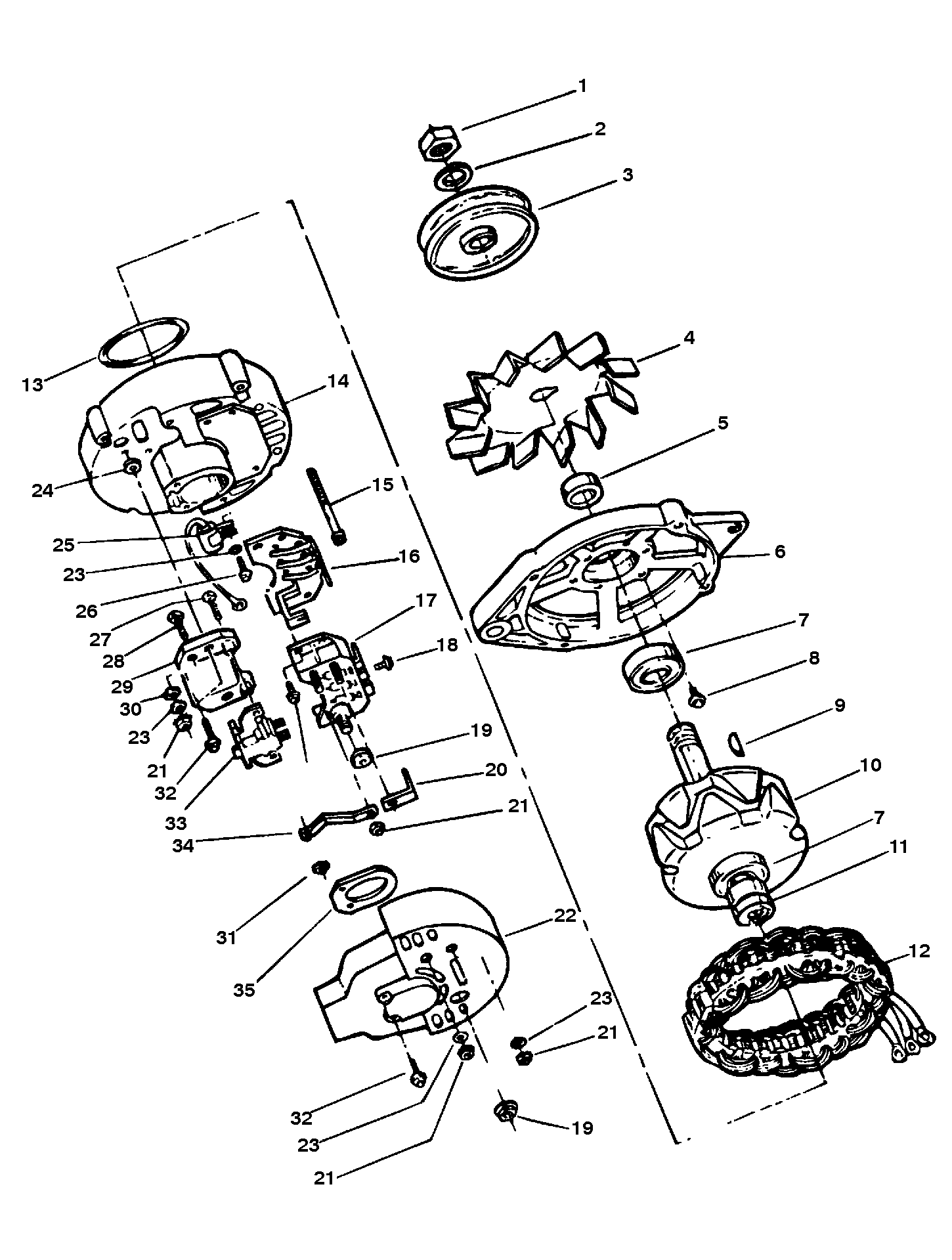

ALTERNATOR ASSEMBLY (55 AMP) |
1 |
92497A3 |
4 |
| 1 |
390-7027 |
|
|
|
|
NUT |
1 |
|
This Part is No Longer Available |
| 2 |
390-7033 |
|
|
|
|
WASHER |
1 |
|
This Part is No Longer Available |
| 3 |
390-8637 |
|
|
|
|
PULLEY |
1 |
|
This Part is No Longer Available |
| 4 |
390-7004 |
|
|
|
|
FAN |
1 |
|
|
| 5 |
813969 |
|
|
|
|
SPACER |
1 |
|
This Part is No Longer Available |
| 6 |
813961 |
|
|
|
|
HOUSING-Front |
1 |
|
This Part is No Longer Available |
| 7 |
390-7005 |
|
|
|
|
BEARING-Ball |
2 |
|
This Part is No Longer Available |
| 8 |
10-813978A1 |
|
|
|
|
SCREW KIT |
4 |
|
This Part is No Longer Available |
| 9 |
390-7034 |
|
|
|
|
KEY |
1 |
|
This Part is No Longer Available |
| 10 |
813962 |
|
|
|
|
ROTOR ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 11 |
390-7014 |
|
|
|
|
RING-Slip |
1 |
|
This Part is No Longer Available |
| 12 |
813963 |
|
|
|
|
STATOR ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 13 |
390-7007 |
|
|
|
|
RETAINER |
1 |
|
This Part is No Longer Available |
| 14 |
813964 |
|
|
|
|
HOUSING-Rear |
1 |
|
This Part is No Longer Available |
| 15 |
10-813975 |
|
|
|
|
BOLT |
4 |
|
This Part is No Longer Available |
| 16 |
813966 |
|
|
|
|
DIODE BRIDGE |
1 |
|
This Part is No Longer Available |
| 17 |
813965 |
|
|
|
|
DIODE FIELD |
1 |
|
This Part is No Longer Available |
| 18 |
10-813981 |
|
|
|
|
SCREW |
3 |
|
This Part is No Longer Available |
| 19 |
11-813976 |
|
|
|
|
NUT |
2 |
|
This Part is No Longer Available |
| 20 |
813973 |
|
|
|
|
STRAP |
1 |
|
This Part is No Longer Available |
| 21 |
390-7021 |
|
|
|
|
NUT |
5 |
|
This Part is No Longer Available |
| 22 |
813971 |
|
|
|
|
COVER ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 23 |
12-813984 |
|
|
|
|
WASHER |
5 |
|
This Part is No Longer Available |
| 24 |
390-7022 |
|
|
|
|
WASHER |
2 |
|
This Part is No Longer Available |
| 25 |
813972 |
|
|
|
|
CAPACITOR |
1 |
|
This Part is No Longer Available |
| 26 |
10-813982 |
|
|
|
|
SCREW |
1 |
|
This Part is No Longer Available |
| 27 |
10-813979 |
|
|
|
|
SCREW |
2 |
|
This Part is No Longer Available |
| 28 |
10-813983 |
|
|
|
|
SCREW |
2 |
|
This Part is No Longer Available |
| 29 |
813974 |
|
|
|
|
REGULATOR-Voltage |
1 |
|
This Part is No Longer Available |
| 30 |
12-813985 |
|
|
|
|
WASHER |
2 |
|
This Part is No Longer Available |
| 31 |
11-813977 |
|
|
|
|
NUT |
2 |
|
This Part is No Longer Available |
| 32 |
10-813980 |
|
|
|
|
SCREW |
8 |
|
This Part is No Longer Available |
| 33 |
813968 |
|
|
|
|
BRUSH ASSEMBLY |
1 |
|
This Part is No Longer Available |
| 34 |
813967 |
|
|
|
|
STRAP (D+) |
1 |
|
This Part is No Longer Available |
| 35 |
27-813970 |
|
|
|
|
GASKET-Felt |
1 |
|
This Part is No Longer Available |
