250XS 3.0L DFI - Serial 0T651945 Thru 0T818042 - Air Compressor Components

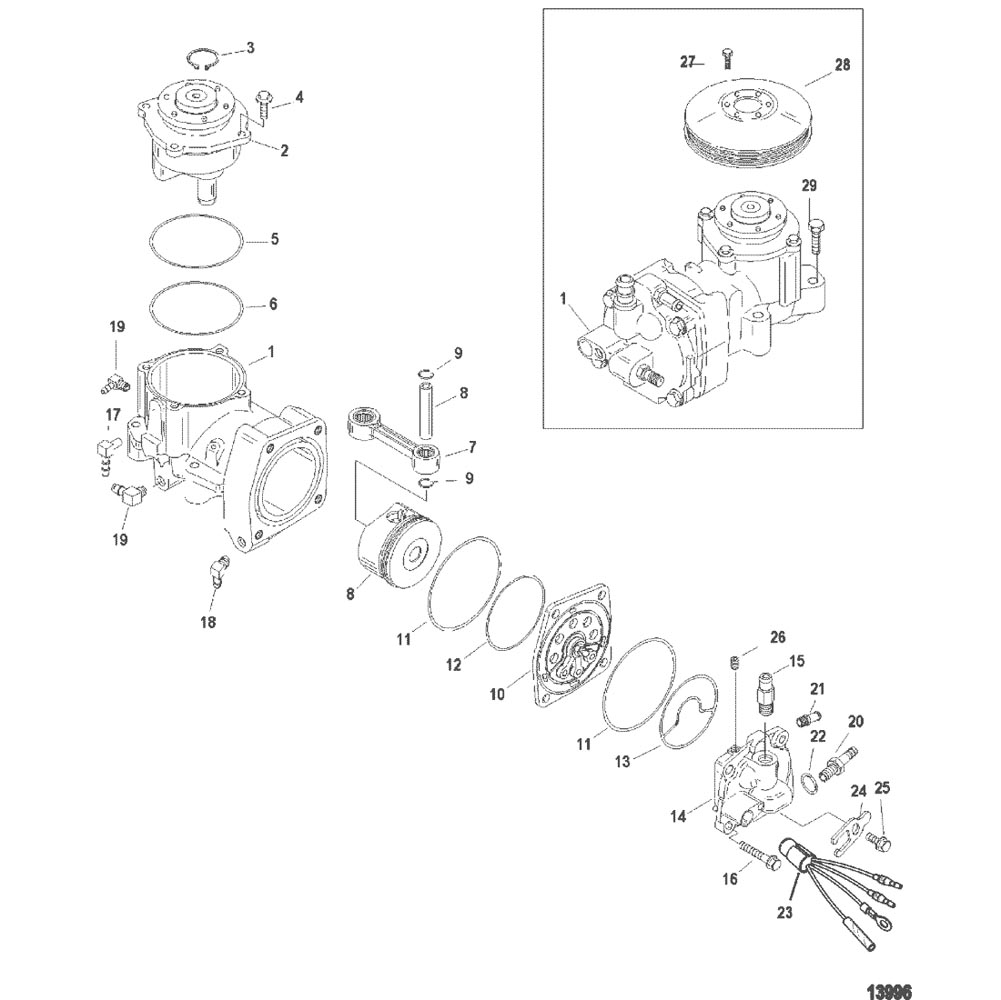

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Note: Item #16 - Torque Screws To 240 in-lb, Plus 90 Degree Turn.(20 ft-lb +90 Deg./27.1 N-m +90 Deg.)
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0060051         COMPRESSOR ASSEMBLY, Air 1 828123T21
1 8M0060051         COMPRESSOR ASSEMBLY, Air 1 828123T24
2 1173-8M0050792         END CAP ASSEMBLY 1 828131A8 No Longer Available
3 NSS         Snap Ring 1 Not Sold Separate
4 10-82130020         SCREW, (M6 x 20) 4
5 25-832804         O-RING, (2.739 x .070) 1
5 25-67206         O-RING 1
6 25-832804         O-RING, (2.739 x .070) 1
6 25-67206         O-RING 1
7 653-833146T06         CONNECTING ROD ASSEMBLY 1 833146T3
7 653-833146T06         CONNECTING ROD ASSEMBLY 1 833146T04
8 NSS         Piston Assembly 1 Not Sold Separate
9 53-8348101         RING, Lock 2
10 835088A10         REED PLATE ASSEMBLY 1
11 25-67207         O-RING, (3.489 x .070) 2
12 25-832804         O-RING, (2.739 x .070) 1
13 26-828225         SEAL 1
14 835087A3         HEAD ASSEMBLY, Compressor 1
15 22-8307535         FITTING, Straight 1
16 10-82446035         SCREW, (M8 x 35 MM) 4
16 10-82127335         SCREW, (M8 x 35 MM) 4
17 22-151331         FITTING 1
18 22-996642         FITTING, Elbow 90 Degree (.125-27 x .250) Nylon 1
19 21-428641         FITTING, Check Valve 2
20 22-856744         FITTING 1
21 22-16604         FITTING, Straight (.125-27) 1
22 25-831985         O-RING, (.468 x .078) 1
23 13536A14         SENSOR ASSEMBLY, Temperature 1
24 137151         RETAINER 1
25 10-81893414         SCREW, (M8 x 14) 1
26 22-390721         PLUG, Pipe (.125-27) Brass 1
27 10-85593912         SCREW, (M6 x 12) 6
28 8328233         PULLEY 1
29 10-8M0045380         SCREW, (M8 x 50) 4 891570
- 25-832804A03         O-RING KIT 1 832804A1
