| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

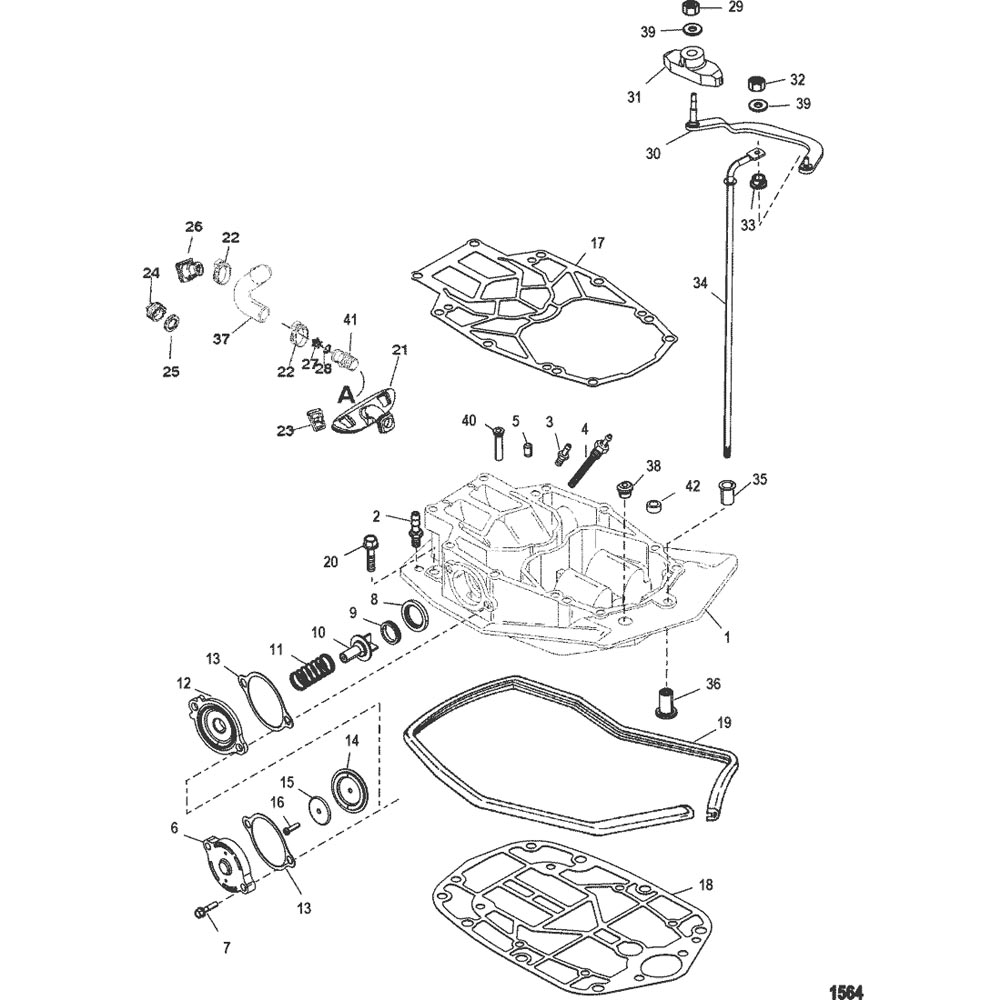

| 1 |
840192T10 |
|
|
|
|
PLATE ASSEMBLY, Exhaust |
1 |
|
|
| 2 |
22-34982 |
|
|
|
|
CONNECTOR |
2 |
|
|
| 3 |
22-828091 |
|
|
|
|
FITTING |
1 |
|
No Longer Available |
| 4 |
35-8348084 |
|
|
|
|
STRAINER |
1 |
|
|
| 5 |
17-43044 |
|
|
|
|
PIN, Dowel - Without Hole (.375 x .625) |
4 |
|
|
| 6 |
65663A2 |
|
|
|
|
COVER ASSEMBLY |
1 |
|
|
| 7 |
10-81893435 |
|
|
|
|
SCREW, (M8 x 35) |
2 |
|
|
| 8 |
814190 |
|
|
|
|
CARRIER |
1 |
|
|
| 9 |
25-814191 |
|
|
|
|
GROMMET |
1 |
|
|
| 10 |
814189 |
|
|
|
|
POPPET |
1 |
|
|
| 11 |
24-64878 |
|
|
|
|
SPRING, (Black) |
1 |
|
|
| 12 |
65664A1 |
|
|
|
|
PLATE ASSEMBLY |
1 |
|
|
| 13 |
27-88907003 |
|
|
|
|
GASKET |
2 |
88907 |
|
| 14 |
648771 |
|
|
|
|
DIAPHRAGM |
1 |
|
|
| 15 |
12-76451 |
|
|
|
|
WASHER |
1 |
|
|
| 16 |
10-69570 |
|
|
|
|
SCREW, (#10-16 x .750) |
1 |
|
|
| 17 |
27-8329335 |
|
|
|
|
GASKET |
1 |
|
No Longer Available |
| 18 |
27-8329344 |
|
|
|
|
GASKET, Lower |
1 |
|
No Longer Available |
| 19 |
8M0043157 |
|
|
|
|
SEAL |
1 |
8238051 |
|
| 20 |
10-81893435 |
|
|
|
|
SCREW, (M8 x 35) |
6 |
|
|
| 21 |
850306A04 |
|
|
|
|
BOOT, Idle Exhaust |
1 |
8503061 |
|
| 22 |
54-850896 |
|
|
|
|
CLAMP, (28.6) |
2 |
|
|
| 23 |
8M0077650 |
|
|
|
|
FITTING, Tell-Tale |
1 |
821904 |
|
| 24 |
19-821908 |
|
|
|
|
PLUG |
1 |
|
|
| 25 |
12-821915 |
|
|
|
|
WASHER |
1 |
|
|
| 26 |
22-8596001 |
|
|
|
|
FITTING |
1 |
|
|
| 27 |
8219631 |
|
|
|
|
CHECK VALVE |
1 |
|
|
| 28 |
25-30641 |
|
|
|
|
O-RING, (.299 x .103) |
1 |
|
|
| 29 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
| 30 |
883142A03 |
|
|
|
|
SHIFT LINK KIT |
1 |
883142A1 |
|
| 31 |
8539683 |
|
|
|
|
SLIDE |
1 |
|
|
| 32 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
| 33 |
23-42994 |
|
|
|
|
BUSHING |
1 |
|
|
| 34 |
8M0036408 |
|
|
|
|
SHIFT SHAFT, Upper |
1 |
8240701 |
|
| 34 |
8M0046246 |
|
|
|
|
SHIFT SHAFT, Upper |
1 |
8240702 |
|
| 34 |
8240703 |
|
|
|
|
SHIFT SHAFT, Upper |
1 |
|
|
| 35 |
23-48237 |
|
|
|
|
BUSHING |
1 |
|
|
| 36 |
43585 |
|
|
|
|
COUPLING |
1 |
|
|
| 37 |
32-859626A1 |
|
|
|
|
FLUSH HOSE KIT, Inlet |
1 |
|
|
| 38 |
25-12602002 |
|
|
|
|
GROMMET |
1 |
126021 |
|
| 39 |
12-35459 |
|
|
|
|
WASHER |
2 |
|
|
| 40 |
21-817519A1 |
|
|
|
|
CHECK VALVE ASSEMBLY, Drain |
2 |
|
|
| 41 |
22-8320761 |
|
|
|
|
FITTING, Check Valve |
1 |
|
|
| 42 |
23-840193 |
|
|
|
|
SPACER |
2 |
|
|
| - |
27-841220A03 |
|
|
|
|
GASKET SET, Powerhead |
1 |
|
|
