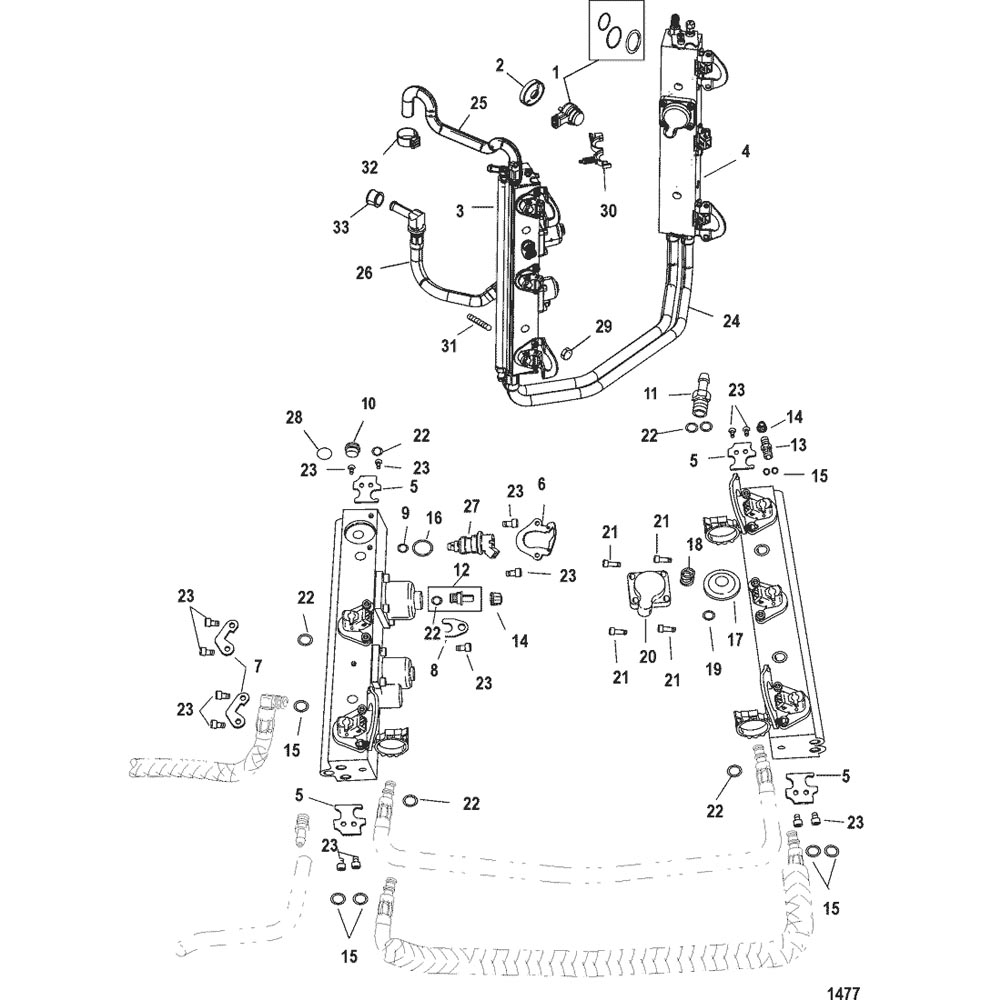

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
8M6001744 |
|
|
|
|
INJECTOR ASSEMBLY, Air |
6 |
884595A01 |
|
| - |
26-804875 |
|
|
|
|
SEAL KIT |
1 |
|
|
| 2 |
12-828694A1 |
|
|
|
|
WASHER ASSEMBLY, Cupped |
6 |
|
|
| - |
NSS |
|
|
|
|
Fuel Rail Assembly |
1 |
|
Not Sold Separate |
| 3 |
844144T01 |
|
|
|
|
FUEL RAIL, Port |
1 |
884429T17 |
No Longer Available |
| 4 |
844145T01 |
|
|
|
|
FUEL RAIL ASSEMBLY, Starboard |
1 |
884430T07 |
No Longer Available |
| 5 |
54-804830 |
|
|
|
|
CLAMP |
4 |
|
|
| 6 |
54-8048311 |
|
|
|
|
CLAMP |
4 |
|
|
| 7 |
54-804832 |
|
|
|
|
CLAMP |
2 |
|
|
| 8 |
54-8M0041097 |
|
|
|
|
CLAMP |
1 |
|
|
| 9 |
25-804529 |
|
|
|
|
O-RING KIT, Contains 6 pcs |
1 |
|
|
| 10 |
19-804835 |
|
|
|
|
PLUG |
1 |
|
|
| 11 |
22-804836 |
|
|
|
|
FITTING |
1 |
|
|
| 12 |
804837 |
|
|
|
|
VALVE ASSEMBLY, (.5 Inch Diameter) |
1 |
|
|
| 13 |
8M0047053 |
|
|
|
|
VALVE KIT, Fuel |
1 |
804838A1 |
|
| 14 |
19-805515 |
|
|
|
|
CAP |
2 |
804839 |
|
| 15 |
25-804840 |
|
|
|
|
O-RING KIT |
1 |
|
|
| 16 |
25-804530 |
|
|
|
|
O-RING KIT, Contains 6 pcs |
1 |
|
|
| 17 |
804533 |
|
|
|
|
DIAPHRAGM ASSEMBLY |
1 |
|
|
| 18 |
24-804534 |
|
|
|
|
SPRING |
1 |
|
|
| 19 |
25-804536 |
|
|
|
|
O-RING |
1 |
|
|
| 20 |
804535001 |
|
|
|
|
COVER |
1 |
804535 |
|
| 21 |
804526 |
|
|
|
|
SCREW PACKAGE, (M5 x 16) (2 Per) |
4 |
|
|
| 22 |
804532 |
|
|
|
|
O-RING KIT |
1 |
|
|
| 23 |
804525001 |
|
|
|
|
SCREW PACKAGE, (M5 x 8) (2 Per) |
17 |
804525 |
No Longer Available |
| 24 |
32-804827 |
|
|
|
|
HOSE |
1 |
|
No Longer Available |
| 25 |
32-889310 |
|
|
|
|
HOSE, Fuel Supply |
1 |
|
No Longer Available |
| 26 |
32-889311 |
|
|
|
|
HOSE, Fuel By Pass |
1 |
|
No Longer Available |
| 27 |
804528 |
|
|
|
|
INJECTOR |
6 |
|
|
| 28 |
25-804532 |
|
|
|
|
SEAL |
1 |
803987 |
|
| 29 |
11-826292 |
|
|
|
|
NUT, (M10) Brass/Nickel Plated |
4 |
|
|
| 30 |
54-859376 |
|
|
|
|
CLIP, Conduit |
4 |
|
|
| 31 |
16-8M0063255 |
|
|
|
|
STUD, (M10 x 91) |
4 |
858778 |
|
| 32 |
54-856880 |
|
|
|
|
CLAMP, Hose (15.3) |
2 |
|
|
| 33 |
26-888852 |
|
|
|
|
SEAL, Fuel Director |
1 |
|
|
