250XS 3.0L DFI - Serial 0T651945 Thru 0T818042 - Fuel Pump

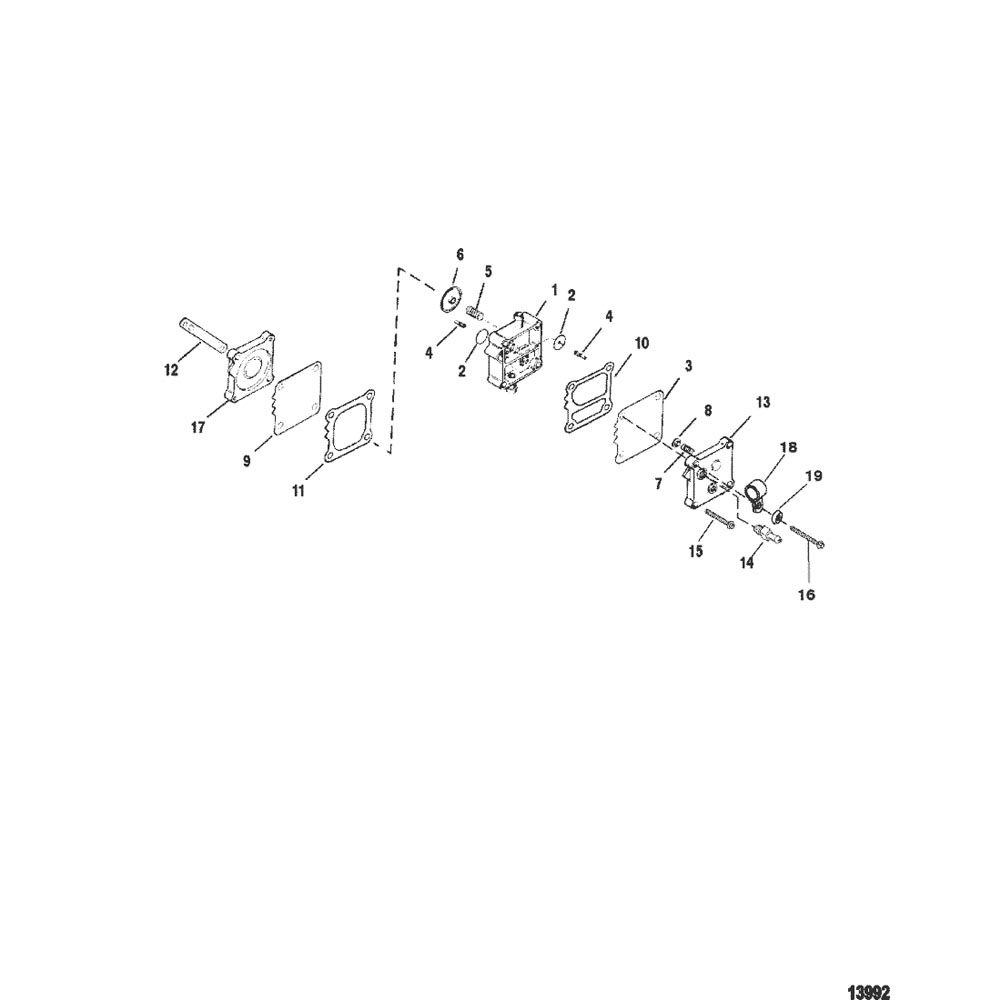

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Fuel System
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oil Injection Components
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate And Electrical Wiring
- Speedometer/Block Pressure System
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 14360A78 | PUMP KIT, Fuel | 1 | ||||||
| 1 | NSS | Fuel Pump | 1 | Not Sold Separate | |||||
| 2 | 21-857005A1 | DIAPHRAGM KIT | 2 | ||||||
| 3 | NSS | Diaphragm Kit | 1 | Not Sold Separate | |||||
| 4 | NSS | Retainer | 2 | Not Sold Separate | |||||
| 5 | NSS | Spring | 1 | Not Sold Separate | |||||
| 6 | NSS | Cap | 1 | Not Sold Separate | |||||
| 7 | NSS | Spring | 1 | Not Sold Separate | |||||
| 8 | NSS | Cap | 1 | Not Sold Separate | |||||
| 9 | NSS | Diaphragm | 1 | Not Sold Separate | |||||
| 10 | NSS | Gasket, Boost | 1 | Not Sold Separate | |||||
| 11 | NSS | Gasket, Pulse | 1 | Not Sold Separate | |||||
| 12 | 27-987691 | GASKET | 1 | ||||||
| 13 | 987752 | PLATE | 1 | ||||||
| 14 | 22-16604 | FITTING, Straight (.125-27) | 1 | ||||||
| 15 | 10-82104540 | SCREW, (M5 x 40) | 2 | ||||||
| 16 | 10-82130050 | SCREW, (M6 x 50) | 2 | ||||||
| 17 | 144303 | BASE | 1 | ||||||
| 18 | 54-8589781 | CLIP, Fuel Hose | 1 | ||||||
| 19 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 1 | ||||||
| - | 27-841220A03 | GASKET SET, Powerhead | 1 |
