| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| - |

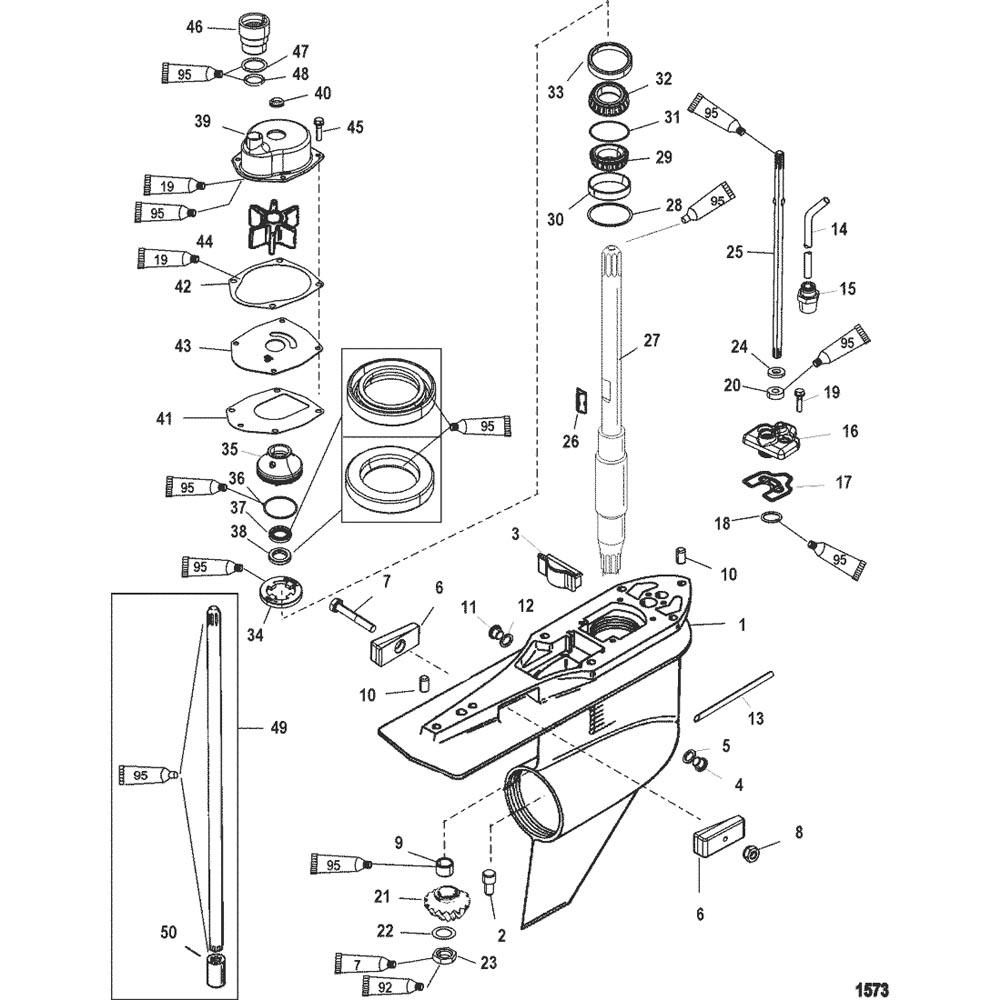

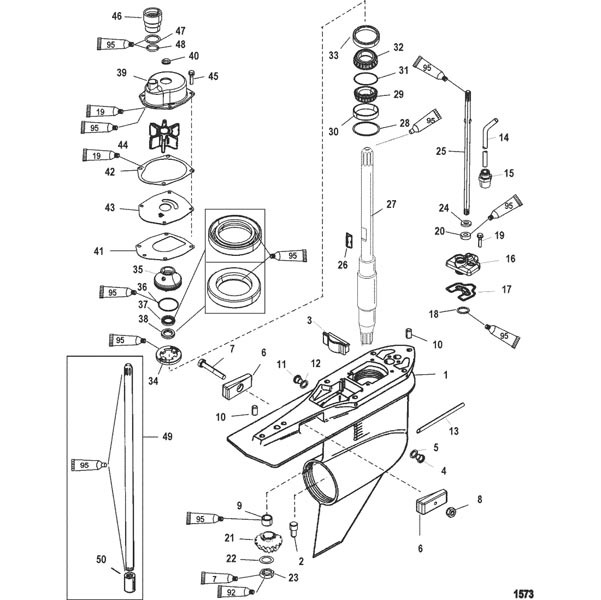

1623-842004T04 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
859399T22 |
|
| - |
1623-842004T06 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
859399T25 |
|
| - |
1623-842004T05 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
859399T23 |
|
| - |
1623-842004T07 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
859399T26 |
|
| 1 |
1623-859399T24 |
|
|
|
|
GEAR HOUSING ASSEMBLY, Complete |
1 |
|
|
| 2 |
17-379721 |
|
|
|
|
PIN |
1 |
|
|
| 3 |
821526001 |
|
|
|
|
FILLER BLOCK |
1 |
821526 |
|
| 4 |
10-79953Q04 |
|
|
|
|
SCREW KIT, (.375-16 x .250) Drain |
1 |
79953Q2 |
|
| 5 |
12-191833 |
|
|
|
|
WASHER |
1 |
191832 |
|
| 6 |
97-826134Q |
|
|
|
|
ANODE |
2 |
|
|
| 7 |
10-4000333 |
|
|
|
|
SCREW, (M6 x 40) |
1 |
|
|
| 8 |
11-401386 |
|
|
|
|
NUT, (M6) Stainless Steel |
1 |
|
|
| 9 |
31-42647A1 |
|
|
|
|
BEARING ASSEMBLY, Roller |
1 |
|
|
| 10 |
17-43044 |
|
|
|
|
PIN, Dowel - Without Hole (.375 x .625) |
2 |
|
|
| 11 |
10-79953Q04 |
|
|
|
|
SCREW KIT, (.375-16 x .250) Drain |
1 |
79953Q2 |
|
| 12 |
12-191833 |
|
|
|
|
WASHER |
1 |
191832 |
|
| 13 |
859402 |
|
|
|
|
PITOT TUBE |
1 |
|
|
| 14 |
32-85944975 |
|
|
|
|
TUBING, (72.00 Inches Bulk) |
1 |
|
|
| 14 |
32-85944975 |
|
|
|
|
TUBING, (72.00 Inches Bulk) |
1 |
|
|
| 15 |
22-881866 |
|
|
|
|
FITTING |
1 |
859432 |
|
| 16 |
858934 |
|
|
|
|
COVER |
1 |
|
|
| 17 |
27-858935 |
|
|
|
|
GASKET |
1 |
|
|
| 18 |
25-36318 |
|
|
|
|
O-RING, (.799) |
2 |
|
|
| 19 |
10-82130016 |
|
|
|
|
SCREW, (M6 x 16) |
2 |
|
|
| 20 |
26-8164641 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 21 |
NSS |
|
|
|
|
Pinion Gear |
1 |
|
Not Sold Separate |
| 22 |
12-92721 |
|
|
|
|
WASHER |
1 |
|
|
| 23 |
11-35921 |
|
|
|
|
NUT, (.625-18) |
1 |
|
|
| 24 |
12-77674 |
|
|
|
|
WASHER |
1 |
|
|
| 25 |
824145 |
|
|
|
|
SHIFT SHAFT |
1 |
|
|
| 26 |
28-8M0032833 |
|
|
|
|
KEY |
1 |
43037 |
|
| 27 |
45-859348 |
|
|
|
|
DRIVESHAFT |
1 |
|
|
| 27 |
45-881943 |
|
|
|
|
DRIVESHAFT |
1 |
|
|
| 28 |
15-38657A1 |
|
|
|
|
SHIM ASSEMBLY |
AR |
|
No Longer Available |
| 29 |
31-48939A2 |
|
|
|
|
BEARING, Tapered Roller |
1 |
|
|
| 30 |
NSS |
|
|
|
|
Cup |
1 |
|
Not Sold Separate |
| 31 |
15-42637A1 |
|
|
|
|
SHIM SET |
AR |
|
No Longer Available |
| 32 |
31-36387A1 |
|
|
|
|
BEARING ASSEMBLY, Roller/Cup |
1 |
|
|
| 33 |
NSS |
|
|
|
|
Cup |
1 |
|
Not Sold Separate |
| 34 |
8245191 |
|
|
|
|
RETAINER |
1 |
|
|
| 35 |
807929A1 |
|
|
|
|
CARRIER ASSEMBLY |
1 |
|
|
| 36 |
25-896523 |
|
|
|
|
O-RING, (2.175 x .175) |
1 |
90011 |
|
| 37 |
26-66302 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 38 |
26-66302 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 39 |
817275A5 |
|
|
|
|
REBUILD KIT, Water Pump |
1 |
|
|
| 40 |
26-816575A2 |
|
|
|
|
SEAL KIT |
1 |
|
|
| 41 |
27-430331 |
|
|
|
|
GASKET |
1 |
|
|
| 42 |
27-8172771 |
|
|
|
|
GASKET |
1 |
|
|
| 43 |
8172761 |
|
|
|
|
FACEPLATE |
1 |
|
|
| 44 |
47-43026T2 |
|
|
|
|
IMPELLER |
1 |
|
|
| 45 |
10-82130016 |
|
|
|
|
SCREW, (M6 x 16) |
4 |
|
|
| 46 |
832942A1 |
|
|
|
|
COUPLING ASSEMBLY |
1 |
|
|
| 47 |
25-21836 |
|
|
|
|
O-RING, (.796 x .139) |
1 |
|
|
| 48 |
25-35027 |
|
|
|
|
O-RING, (1.046) |
1 |
|
|
| 49 |
45-827755A1 |
|
|
|
|
EXTENSION KIT, Driveshaft |
1 |
|
No Longer Available |
| 50 |
823902 |
|
|
|
|
COUPLING |
1 |
|
|
| - |
26-816575A4 |
|
|
|
|
SEAL KIT, Gear Housing |
1 |
|
|
| - |
817275A5 |
|
|
|
|
REBUILD KIT, Water Pump |
1 |
|
|
| - |
47-8M0100526 |
|
|
|
|
REPAIR KIT, Water Pump Impeller |
1 |
43026T11 |
|
