250XS 3.0L DFI - Serial 0T651945 Thru 0T818042 - Speedometer/Block Pressure System

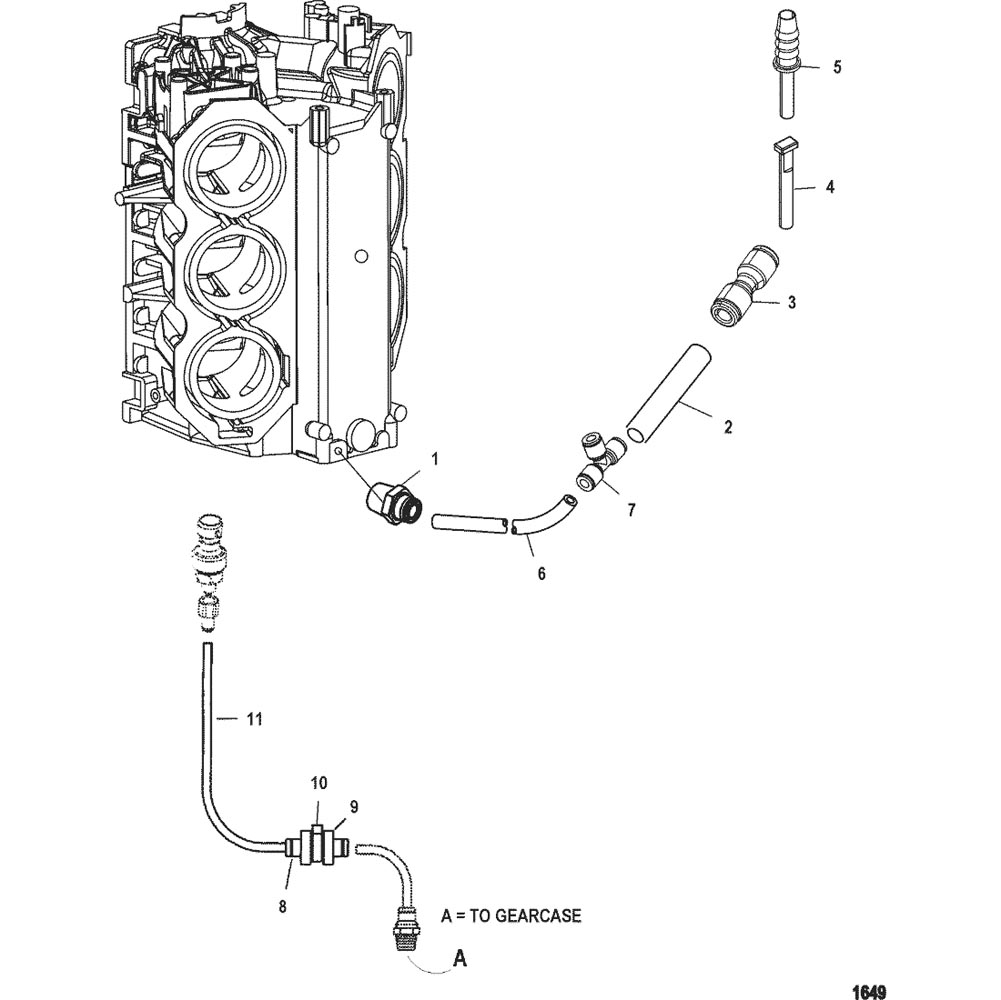

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Fuel System
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oil Injection Components
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate And Electrical Wiring
- Speedometer/Block Pressure System
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 22-881866 | FITTING | 1 | ||||||
| 2 | 32-85978571 | TUBING, (44.00 Inches Bulk), Gray | 1 | 85978568 | |||||
| 3 | 22-859747 | COUPLER | 1 | ||||||
| 4 | 22-859732 | PLUG | 1 | ||||||
| 5 | 22-859731 | FITTING, Adapter | 1 | ||||||
| 6 | 32-85978571 | TUBING, (44.00 Inches Bulk) | 1 | 85978568 | |||||
| 7 | 22-875207 | TEE, Fitting | 1 | ||||||
| 8 | 22-859448T | FITTING | 1 | 859448 | |||||
| 9 | 25-821555001 | GROMMET | 1 | 821555 | |||||
| 10 | 54-850181 | TIE STRAP, (11.750 Inches) | 1 | ||||||
| 11 | 32-85944975 | TUBING, (72.00 Inches Bulk) | 1 |
