250XS 3.0L DFI - Serial 0T651945 Thru 0T818042 - Fuel System

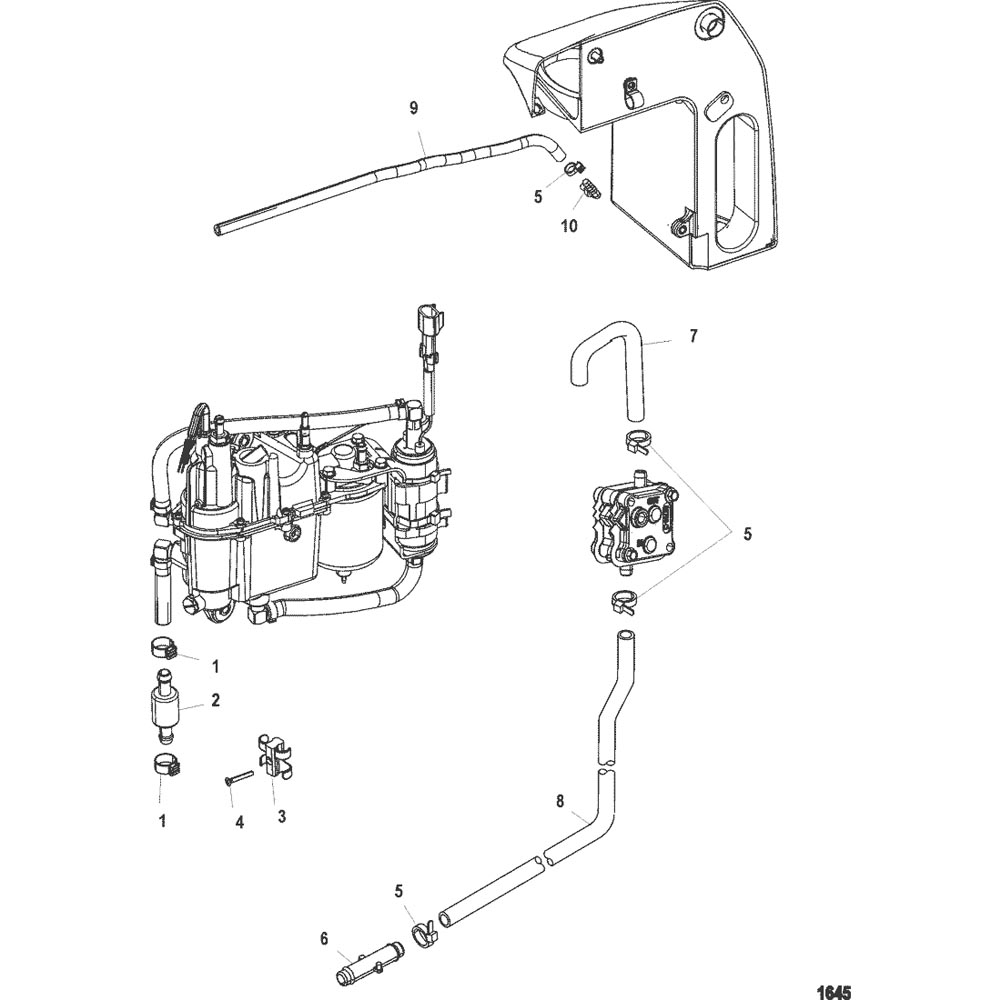

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Fuel System
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oil Injection Components
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate And Electrical Wiring
- Speedometer/Block Pressure System
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 54-856880 | CLAMP, Hose (15.3) | 2 | ||||||
| 2 | 21-8557611 | CHECK VALVE | 1 | ||||||
| 3 | 54-8583253 | CLAMP | 1 | ||||||
| 4 | 10-858939 | SCREW, (M5 x 35) | 1 | ||||||
| 5 | 54-816311T | TIE STRAP, (8.00 Inches) | 4 | ||||||
| 6 | 22-822769 | CONNECTOR | 1 | ||||||
| 7 | 32-8M0064780 | HOSE/SLEEVE | 1 | 856818A1 | |||||
| 8 | 32-8M0064778 | HOSE | 1 | 8568172 | |||||
| 9 | 32-8M0108355 | HOSE, (57.00 Inches Bulk) (Cut to 18.00 Inch Length) | 1 | 830756109 | |||||
| 10 | 22-8589052 | ELBOW | 1 | No Longer Available |
