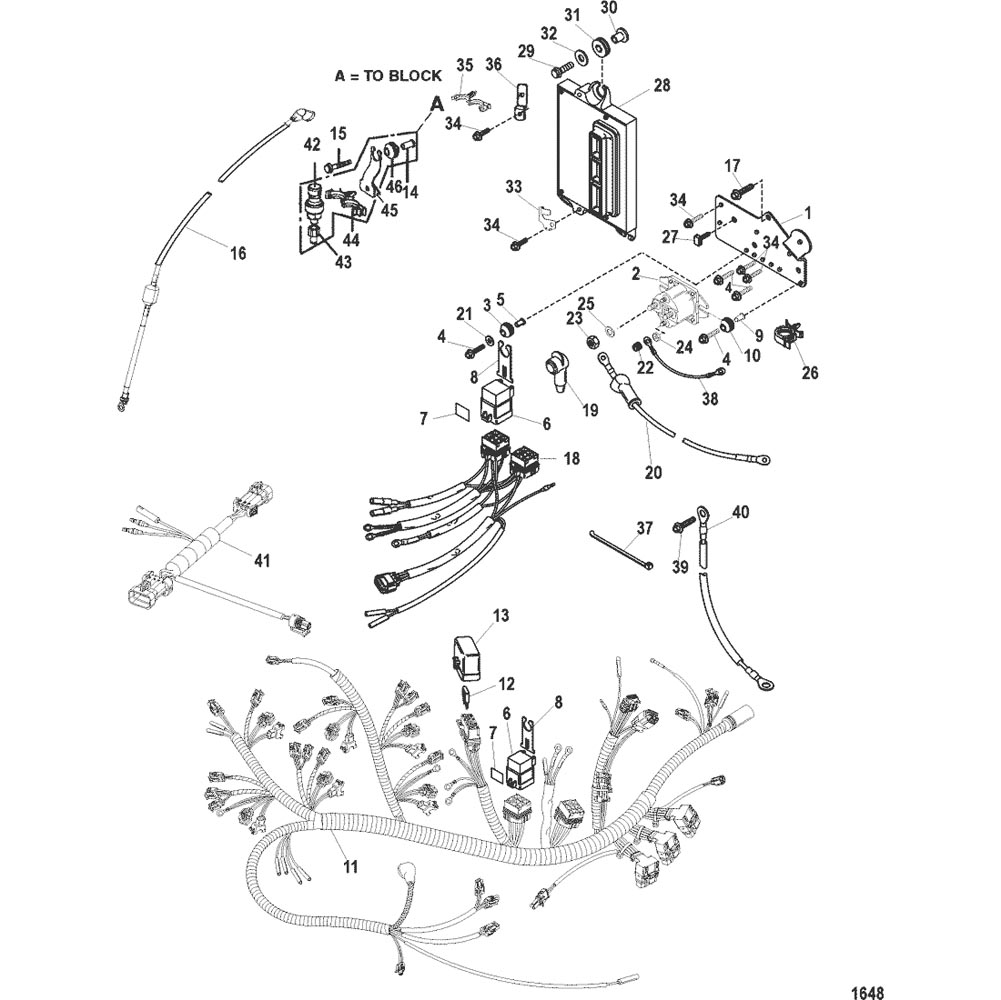

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
858366T2 |
|
|
|
|
PLATE |
1 |
|
|
| 2 |
89-817109A2 |
|
|
|
|
SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) |
1 |
|
|
| 3 |
25-822179 |
|
|
|
|
GROMMET |
2 |
|
|
| 4 |
10-82129125 |
|
|
|
|
SCREW, (M6 x 25 MM) |
5 |
|
|
| 5 |
23-818968 |
|
|
|
|
BUSHING |
2 |
|
|
| 6 |
882751A1 |
|
|
|
|
RELAY ASSEMBLY |
3 |
|
|
| 7 |
NSS |
|
|
|
|
Decal |
3 |
|
Not Sold Separate |
| 8 |
828102 |
|
|
|
|
BRACKET |
3 |
|
|
| 9 |
23-818968 |
|
|
|
|
BUSHING |
3 |
|
|
| 10 |
25-818967 |
|
|
|
|
GROMMET |
3 |
|
|
| 11 |
84-878082T7 |
|
|
|
|
HARNESS ASSEMBLY, Engine Wiring |
1 |
|
|
| 12 |
88-832969T20 |
|
|
|
|
FUSE, Mini - Yellow - 20 Ampere |
4 |
83296920 |
|
| 12 |
88-832969T05 |
|
|
|
|
FUSE, Mini - Tan - 5 Ampere |
1 |
8329695 |
|
| 13 |
858754 |
|
|
|
|
COVER, Fuse |
1 |
|
|
| 14 |
23-818968 |
|
|
|
|
BUSHING |
1 |
|
|
| 15 |
10-82130025 |
|
|
|
|
SCREW, (M6 x 25) |
1 |
|
|
| 16 |
84-878231A6 |
|
|
|
|
HARNESS ASSEMBLY, Fuse - 100 Ampere |
1 |
|
|
| NS |
84-879346A49 |
|
|
|
|
HARNESS ASSEMBLY, Direct Injector |
1 |
858781A2 |
|
| NS |
84-879346A50 |
|
|
|
|
HARNESS ASSEMBLY, Fuel Injector |
1 |
858780A2 |
|
| NS |
84-881262A2 |
|
|
|
|
HARNESS ASSEMBLY, Alternator |
1 |
|
|
| NS |
84-879346A50 |
|
|
|
|
HARNESS ASSEMBLY, TPS |
1 |
858780A2 |
|
| 17 |
10-82130012 |
|
|
|
|
SCREW, (M6 x 12) |
3 |
|
|
| 18 |
84-819514T18 |
|
|
|
|
HARNESS ASSEMBLY, Trim |
1 |
|
|
| 19 |
85-8500671 |
|
|
|
|
BOOT, Insulator - Red |
1 |
|
|
| 20 |
84-882829A1 |
|
|
|
|
CABLE ASSEMBLY, Starter |
1 |
|
|
| 21 |
12-29245 |
|
|
|
|
WASHER, (.281 x .500 x .060) Stainless Steel |
1 |
|
|
| 22 |
11-813938 |
|
|
|
|
CAP NUT, (#10-32) |
1 |
|
|
| 23 |
11-68292 |
|
|
|
|
NUT, (.312-18) |
2 |
|
|
| 24 |
11-45076 |
|
|
|
|
NUT, (#10-32) Brass |
2 |
|
|
| 25 |
13-53166 |
|
|
|
|
LOCKWASHER, (.312) |
2 |
|
|
| 26 |
54-858755 |
|
|
|
|
CLIP, (1.00) |
1 |
|
|
| 27 |
54-828991T |
|
|
|
|
CLIP |
1 |
828991 |
|
| 28 |
88555745T |
|
|
|
|
PCM, Propulsion Control Module |
1 |
85961077S |
|
| 29 |
10-82130025 |
|
|
|
|
SCREW, (M6 x 25) |
3 |
|
|
| 30 |
23-856954 |
|
|
|
|
BUSHING |
3 |
|
|
| 31 |
25-834985 |
|
|
|
|
GROMMET |
3 |
|
|
| 32 |
12-65567 |
|
|
|
|
WASHER, (.265 x .750 x .048) Stainless Steel |
3 |
|
|
| 33 |
8590881 |
|
|
|
|
CLIP |
1 |
|
|
| 34 |
10-82129114 |
|
|
|
|
SCREW, (M6 x 14) |
5 |
|
|
| 35 |
54-859376 |
|
|
|
|
CLIP |
1 |
|
|
| 36 |
858953 |
|
|
|
|
BRACKET |
1 |
|
|
| 37 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
AR |
|
|
| 38 |
84-88807A16 |
|
|
|
|
CABLE ASSEMBLY, (4.00 Inches) Black |
1 |
|
|
| 39 |
10-81893420 |
|
|
|
|
SCREW, (M8 x 20) |
1 |
|
|
| 40 |
84-88439A26 |
|
|
|
|
CABLE ASSEMBLY, Battery - Negative |
1 |
|
|
| 40 |
84-88439A25 |
|
|
|
|
CABLE ASSEMBLY, Battery - Positive |
1 |
|
|
| 41 |
84-859244T1 |
|
|
|
|
HARNESS ASSEMBLY, Digital Adaptor, Smart Craft |
1 |
|
|
| 42 |
881879T11 |
|
|
|
|
SENSOR, (0 - 100 PSI) |
1 |
881879A6 |
|
| 43 |
22-892403 |
|
|
|
|
FITTING |
1 |
859431 |
|
| 44 |
54-883066 |
|
|
|
|
CLIP, (.865) |
1 |
|
|
| 45 |
859313 |
|
|
|
|
BRACKET |
1 |
|
|
| 46 |
25-818967 |
|
|
|
|
GROMMET |
1 |
|
|
