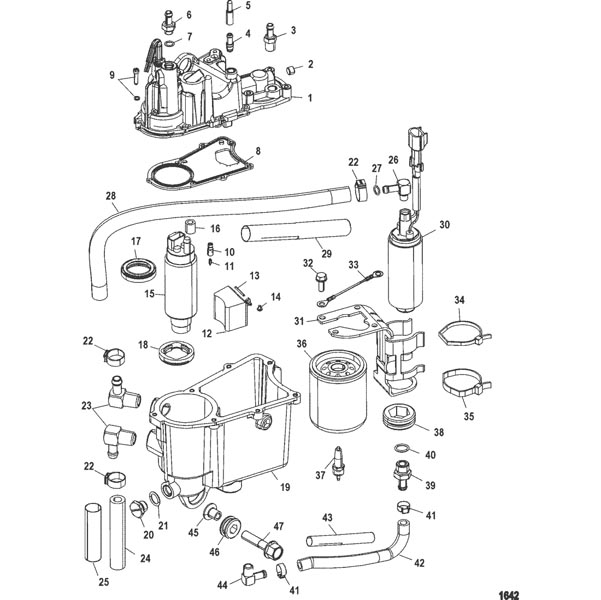

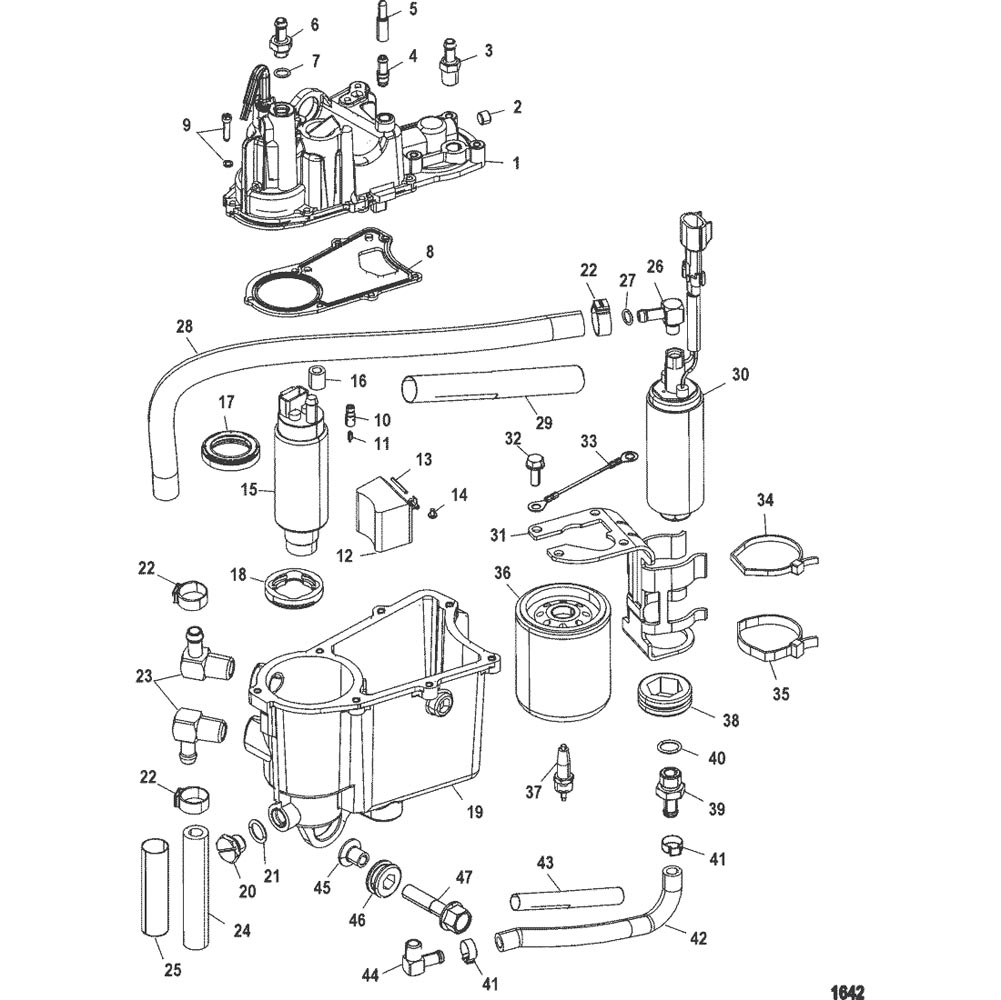

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
850250T1 |
|
|
|
|
COVER KIT |
1 |
|
|
| 2 |
19-883208 |
|
|
|
|
PLUG |
1 |
881830 |
|
| 3 |
22-881740 |
|
|
|
|
FITTING, Straight |
1 |
|
|
| 4 |
22-881741 |
|
|
|
|
FITTING |
1 |
|
|
| 5 |
NSS |
|
|
|
|
Cap |
1 |
|
Not Sold Separate |
| 6 |
22-855437A2 |
|
|
|
|
FITTING KIT, Pump Outlet |
1 |
|
|
| 7 |
25-8M0062785 |
|
|
|
|
O-RING |
1 |
883209 |
|
| 8 |
27-855528 |
|
|
|
|
GASKET |
1 |
|
No Longer Available |
| 9 |
1395-808612 |
|
|
|
|
SCREW AND WASHER, (#8-32 x .750) |
7 |
|
|
| 10 |
883247A1 |
|
|
|
|
VALVE/SEAT KIT, Inlet |
1 |
|
|
| 11 |
8M6004917 |
|
|
|
|
VALVE, Needle |
1 |
|
|
| 12 |
883253A1 |
|
|
|
|
FLOAT KIT |
1 |
|
|
| 13 |
F10064 |
|
|
|
|
SHAFT |
1 |
|
|
| 14 |
1395-5902 |
|
|
|
|
SCREW, (#6-32 x .187) |
1 |
|
No Longer Available |
| 15 |
889441T |
|
|
|
|
PUMP ASSEMBLY |
1 |
|
|
| 16 |
23-8M6000589 |
|
|
|
|
SLEEVE |
1 |
855428 |
|
| 17 |
26-803878 |
|
|
|
|
SEAL, Black |
1 |
|
|
| 18 |
26-8554331 |
|
|
|
|
SEAL, Brown |
1 |
|
|
| 19 |
855434A1 |
|
|
|
|
BOWL KIT |
1 |
|
|
| 20 |
19-855435A1 |
|
|
|
|
PLUG KIT |
1 |
|
|
| 21 |
25-8M0062785 |
|
|
|
|
O-RING |
1 |
883209 |
|
| 22 |
54-856880 |
|
|
|
|
CLAMP, Hose (15.3) |
3 |
|
|
| 23 |
22-8554245 |
|
|
|
|
ELBOW |
2 |
|
No Longer Available |
| 24 |
32-85682239 |
|
|
|
|
TUBING, (17.00 Inches Bulk) |
1 |
|
|
| 25 |
23-85686953 |
|
|
|
|
SLEEVE, (27.00 Inches Bulk) |
1 |
|
No Longer Available |
| 26 |
22-855802A1 |
|
|
|
|
ELBOW |
1 |
|
|
| 27 |
25-883551 |
|
|
|
|
O-RING |
1 |
|
|
| 28 |
32-856825 |
|
|
|
|
HOSE |
1 |
|
No Longer Available |
| 29 |
23-85686953 |
|
|
|
|
SLEEVE, (27.00 Inches Bulk) |
1 |
|
No Longer Available |
| 30 |
8M0047624 |
|
|
|
|
PUMP ASSEMBLY |
1 |
8558432 |
|
| 31 |
855756A1 |
|
|
|
|
BRACKET KIT |
1 |
|
No Longer Available |
| 32 |
10-1993716 |
|
|
|
|
SCREW, (M6 x 16) |
4 |
|
|
| 33 |
84-881831 |
|
|
|
|
WIRE ASSEMBLY |
1 |
|
|
| 34 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
1 |
|
|
| 35 |
54-850181 |
|
|
|
|
TIE STRAP, (11.750 Inches) |
1 |
|
|
| 36 |
35-18458T4 |
|
|
|
|
FILTER KIT |
1 |
|
|
| 37 |
8285861 |
|
|
|
|
PROBE |
1 |
|
|
| 38 |
25-856928 |
|
|
|
|
GROMMET |
1 |
|
No Longer Available |
| 39 |
22-880862A1 |
|
|
|
|
FITTING |
1 |
856812 |
|
| 40 |
25-880863 |
|
|
|
|
O-RING |
1 |
|
|
| 41 |
54-13791 |
|
|
|
|
CLAMP, (15.7) |
2 |
|
|
| 42 |
32-856778 |
|
|
|
|
HOSE |
1 |
|
No Longer Available |
| 43 |
23-85686953 |
|
|
|
|
SLEEVE, (27.00 Inches Bulk) |
1 |
|
No Longer Available |
| 44 |
22-8839761 |
|
|
|
|
FITTING |
1 |
|
|
| 45 |
23-855364 |
|
|
|
|
BUSHING |
3 |
|
|
| 46 |
25-855362001 |
|
|
|
|
GROMMET |
3 |
855362 |
|
| 47 |
10-81893435 |
|
|
|
|
SCREW, (M8 x 35) |
3 |
|
|
