250XS 3.0L DFI - Serial 0T651945 Thru 0T818042 - Bottom Cowl

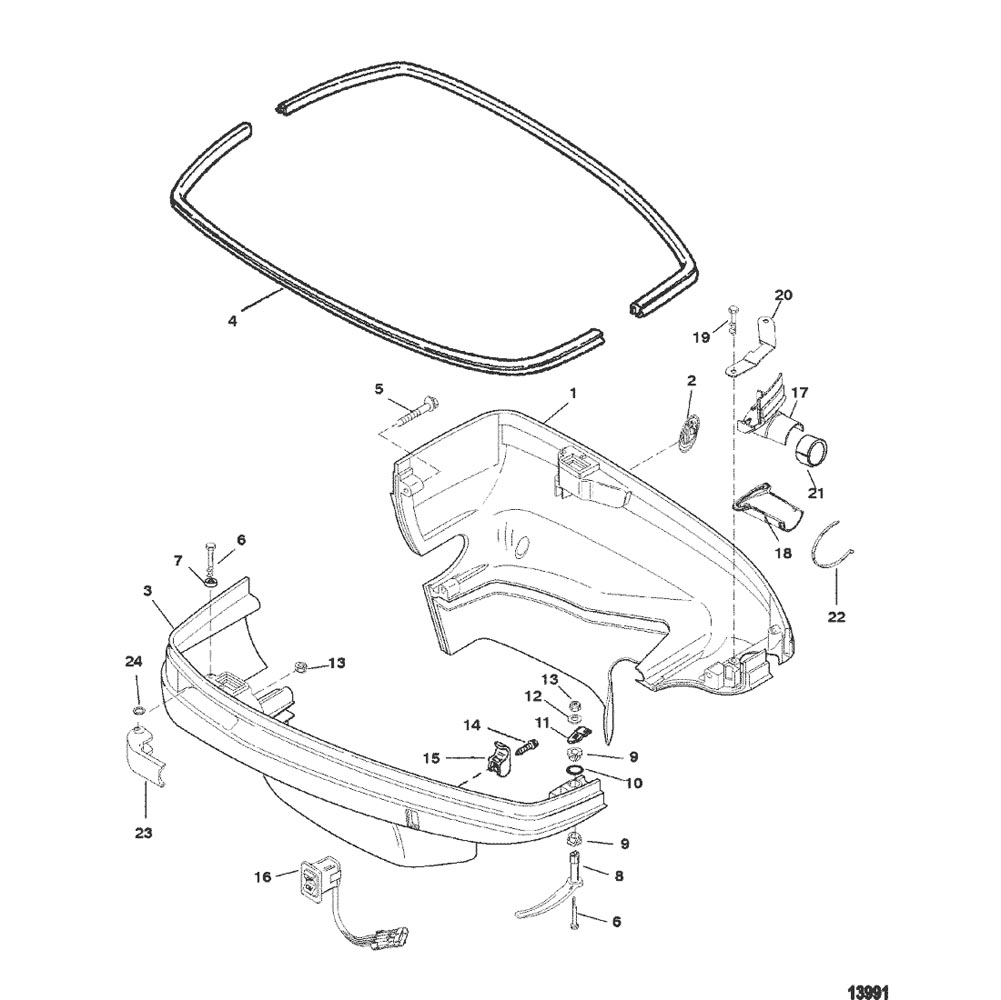

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 113-850302A1         BOTTOM COWL, Port 1 No Longer Available
2 854367001         PLUG 1 854367
3 113-850301A1         BOTTOM COWL, Starboard 1 No Longer Available
4 8M0043274         SEAL, (44.00 Inches) 2 8253183
5 10-82130040         SCREW, (M6 x 40) 4
6 10-824868         SCREW, (M6 x 75) 3
7 12-29245         WASHER, (.281 x .500 x .060) Stainless Steel 2
8 8M0053903         FRONT HANDLE 1 850684F1
9 23-335891         BUSHING 2
10 25-48462         O-RING, (.614 x .070) 1
11 8219423         PAWL 1
12 12-69057         WASHER, (.281 x .734 x .063) 1
13 11-401366         NUT, (M6) Stainless Steel 3
14 10-8214281         SCREW, (#10-16 x .625) 1
15 54-822873         CLIP 1
16 87-8M0042300         SWITCH, Trim 1 8569901
17 54-8M8027677         RIGGING KIT, Upper 1 859359A2
18 NSS         Clamp, Lower 1 Not Sold Separate
19 10-82130012         SCREW, (M6 x 12) 2
20 NSS         Strap 1 Not Sold Separate
21 859343         FOAM 1
22 54-850181         TIE STRAP, (11.750 Inches) 2
23 852361T1         HANDLE, Cowl 2 No Longer Available
24 13-29402         WAVE WASHER 2
