250XS 3.0L DFI - Serial 0T651945 Thru 0T818042 - Oil Injection Components

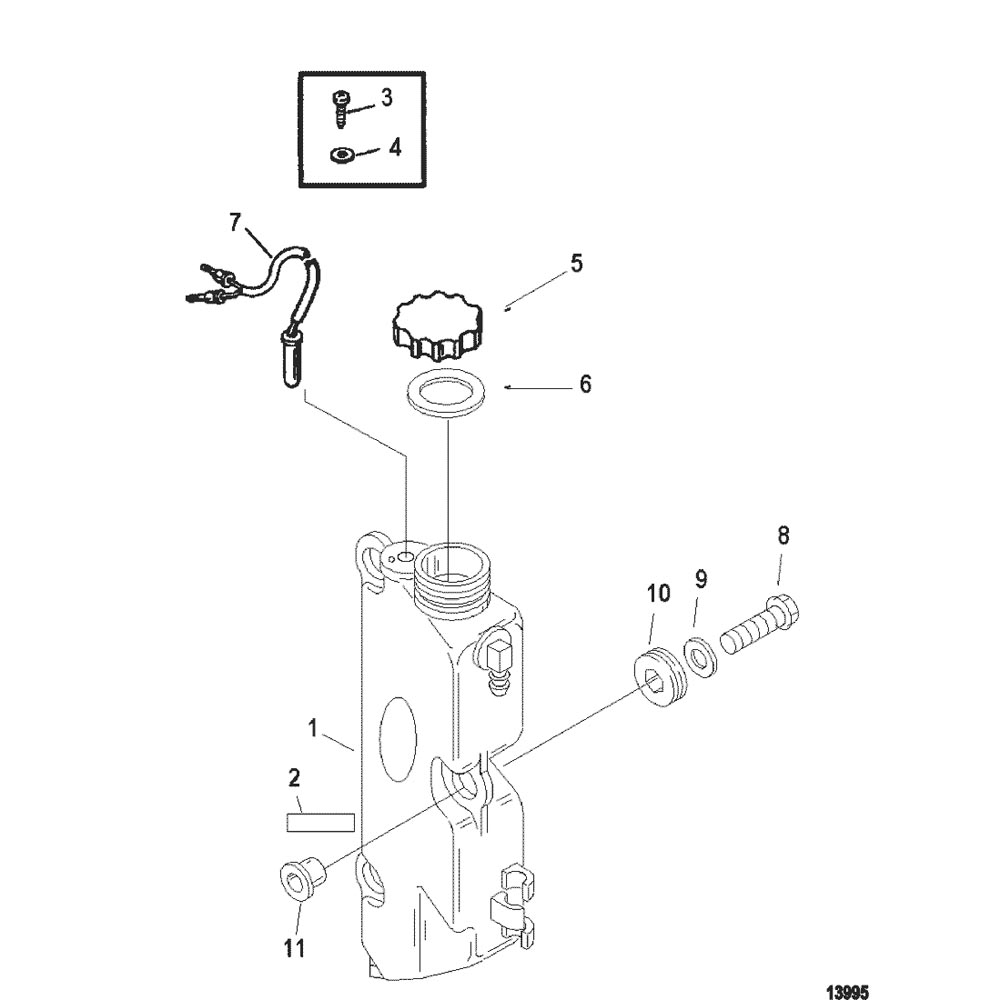

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons And Connecting Rods
- Drive Shaft Housing And Exhaust Tube
- Dual Engine Tie Bar Kit
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel Rails
- Fuel System
- Gear Housing, Driveshaft - SportMaster
- Gear Housing, Driveshaft - TorqueMaster
- Gear Housing, Driveshaft-Standard/Counter-FleetMaster
- Gear Housing, Propeller Shaft - SportMaster
- Gear Housing, Propeller Shaft - Torque Master
- Gear Housing, Propeller Shaft-Counter-FleetMaster
- Gear Housing, Propeller Shaft-Standard-FleetMaster
- Hydraulic Pump And Mounting Brackets
- Hydraulic Pump Assembly
- Oil Injection Components
- Port Center Main Oiling System
- Power Trim Components
- Solenoid Plate And Electrical Wiring
- Speedometer/Block Pressure System
- Starboard Center Main Oiling System
- Starter Motor
- Steering Attaching Kit
- Swivel Bracket(Heavy Duty)
- Swivel Bracket(With Integral Trim)
- Throttle Linkage
- Top Cowl
- Transom Bracket(Heavy Duty)
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 1270-8M0119508 | TANK ASSEMBLY | 1 | 830889A4 | |||||
| 2 | NSS | Decal - Reservoir | 1 | Not Sold Separate | |||||
| 3 | 10-58376 | SCREW, (.164-18 x .375) | 1 | ||||||
| 4 | 12-72761 | WASHER, (.203 x .562 x .060) Stainless Steel | 1 | ||||||
| 5 | 36-814449A3 | CAP ASSEMBLY | 1 | ||||||
| 6 | 27-42999T | GASKET | 1 | 42999 | |||||
| 7 | 87-856156T02 | SWITCH ASSEMBLY | 1 | 856156A2 | |||||
| 8 | 10-81893435 | SCREW, (M8 x 35) | 3 | ||||||
| 9 | 12-4002318 | WASHER | 3 | ||||||
| 10 | 25-855362001 | GROMMET | 3 | 855362 | |||||
| 11 | 23-855364 | BUSHING | 3 |
