250XS 3.0L DFI - Serial 0T651945 Thru 0T818042 - Coil Plate

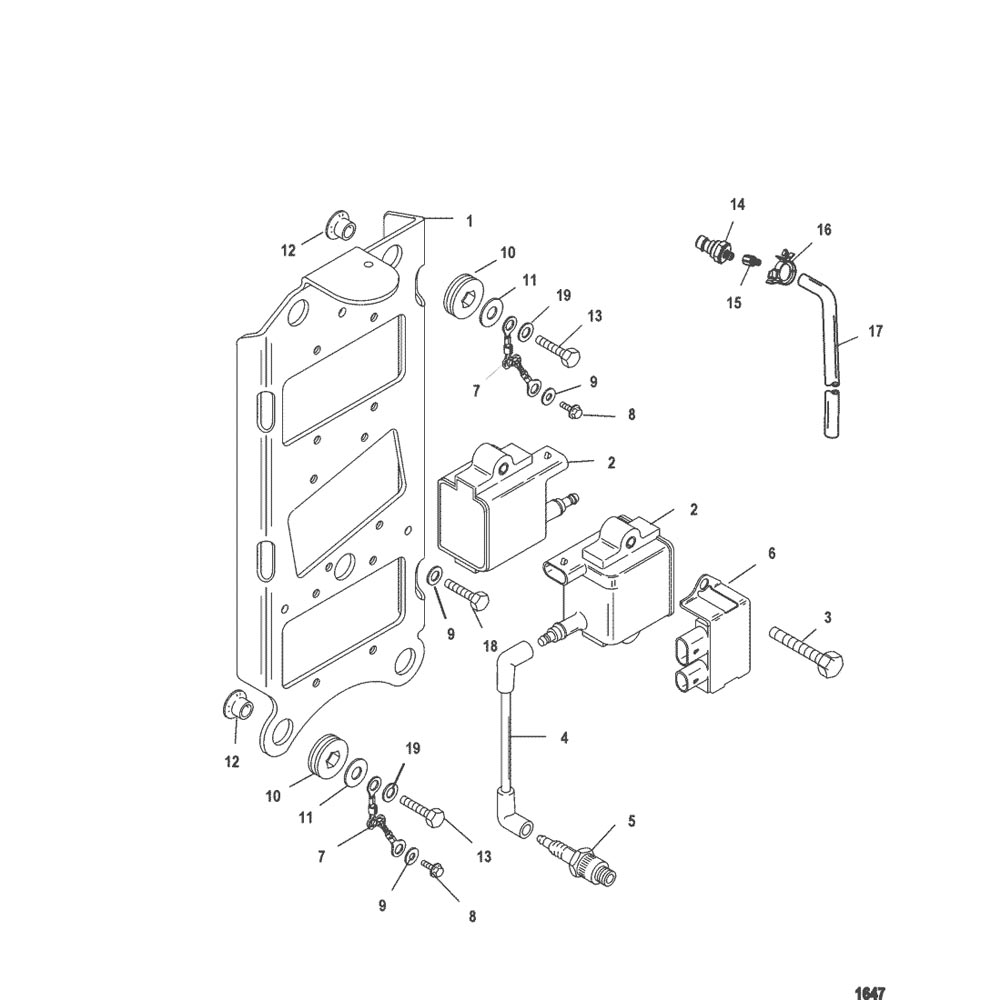

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 850295T4         PLATE 1
2 339-856991A1         COIL KIT 6
3 10-82129130         SCREW, (M6 x 30) 12
4 84-881908T         CABLE SET 6
5 33-889423         SPARK PLUG 6
6 859595T         DRIVER, Dual Coil 3
7 84-858414A1         CABLE ASSEMBLY, Braided 2
8 10-82129110         SCREW, (M6 x 10) 2
9 12-29245         WASHER, (.281 x .500 x .060) Stainless Steel 4
10 25-833155         GROMMET 4
11 12-4002318         WASHER 4
12 23-8502341         BUSHING 4
13 10-81893435         SCREW, (M8 x 35) 4
14 881879A7         SENSOR KIT, (0-50 PSI) 1
15 22-892403         FITTING 1 859431
16 54-883066         CLIP, (.865) 1
17 32-85978571         TUBING, (44.00 Inches Bulk) 1 85978568
18 10-82129114         SCREW, (M6 x 14) 2
19 12-36001         WASHER 2
