| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

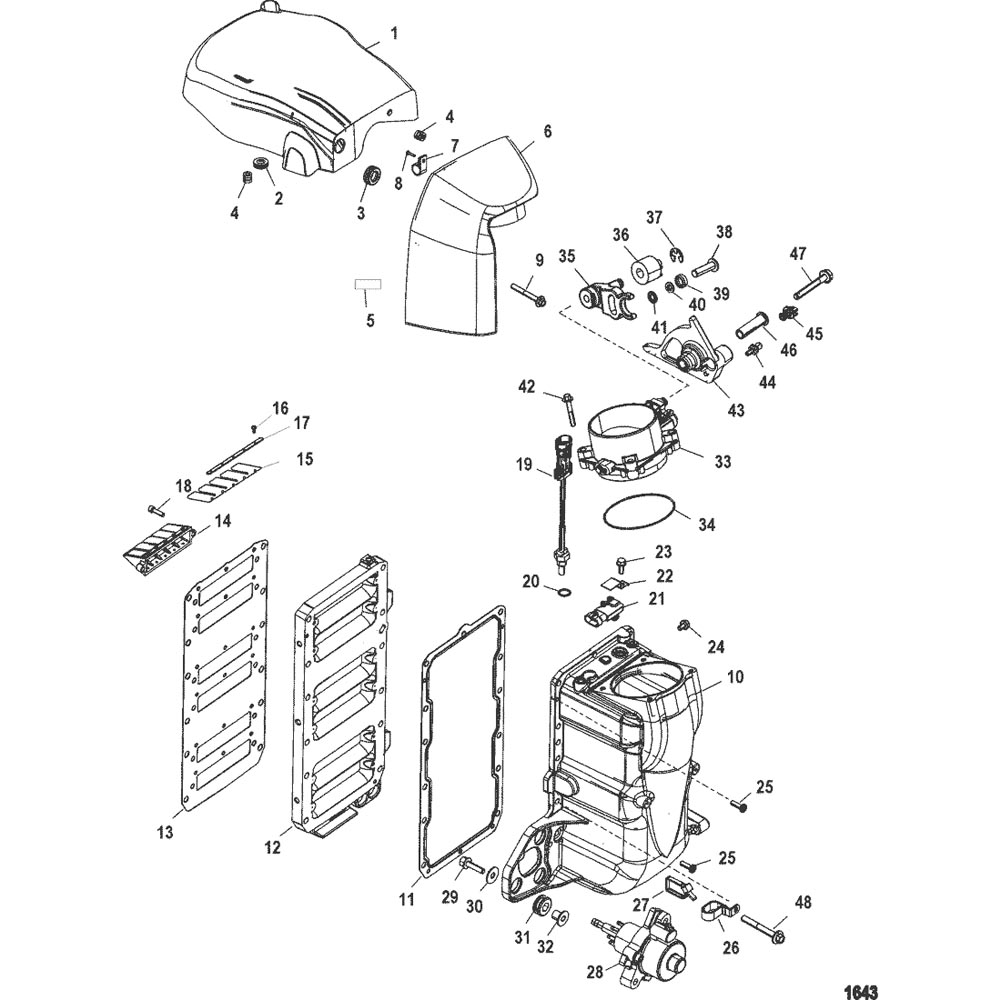

| 1 |
850296T05 |
|
|
|
|
COVER |
1 |
850296T5 |
|
| 2 |
25-86361 |
|
|
|
|
GROMMET |
1 |
|
|
| 3 |
25-13467 |
|
|
|
|
GROMMET, (.88 Inside Diameter) |
1 |
|
|
| 4 |
25-821555001 |
|
|
|
|
GROMMET |
2 |
821555 |
|
| 5 |
37-881865 |
|
|
|
|
DECAL, Caution-Start in Gear |
1 |
|
|
| 6 |
854343T11 |
|
|
|
|
ATTENUATOR ASSEMBLY, Air |
1 |
854343T10 |
|
| 7 |
54-23567 |
|
|
|
|
CLIP |
1 |
|
|
| 8 |
10-69570 |
|
|
|
|
SCREW, (#10-16 x .750) |
1 |
|
|
| 9 |
10-82130045 |
|
|
|
|
SCREW, (M6 x 45) |
1 |
|
|
| - |
878112T07 |
|
|
|
|
AIR HANDLER ASSEMBLY, Complete |
1 |
878112T3 |
|
| 10 |
858708T1 |
|
|
|
|
PLENUM KIT, Air |
1 |
858539T5 |
|
| 11 |
27-804679004 |
|
|
|
|
GASKET |
1 |
8046793 |
|
| 12 |
858541T4 |
|
|
|
|
ADAPTOR PLATE |
1 |
|
|
| 13 |
27-841220 |
|
|
|
|
GASKET |
1 |
|
|
| 14 |
840418T04 |
|
|
|
|
REED BLOCK ASSEMBLY |
6 |
840418T2 |
|
| 15 |
34-840445A04 |
|
|
|
|
REED PETAL KIT |
1 |
840445A3 |
|
| 16 |
10-849038 |
|
|
|
|
SCREW, (M3 x 5) |
60 |
|
|
| 17 |
840447 |
|
|
|
|
REED PLATE |
12 |
|
|
| 18 |
10-8555252 |
|
|
|
|
SCREW, (M6) |
12 |
|
|
| 19 |
889575 |
|
|
|
|
SENSOR ASSEMBLY, Temperature |
1 |
858535 |
|
| 20 |
25-627021 |
|
|
|
|
O-RING, (.301 x .070) |
1 |
|
|
| 21 |
854445 |
|
|
|
|
SENSOR, MAP |
1 |
|
|
| 22 |
884522 |
|
|
|
|
BRACKET, MAP Sensor |
1 |
|
|
| 23 |
10-1993716 |
|
|
|
|
SCREW, (M6 x 16) |
1 |
|
|
| 24 |
10-16955 |
|
|
|
|
SCREW, (M6 x 8) |
1 |
|
|
| 25 |
10-883942 |
|
|
|
|
SCREW, (M4 x 16) |
2 |
|
|
| 26 |
54-804842 |
|
|
|
|
CLAMP |
1 |
|
No Longer Available |
| 27 |
54-816311T |
|
|
|
|
TIE STRAP, (8.00 Inches) |
1 |
|
|
| 28 |
8M0101629 |
|
|
|
|
PUMP ASSEMBLY, Oil |
1 |
857149T2 |
|
| 29 |
10-81893430 |
|
|
|
|
SCREW, (M8 x 30) |
3 |
|
|
| 30 |
12-817274 |
|
|
|
|
WASHER, (.344 x 1.00 x .063) Stainless Steel |
3 |
|
|
| 31 |
25-855362001 |
|
|
|
|
GROMMET |
3 |
855362 |
|
| 32 |
23-855364 |
|
|
|
|
BUSHING |
3 |
|
|
| 33 |
841194T2 |
|
|
|
|
THROTTLE BODY KIT |
1 |
|
No Longer Available |
| 34 |
25-855426 |
|
|
|
|
O-RING |
1 |
|
|
| 35 |
8588511 |
|
|
|
|
LEVER ASSEMBLY, Throttle |
1 |
|
No Longer Available |
| 36 |
8M0072162 |
|
|
|
|
ROLLER |
1 |
840968 |
|
| 37 |
53-8237951 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 38 |
10-889354 |
|
|
|
|
SCREW, Special |
1 |
|
|
| 39 |
12-881991 |
|
|
|
|
WASHER, Cupped |
1 |
|
|
| 40 |
12-881992 |
|
|
|
|
WASHER, Spool |
1 |
|
No Longer Available |
| 41 |
13-69432 |
|
|
|
|
LOCKWASHER, External (#10) |
1 |
|
|
| 42 |
10-82130040 |
|
|
|
|
SCREW, (M6 x 40) |
4 |
|
|
| 43 |
858353T5 |
|
|
|
|
CAM ASSEMBLY |
1 |
|
|
| 44 |
8235694 |
|
|
|
|
BALL, Threaded |
1 |
|
|
| 45 |
23-932481 |
|
|
|
|
BUSHING |
1 |
|
|
| 46 |
23-8807371 |
|
|
|
|
BUSHING |
1 |
|
|
| 47 |
10-40011155 |
|
|
|
|
SCREW, (M8 x 55) Stainless Steel |
1 |
|
|
| 48 |
10-82130040 |
|
|
|
|
SCREW, (M6 x 40) |
11 |
|
|
| - |
27-841220A03 |
|
|
|
|
GASKET SET, Powerhead |
1 |
|
|
