500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Alternator Assembly (Mando AC-155603)

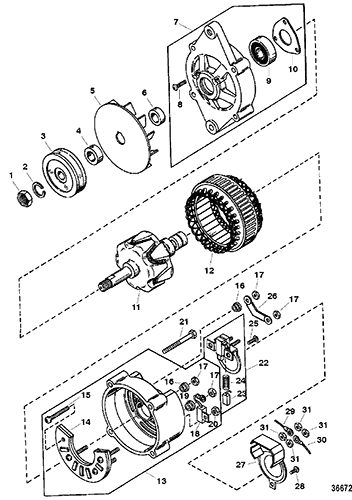

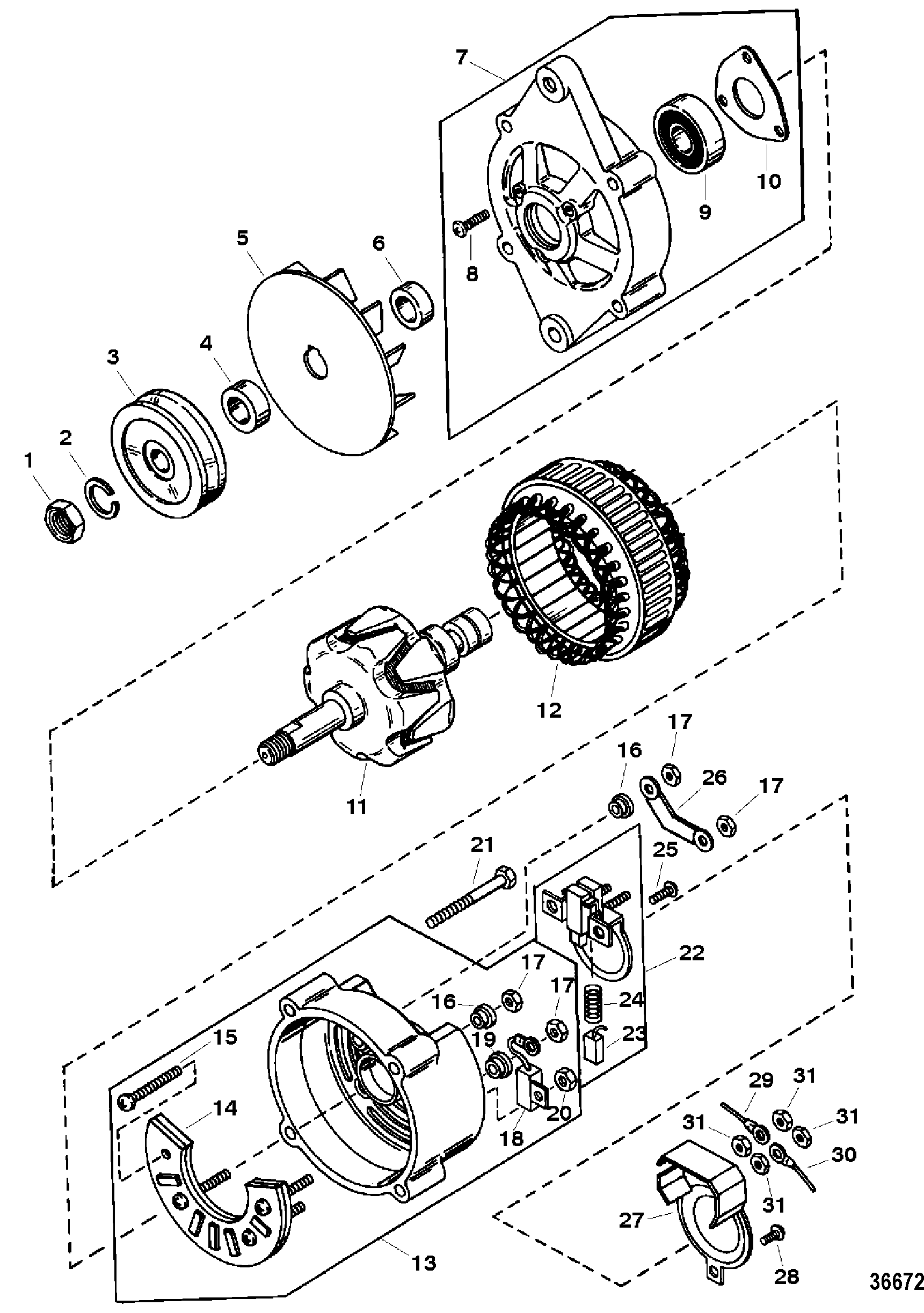

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 8171191         ALTERNATOR ASSEMBLY, Blue 1

1 11-809136         NUT 1 11-42768
2 13-42769         LOCKWASHER 1

3 809134         PULLEY 1 42770 This Part is No Longer Available
4 23-811865         SPACER 1

5 811866         FAN 1   This Part is No Longer Available
6 23-811867         SPACER 1   This Part is No Longer Available
7 811868         BRACKET ASSEMBLY, Front 1

8 10-811869         SCREW 3   This Part is No Longer Available
9 30-811870         BEARING, Ball 1

10 811871         RETAINER 1   This Part is No Longer Available
11 811872         ROTOR ASSEMBLY 1   This Part is No Longer Available
12 811873T         STATOR ASSEMBLY 1   This Part is No Longer Available
13 811874T         BRACKET ASSEMBLY, Rear 1

14 811875T         RECTIFIER ASSEMBLY 1

15 10-811876         SCREW 1   This Part is No Longer Available
16 811877         HOLD 2   This Part is No Longer Available
17 11-811878         NUT 4

18 811879         CONDENSER ASSEMBLY 1

19 811880         HOLD 1

20 11-811881         NUT 1

21 10-42773         THRU BOLT 4   This Part is No Longer Available
22 811883T         REGULATOR ASSEMBLY 1

23 811884         BRUSH 2

24 24-811885         SPRING, Brush 2   This Part is No Longer Available
25 10-811886         SET SCREW 2
No longer made, limited availability
26 811887         TERMINAL 1   This Part is No Longer Available
27 811888         COVER 1   This Part is No Longer Available
28 10-811889         SET SCREW 1   This Part is No Longer Available
29 84-811890         WIRE, Red, Lead 1   This Part is No Longer Available
30 84-811891         WIRE, Purple, Lead 1   This Part is No Longer Available
31 11-811878         NUT 4
