500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Cylinder Head - Rocker Cover

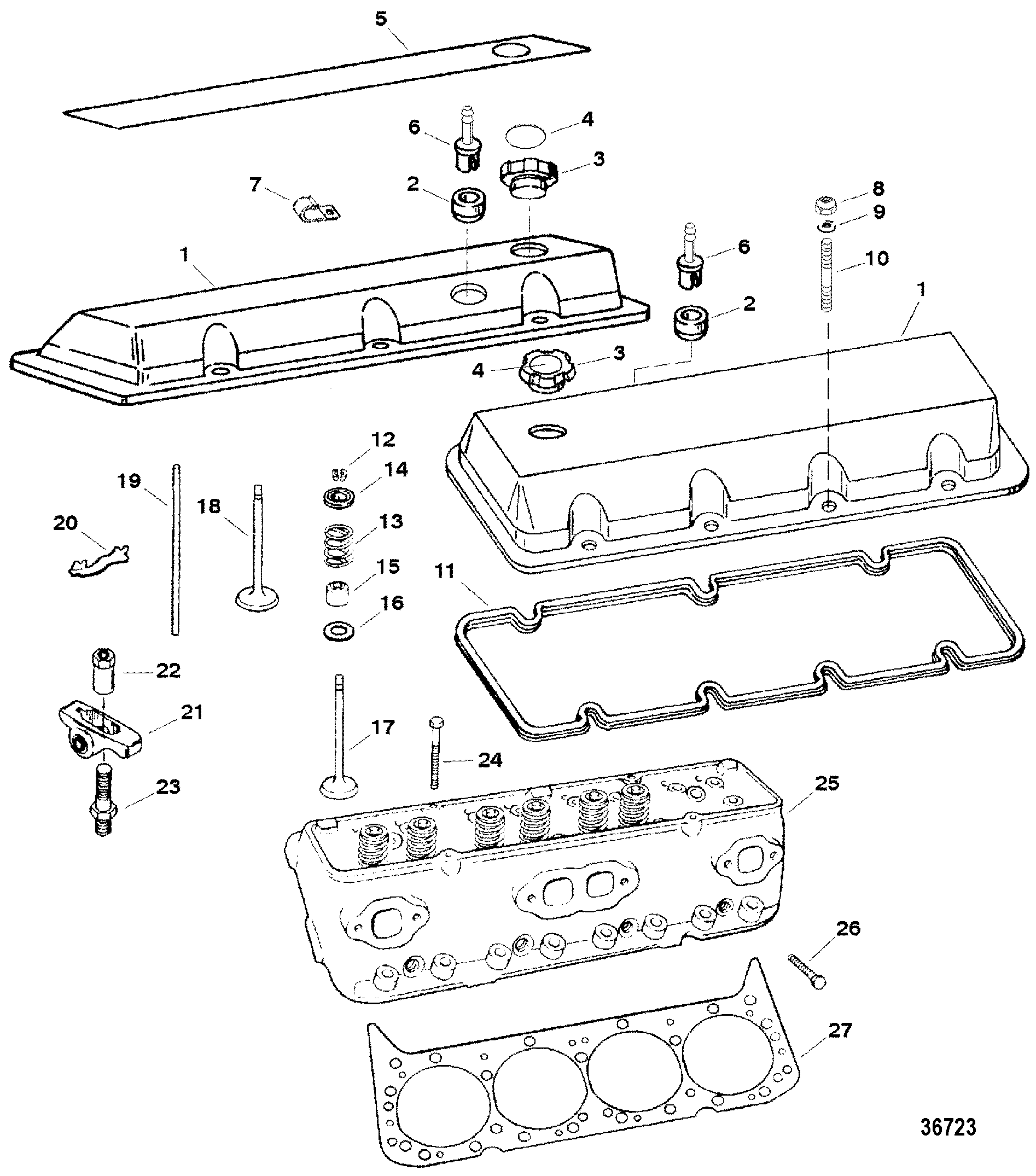

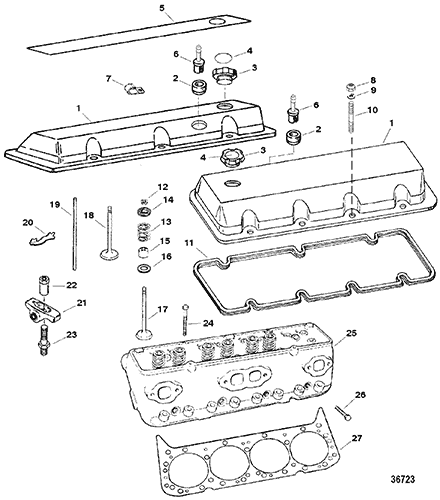

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849702A11



COVER ASSEMBLY, Rocker Cover (Blue) 2 849702T10 5
2 25-811553



GROMMET, Rocker Cover 2

3 845753T1



CAP, Oil Filler 2 36-802566T
4 37-849950



DECAL, Oil Fill Cap 2

5 38-841247



NAMEPLATE, Rocker Cover 2 38-842184T
6 22-8485571



FITTING 2
5
7 54-642352



J CLIP 1
5
8 11-35888
676-9-72001 700-21180
NUT, (.250-28) Stainless Steel 14
5
9 12-846673



WASHER, (.265 x .500 x .060) Stainless Steel 14
5
10 16-56766



STUD, (.250-20/.250-28 x 1.380), Rocker Cover 14
5
11 27-811588



GASKET, Rocker Cover 2
2,5
12 8M0042989



KEY, Valve Stem 32 960281 5
13 24-845617A2



SPRING/RETAINER KIT 16 24-845617A1 5
14 843465



RETAINER 16 845592
15 26-69285



SEAL, Valve 8
(Intake) 2,5
15 26-842755



SEAL, Valve 8 26-843334 (Exhaust) 2,5
16 15-845669



SHIM, Valve Spring (.015) AR 15-54531 5
16 15-77624



SHIM, Valve Spring (.030) AR
5
17 843080



VALVE, Exhaust 8 13024 5
18 821024T



VALVE, Intake, Inlet (2.250 Diameter) 8
(Standard) 5
19 848262



PUSH ROD, (7.550), Valve Push 8
(Inlet) 5
19 848264



PUSH ROD, (8.550), Valve Push 8
(Exhaust) 5
20 845707



GUIDE, Push Rod 8 811586 5
21 845618T



ROCKER ARM ASSEMBLY 16
5
22 11-848610



NUT, Rocker Arm Valve 16
5
23 16-821836



STUD, Roacker Arm Valve 16
5
24 10-8M0000482



BOLT, (4.125 Inch), Cylinder Head 24 10-49105 5
25 938-845704T5



CYLINDER HEAD ASSEMBLY 2 938-826363A10 5
26 10-8M0000463



BOLT (2.00)-Cylinder Head 8 10-491061 5
27 27-811546A04



GASKET, Cylinder Head 2 27-8115462 2,5
- 27-818572A98



GASKET SET, Engine Overhaul 1
