Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

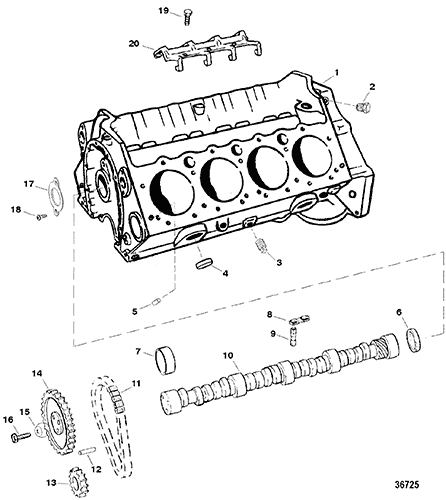

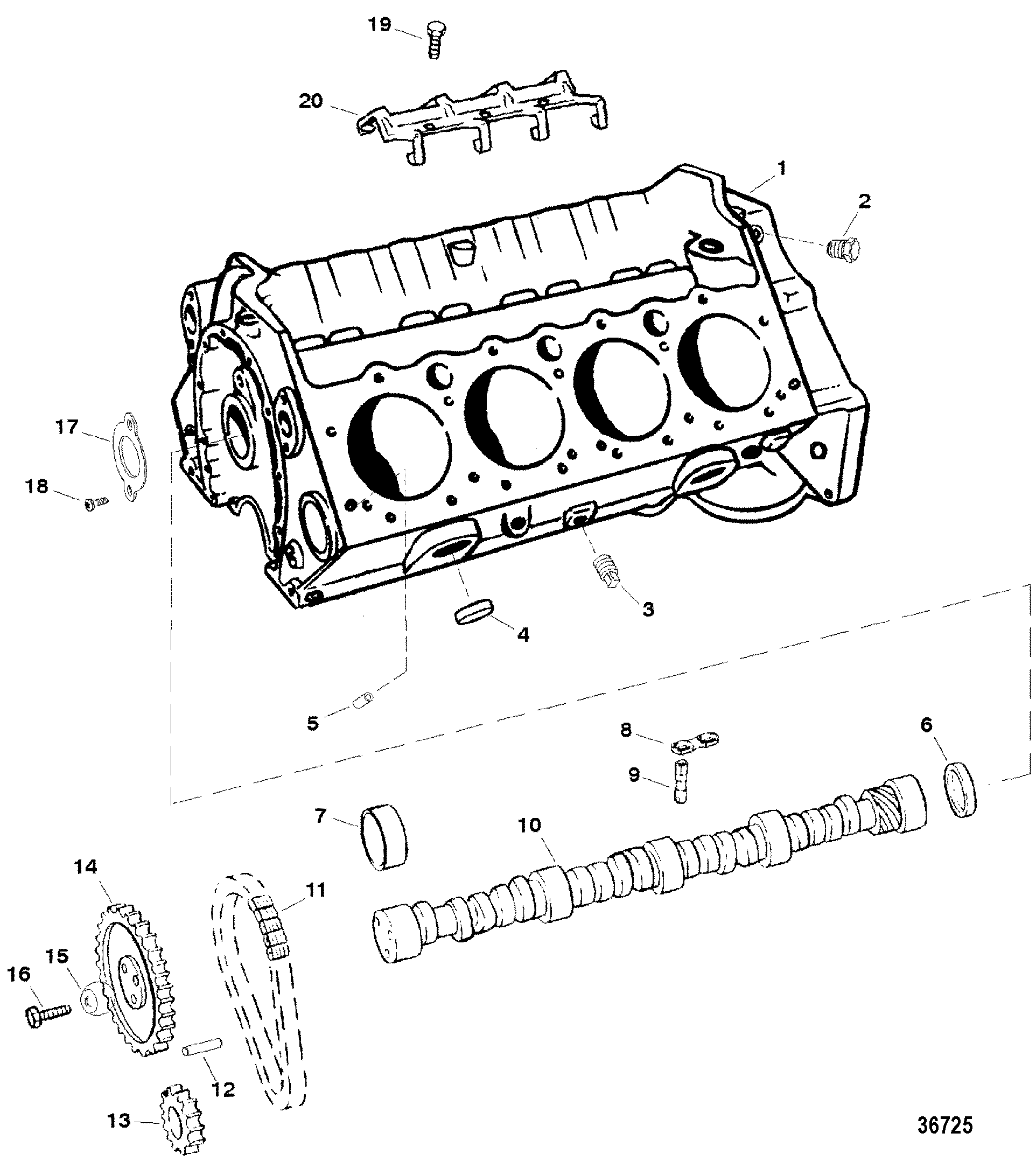

1 |
848170A8 |
|
|
|
|
PARTIAL ENGINE ASSEMBLY |
1 |
848170A7 |
This Part is No Longer Available (NOTE: Bravo Models With Driveline Also Require Pilot Bushing Part Number 23-823108) |
2 |
22-48340 |
|
|
|
|
PLUG, (.250-18 x .41), Pipe |
4 |
|
|
2 |
22-48358T |
|
|
|
|
PLUG, (.375), Pipe |
2 |
22-48358 |
|
3 |
22-36382 |
|
|
700-21887 |
|
FITTING, (.250-18 x .62) Brass, Drain |
2 |
|
|
4 |
22-69300 |
|
|
|
|
EXPANSION PLUG, (1.750 Diameter) |
8 |
|
|
5 |
17-52190 |
|
|
|
|
PIN, Dowel |
4 |
|
|
6 |
19-94140 |
|
|
|
|
EXPANSION PLUG |
1 |
|
|
7 |
23-85684 |
|
|
|
|
BEARING SET |
1 |
|
|
8 |
845754 |
|
|
|
|
GUIDE, Lifter |
8 |
850474 |
5 |
9 |
849947T01 |
|
|
|
|
LIFTER, Roller |
16 |
849947T |
5 |
10 |
2409-848906 |
|
|
|
|
CAMSHAFT |
1 |
|
5 |
11 |
845796T |
|
|
|
|
CHAIN, Timing |
1 |
811580 |
5 |
12 |
17-843378 |
|
|
|
|
PIN, Dowel (.250 Diameter) |
1 |
17-35312 |
5 |
13 |
43-878055 |
|
|
|
|
SPROCKET, Crankshaft |
1 |
|
(NOTE: These Timing Gears Have A Different Chain Off-Set Than Prior Gears. They Must Not Be Intermixed Between Camshaft And Crankshaft. Order Ref 13 And 14 As A Set When Replacing Gears) 5 |
14 |
43-878056 |
|
|
|
|
SPROCKET, Camshaft |
1 |
|
(NOTE: These Timing Gears Have A Different Chain Off-Set Than Prior Gears. They Must Not Be Intermixed Between Camshaft And Crankshaft. Order Ref 13 And 14 As A Set When Replacing Gears) 5 |
15 |
12-848136 |
|
|
|
|
WASHER, (.328 x .680 x .190) |
3 |
|
5 |
16 |
10-34505 |
|
|
|
|
SCREW, (.312-18 x .875) |
3 |
|
5 |
17 |
845941 |
|
|
|
|
RETAINER, Gear Thrust |
1 |
811663 |
5 |
18 |
10-17343 |
|
|
|
|
SCREW, (.250-20 x .500) |
2 |
|
No longer made, limited availability 5 |
19 |
10-808707 |
|
|
|
|
SCREW, (.312-18 x .625) |
4 |
|
5 |
20 |
8M0050807 |
|
|
|
|
RETAINER, Lifter Guide |
1 |
850479 |
5 |
NS |
92-809825 |
|
|
|
|
RTV SILICONE, (3 Ounce Tube) Metallic Blue |
AR |
|
(Where Applicable) |
NS |
34227Q02 |
|
|
|
|
SEALING COMPOUND, (16 Ounce) |
AR |
92-342271 |
(Where Applicable) |
NS |
27-818572A98 |
|
|
|
|
GASKET SET, Engine Overhaul |
1 |
|
|
