500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Starter Assembly

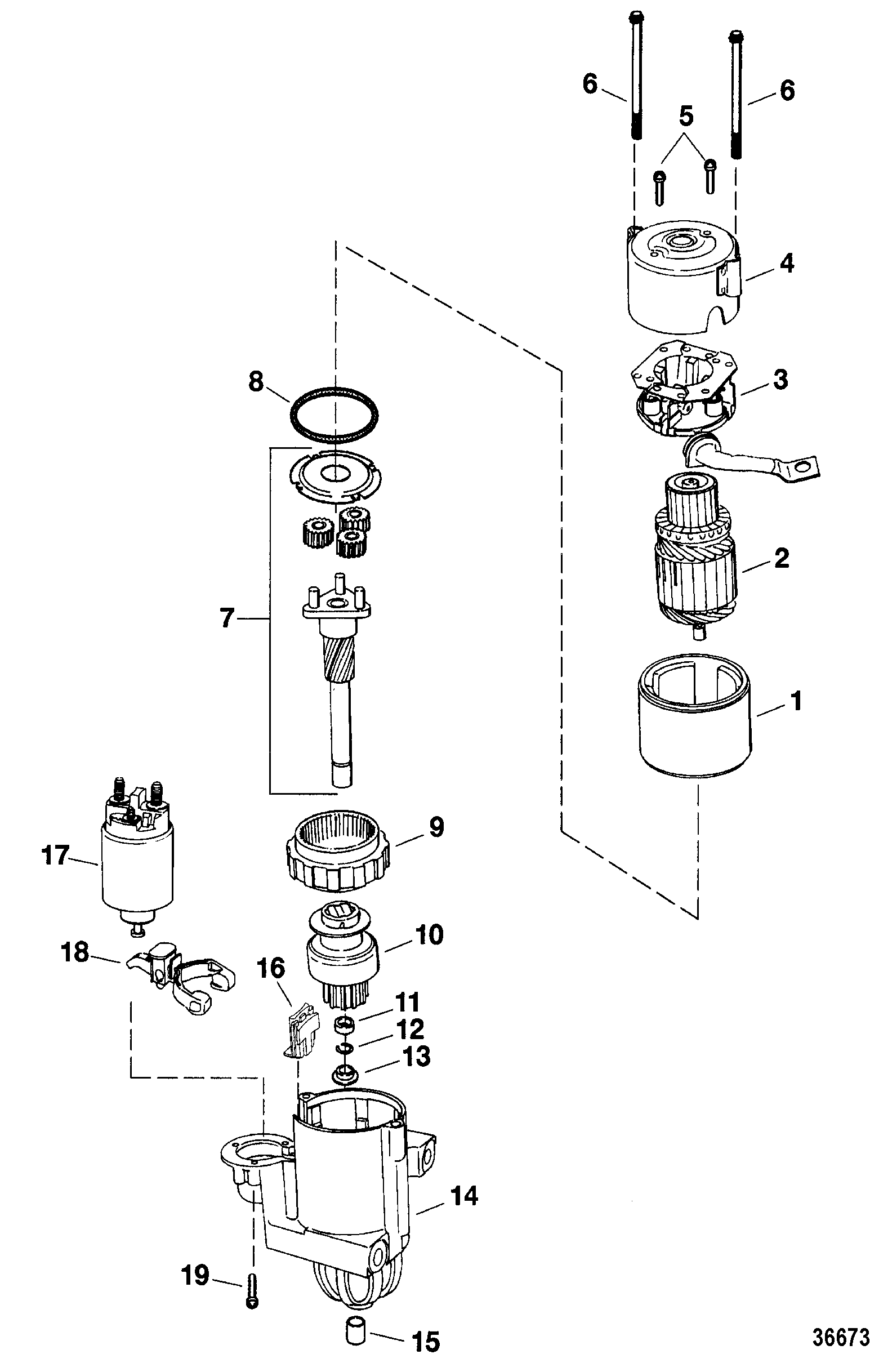

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 50-863007A1 620-5399M 676-9-15907   602-10099MD STARTER MOTOR ASSEMBLY (Complete) 1 50-806964A3
2 NSS         NOT SOLD SEPARATE, ARMATURE 1
This Part is not sold separately
3 NSS         NOT SOLD SEPARATE, BRUSH HOLDER AND SPRING 1
This Part is not sold separately
4 NSS         NOT SOLD SEPARATE, FRAME 1
This Part is not sold separately
5 NSS         NOT SOLD SEPARATE, SCREW 2
This Part is not sold separately
6 NSS         NOT SOLD SEPARATE, THRU BOLT 2
This Part is not sold separately
7 NSS         NOT SOLD SEPARATE, SHAFT AND GEAR 1
This Part is not sold separately
8 NSS         NOT SOLD SEPARATE, GASKET 1
This Part is not sold separately
9 NSS         NOT SOLD SEPARATE, GEAR 1
This Part is not sold separately
10 NSS         NOT SOLD SEPARATE, DRIVE 1
This Part is not sold separately
11 33291         COLLAR 1

12 53-33290         RING, Retaining 1

13 NSS         NOT SOLD SEPARATE, THRUST COLLAR 1
This Part is not sold separately
14 809459         HOUSING, Drive 1   This Part is No Longer Available
15 23-814476         BUSHING 1   This Part is No Longer Available
16 NSS         NOT SOLD SEPARATE, GROMMET 1
This Part is not sold separately
17 809463A1   676-9-15125 700-72450   SOLENOID KIT 1

18 NSS         NOT SOLD SEPARATE, LEVER 1
This Part is not sold separately
19 NSS         NOT SOLD SEPARATE, SCREW 3
This Part is not sold separately
