500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Starter And Alternator

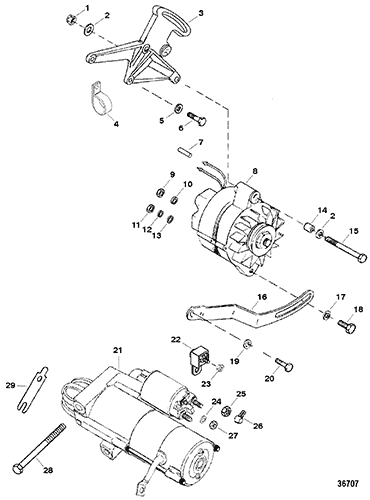

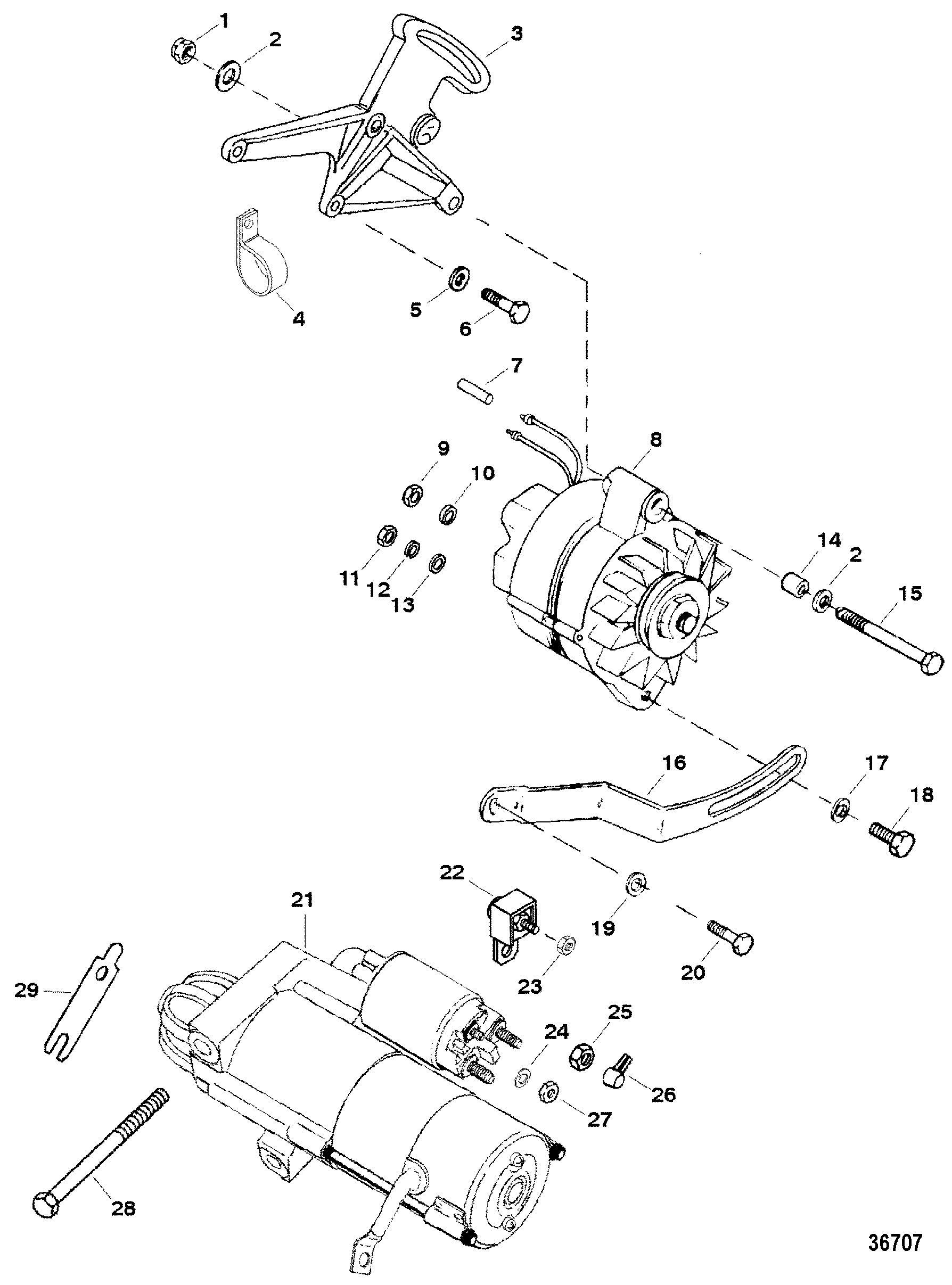

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 11-23161



NUT, (.375-24) 1

2 12-20553

700-21675
WASHER, (.406 x .734 x .063) 3

3 848146T



BRACKET, Alternator Mount 1

4 54-848130



CLIP, Circulating Pump Hose 1
No longer made, limited availability
5 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 3

6 10-99204



SCREW, (.437-14 x 1.00) Stainless Steel 2

6 10-825427



SCREW, (.437-14 x 1.250) Stainless Steel 1

7 5790811



SLEEVE, (10.00 Inches Bulk), Alternator Lead 1

8 8171191



ALTERNATOR ASSEMBLY, Blue 1
(See Aternator Section For Service Parts Breakdown)
9 11-8267098



NUT, (.250-20) 1 11-56374
10 13-26992



LOCKWASHER, (.250) Stainless Steel 1

11 11-79989



NUT, (#10-24) Stainless Steel 1

12 13-26996



LOCKWASHER, (#10) Stainless Steel 1

13 12-96457



WASHER 1

14 23-33186



BUSHING 1

15 10-48308



SCREW, (.375-24 x 3.750) 1

16 85013T



BRACE, Alternator Adjusting 1

17 12-26168



WASHER 1

18 10-29198



SCREW AND LOCKWASHER, (.312-18 x .875) 1

19 12-45176

700-28420
WASHER, (.453 x .812 x .105) Stainless Steel 1

20 10-99204



SCREW, (.437-14 x 1.00) Stainless Steel 1

21 50-863007A1 620-5399M 676-9-15907
602-10099MD STARTER MOTOR ASSEMBLY (Complete) 1 50-806964A3 (See Starter Assembly Section For Service Parts Breakdown)
22 88-79023A91
676-9-15510

FUSE ASSEMBLY, 90 Ampere 1

23 11-826709109


525-11-826709109 NUT, (.250-28) 1 11-35045
24 13-26996



LOCKWASHER, (#10) Stainless Steel 1

25 11-401388



NUT, (M8) 1 11-400635
26 85-79695T



BOOT, Insulator - Black 1 85-79695
27 11-400211



NUT, (M5) Stainless Steel 1
28 10-8053432



SCREW, (.375-16 x 4.33) (Special) 2
29 15-8172721



SHIM (Special) 1
