| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

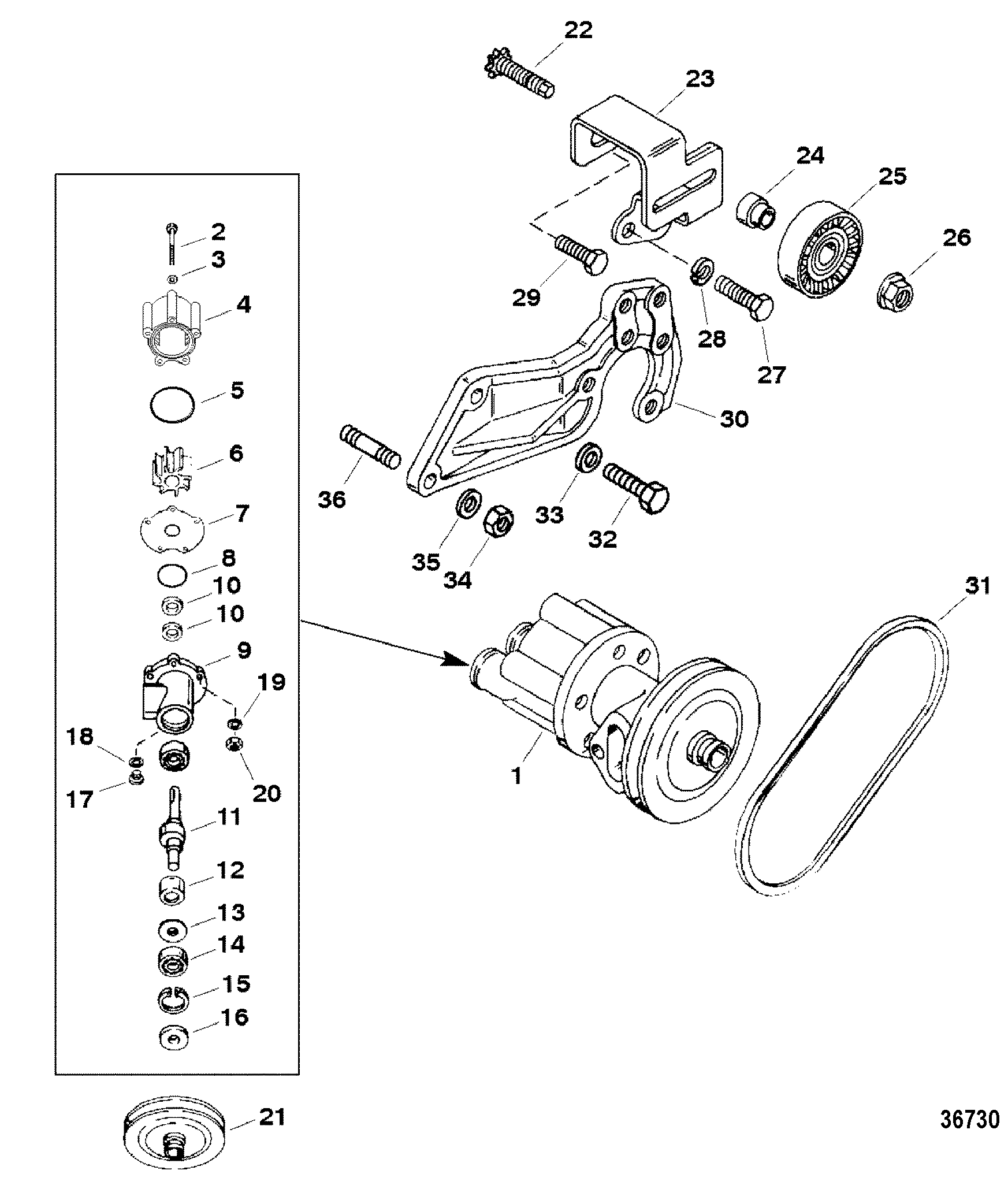

| 1 |
46-807151A8 |
|
|
|
|
PUMP ASSEMBLY, Sea Water |
1 |
|
|
| 2 |
10-74822 |
|
|
|
|
SCREW, (.312-18 x 3.500) |
5 |
|
|
| 3 |
12-814806 |
|
|
700-21662 |
|
WASHER, (.344 x .688 x .065) Stainless Steel |
5 |
|
|
| 4 |
46-807151A14 |
|
676-9-48350 |
|
|
BODY/IMPELLER KIT, Sea Water Pump |
1 |
|
|
| 5 |
25-33465 |
|
676-9-76516 |
700-81430 |
525-25-33465 |
O-RING |
1 |
|
|
| 6 |
47-59362T1 |
625-4011 |
676-9-45375 |
700-89740 |
|
IMPELLER |
1 |
|
|
| 7 |
94576 |
|
|
700-12501 |
|
WEAR PLATE |
1 |
|
|
| 8 |
25-94288 |
|
|
|
|
QUAD RING |
1 |
|
|
| 9 |
818367A1 |
|
|
|
|
HOUSING ASSEMBLY, Sea Water Pump |
1 |
|
|
| 10 |
26-90562 |
|
676-9-76107 |
700-85080 |
|
SEAL, (1.254 x .312), Oil |
2 |
|
|
| 11 |
818366A1 |
|
|
|
|
SHAFT KIT, Sea Water Pump |
1 |
|
|
| 12 |
818745A1 |
|
|
|
|
RING KIT, Slip |
1 |
|
|
| 13 |
12-89664 |
|
|
|
|
WASHER, (.920 x 1.750 x .060) |
1 |
|
|
| 14 |
30-72961 |
|
676-9-43220 |
|
|
BEARING, Ball |
2 |
|
|
| 15 |
53-23720 |
|
|
|
|
RING, Retaining |
1 |
|
|
| 16 |
26-806930 |
|
|
|
|
SEAL, Oil |
1 |
|
|
| 17 |
10-79953Q04 |
|
|
|
|
SCREW KIT, (.375-16 x .250) , Drain |
1 |
10-79953A2 |
|
| 18 |
12-191833 |
|
|
|
525-12-191833 |
WASHER, Fiber, Seal |
1 |
12-19183 |
|
| 19 |
13-39107 |
|
|
700-21496 |
|
LOCKWASHER, (.312) |
5 |
|
|
| 20 |
11-21908 |
|
|
|
|
NUT, (.312-18) Cad Plated |
5 |
|
|
| 21 |
8183651 |
|
|
|
|
PULLEY (Blue) |
1 |
|
|
| 22 |
43-8183812 |
|
|
|
|
PINION STUD, (.437-20) Stainless Steel |
1 |
|
|
| 23 |
818379T |
|
|
|
|
BRACKET, Idler |
1 |
|
|
| 24 |
865193 |
|
|
|
|
BUSHING, Idler Pulley |
1 |
818380T |
|
| 25 |
8M6500024 |
|
|
|
|
PULLEY, Idler |
1 |
818382 |
|
| 26 |
11-859135 |
|
676-9-78116 |
|
|
NUT, (.437-20) |
1 |
11-817618 |
|
| 27 |
10-76926 |
|
|
|
|
SCREW, (.375-16 x .875) |
2 |
|
|
| 28 |
13-35048 |
|
|
700-21495 |
|
LOCKWASHER, (.375) |
2 |
|
|
| 29 |
10-17965 |
|
|
|
|
SCREW, (.437-14 x .70) |
1 |
|
|
| 30 |
818368T1 |
|
|
|
|
BRACKET, Sea Water Pump |
1 |
|
|
| 31 |
57-69143Q |
|
|
|
|
V BELT |
1 |
57-69143T |
|
| 32 |
10-47462 |
|
|
|
|
SCREW, (.437-14 x 1.250) |
1 |
|
|
| 33 |
13-32993 |
|
|
|
|
LOCKWASHER, (.437) |
1 |
|
|
| 34 |
11-22024 |
|
|
|
|
NUT, (.437-14) |
1 |
|
|
| 35 |
13-32993 |
|
|
|
|
LOCKWASHER, (.437) |
1 |
|
|
| 36 |
16-806591 |
|
|
|
|
STUD |
1 |
|
|
