500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Intake Manifold And Front Cover

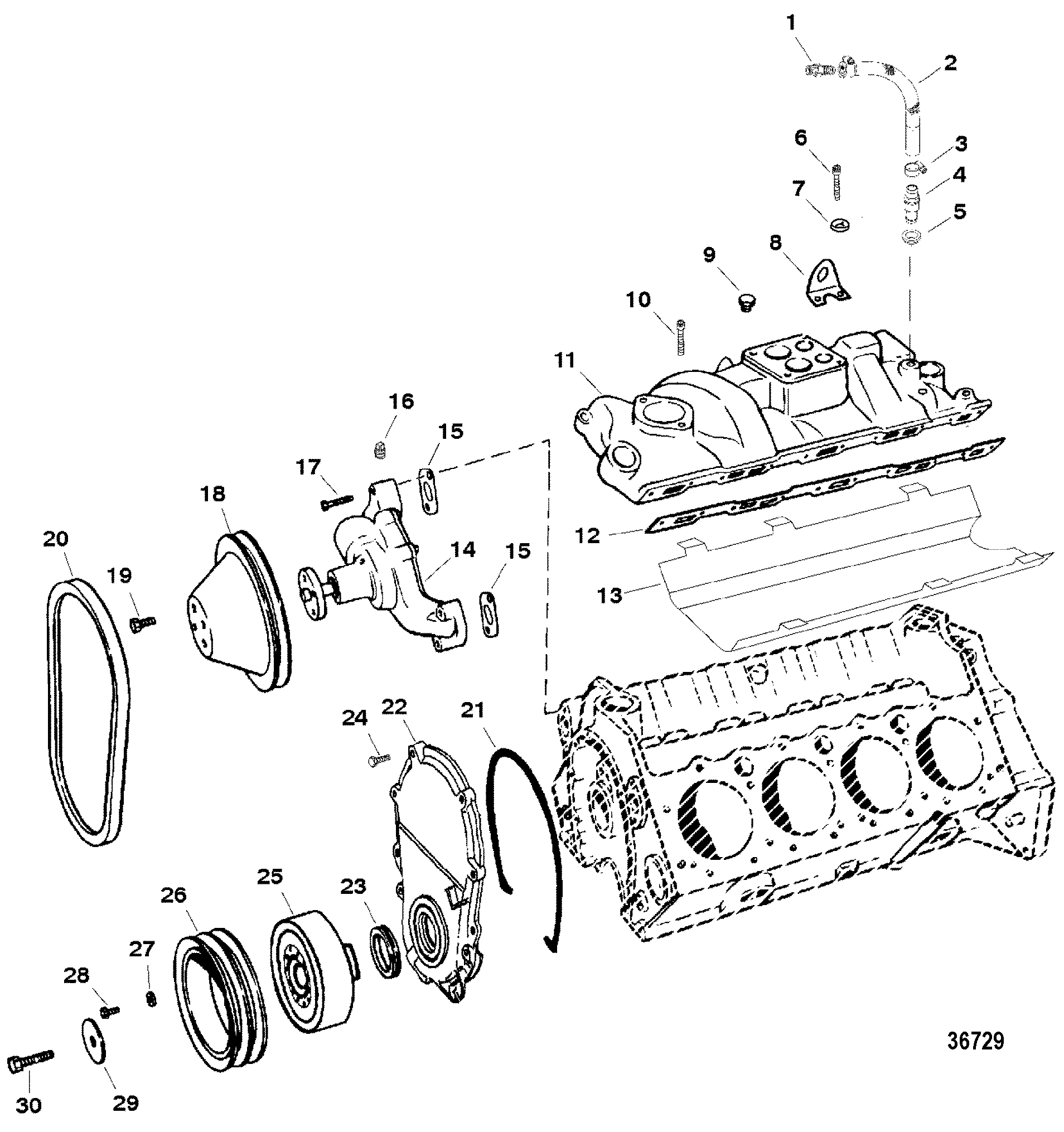

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 22-8604901         FITTING 1

2 32-823229A4         HOSE ASSEMBLY (6.750 Inches) 1

3 54-815504104         CLAMP, Worm Gear 1

4 848578         VALVE ASSEMBLY, Crankcase Vent 1

5 25-811553         GROMMET 1
5
6 10-812567         SCREW, (.375-16 x 1.625) 4
5
7 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 12
5
8 54-64628         LIFTING EYE 2 54-64628T1 5
9 22-36382     700-21887   FITTING, (.250-18 x .62) Brass, Manifold 4
5
10 10-848160         SCREW, (.375-16 x 1.375) Stainless Steel 8
5
11 848554T2         MANIFOLD ASSEMBLY, Intake (Blue) 1
5
12 27-8181881         GASKET 2
2,5
13 845756T         SHIELD, Oil Intake, Heat 1 816073 5
14 8504541         PUMP ASSEMBLY, Water 1 811573 5
15 27-49110         GASKET, Circulating Water Pump Mount 2
2
16 22-845174         PLUG (.500) 1 22-61162 5
17 10-805611         SCREW, (.375-16 x 1.750) 4 10-811574 5
18 196921         PULLEY (Blue) 1   This Part is No Longer Available
19 10-849198         SCREW, (.312-24 x .750) Stainless Steel 4

20 57-816034Q         V BELT 1 57-816034
21 27-850456         GASKET, Front Cover Mount 1
2,5
22 845610T         COVER ASSEMBLY, Front 1 850459 5
23 26-8219471         SEAL, Oil 1
2
24 10-850455         SCREW 10
5
25 845625T2         BALANCER 1 850460 5
26 90081T         PULLEY (Blue) 1 845683 5
27 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 3
5
28 10-358701         SCREW, (.375-16 x 2.00) 3
5
29 12-49103         WASHER 1
5
30         SCREW, (.500-20 x 2.500) 1 10-811559 5
- 27-818572A98         GASKET SET, Engine Overhaul 1
