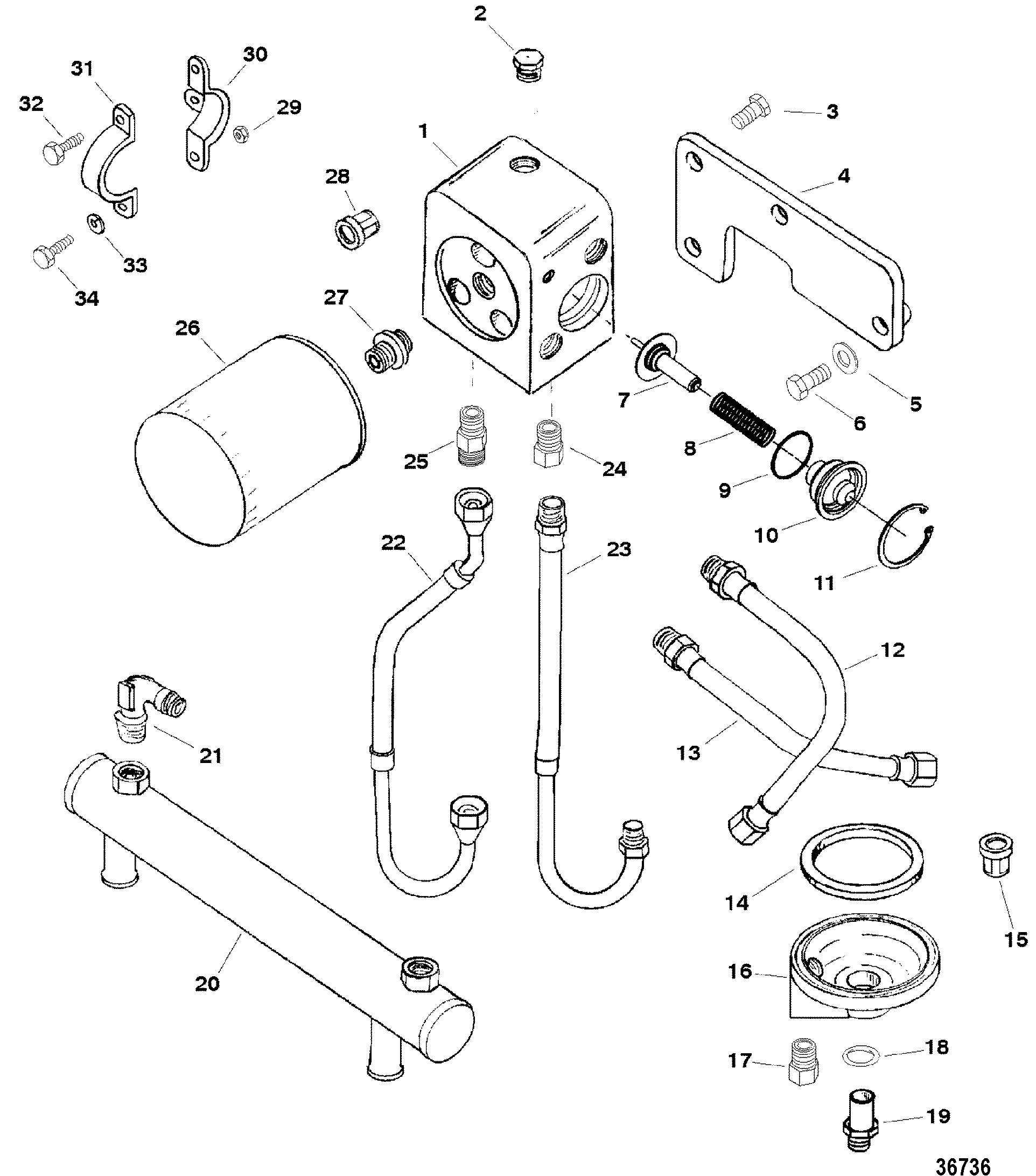

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |
| 1 |
848555T |
|
|
|
|
ADAPTOR, Oil Filter |
1 |
|
|
| 2 |
22-32804 |
|
|
|
|
PLUG, (.500-14) |
1 |
|
|
| 3 |
10-99204 |
|
|
|
|
SCREW, (.437-14 x 1.00) Stainless Steel |
2 |
|
|
| 4 |
8485562 |
|
|
|
|
BRACKET, Oil Adaptor |
1 |
|
|
| 5 |
12-45176 |
|
|
700-28420 |
|
WASHER, (.453 x .812 x .105) Stainless Steel |
2 |
|
|
| 6 |
10-825427 |
|
|
|
|
SCREW, (.437-14 x 1.250) Stainless Steel |
2 |
|
|
| 7 |
816163 |
|
|
|
|
THERMOSTAT |
1 |
|
|
| 8 |
24-816162 |
|
|
|
|
SPRING |
1 |
|
|
| 9 |
25-864701 |
|
|
|
|
O-RING, (1.112 x .103) |
1 |
25-47632 |
|
| 10 |
8161651 |
|
|
|
|
COVER, Oil Thermostat |
1 |
|
|
| 11 |
53-848571 |
|
|
|
|
RING, Retaining, Snap |
1 |
|
|
| 12 |
32-8485742 |
|
|
|
|
HOSE ASSEMBLY (14.500 Inches) |
1 |
|
|
| 13 |
32-8485741 |
|
|
|
|
HOSE ASSEMBLY (13.380 Inches) |
1 |
|
This Part is No Longer Available |
| 14 |
27-91892 |
|
|
700-32390 |
|
GASKET |
1 |
|
2 |
| 15 |
|
|
|
|
VALVE, Relief, By Pass |
1 |
|
(Cylinder Block) |
| 16 |
35-818400A1 |
|
|
|
|
ADAPTOR |
1 |
|
|
| 17 |
22-805563 |
|
|
|
|
CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) |
1 |
|
|
| 18 |
26-42077 |
|
|
|
|
SEAL, Swivel Tube |
1 |
|
|
| 19 |
22-806121 |
|
|
|
|
FITTING |
1 |
|
|
| 20 |
848192T |
|
|
|
542-848192-T |
COOLER, Oil |
1 |
|
|
| 21 |
22-706811 |
|
|
|
|
ELBOW, 90 Degree |
2 |
|
|
| 22 |
32-848573 |
|
|
|
|
HOSE ASSEMBLY |
1 |
|
(Remote Oil To Adaptor) |
| 23 |
32-848572 |
|
|
|
|
HOSE ASSEMBLY |
1 |
|
(Remote Oil To Adaptor) |
| 24 |
22-805563 |
|
|
|
|
CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare) |
1 |
|
|
| 25 |
22-806186 |
|
|
|
|
FITTING |
1 |
|
|
| 26 |
35-16595Q |
|
676-9-57811 |
|
|
FILTER, Oil |
1 |
35-16595T |
|
| 27 |
22-805632 |
|
|
|
|
CONNECTOR, Oil Fitler |
1 |
|
|
| 28 |
99889 |
|
|
|
|
VALVE, By Pass |
1 |
|
(Oil Adaptor) |
| 29 |
11-30506 |
|
|
|
|
NUT, (.250-28) |
4 |
|
(Driveline Models) |
| 30 |
8161951 |
|
|
|
|
BRACKET, Oil Cooler |
2 |
|
This Part is No Longer Available (Plug In Models) |
| 30 |
12820 |
|
|
|
|
BRACKET, Oil Cooler |
2 |
|
(Driveline Models) |
| 31 |
56328A1 |
|
|
|
|
BRACKET, Oil Cooler |
2 |
|
(All Models) |
| 32 |
10-805559 |
|
|
|
|
SCREW, (.375-16 x .875) Stainless Steel |
2 |
|
|
| 33 |
13-26992 |
|
|
|
|
LOCKWASHER, (.250) Stainless Steel |
4 |
|
|
| 34 |
10-49668 |
|
|
|
|
SCREW, (.250-20 x .750) |
4 |
|
|
| 34 |
10-69028 |
|
|
|
|
SCREW, (.250-28 x .750) Stainless Steel |
4 |
|
(Driveline Models) |
| - |
27-818572A98 |
|
|
|
|
GASKET SET, Engine Overhaul |
1 |
|
|
