500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Crankshaft - Pistons - Connecting Rods

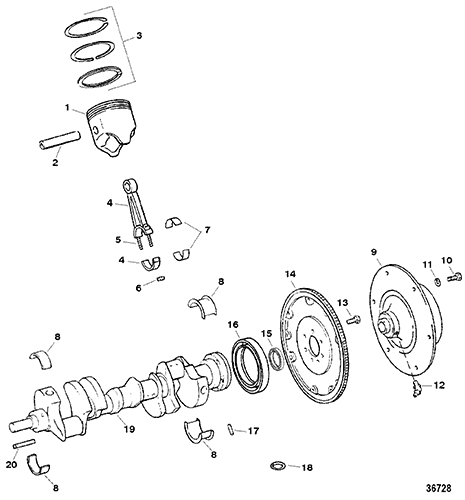

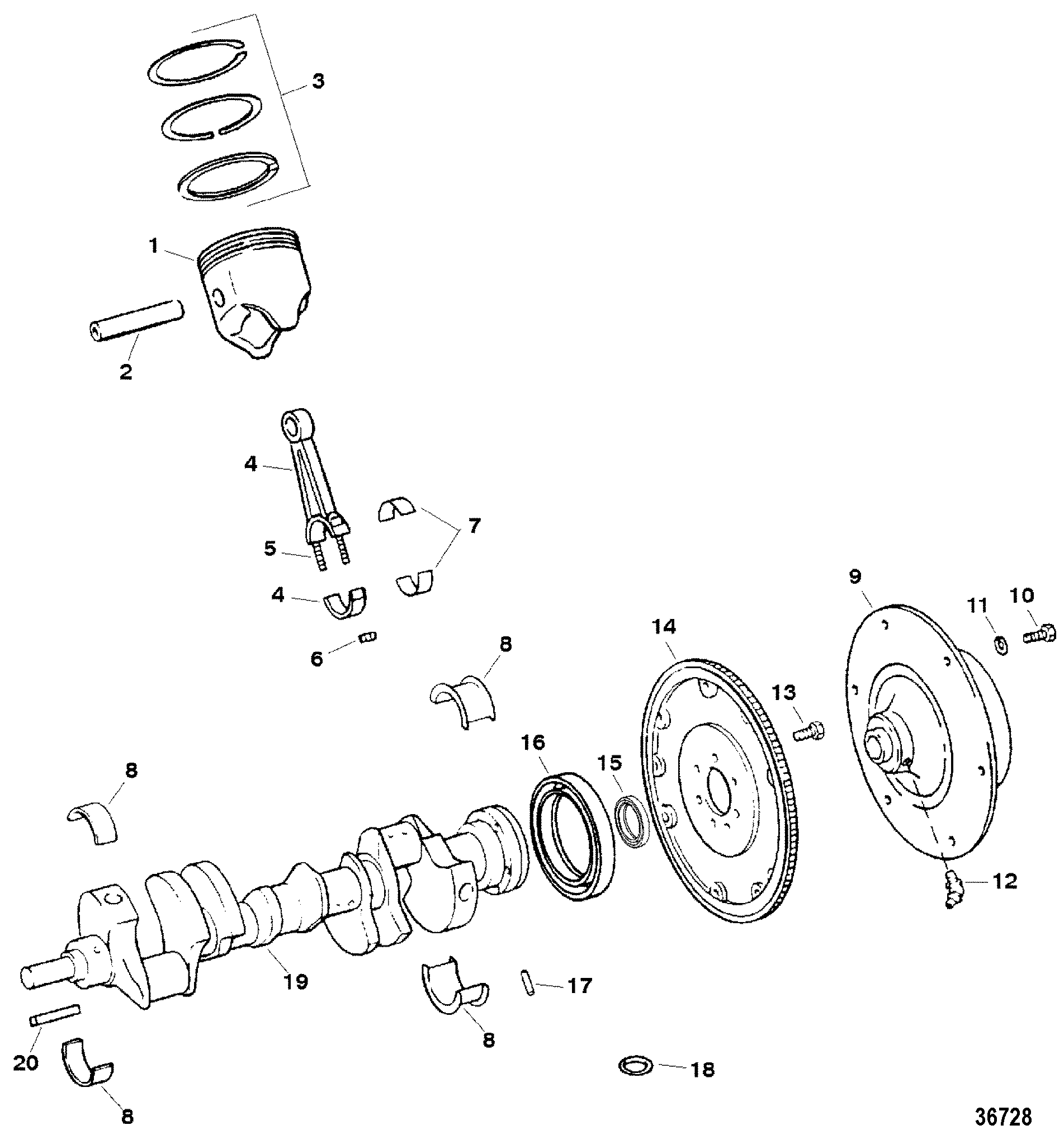

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 737-827664         PISTON ASSEMBLY, Standard 8
(NOTE: Piston Wrist Pins That Come With Piston Must Replace With This Part 41-848819T) 5
1 737-827665A1         PISTON ASSEMBLY, .030 Oversize 8   This Part is No Longer Available (NOTE: Piston Wrist Pins That Come With Piston Must Replace With This Part 41-848819T) No longer made, limited availability
2 41-848819T         PIN, Piston 8
(NOTE: Piston Wrist Pins That Come With Piston Must Replace With This Part 41-848819T) 5
3 39-827660T         RING SET, Piston - Standard 8 39-827660 5
3 NSS         NOT SOLD SEPARATE, RING SET, Piston 8
This Part is not sold separately (.030 Oversize) (NOTE: Sold With Oversize Piston Only)
4 614-9641T         CONNECTING ROD ASSEMBLY 8
5
5 10-19234         SCREW, (.437-20), Connecting Rod Cap 16

6 11-58056         NUT, Connecting Rod Cap Bolt (.437-20) 16
No longer made, limited availability
7 23-85726001         BEARING SET, Conn Rod - Standard 8 23-85726 5
7 23-85727         BEARING SET, Conn Rod - .001 Undersize AR
5
7 23-85728         BEARING SET, Conn Rod - .002 Undersize AR   This Part is No Longer Available 5
7 23-85691         BEARING SET, Conn Rod - .010 Undersize AR
5
7 23-85729         BEARING SET, Conn Rod - .020 Undersize AR
5
8 23-818473001         BEARING SET, Main - Standard 1 23-818473 5
8 23-818474         BEARING SET, Main - .001 Undersize AR
5
8 23-818475         BEARING SET, Main - .002 Undersize AR
5
8 818476001         BEARING SET, Main - .010 Undersize AR 23-818476 5
8 23-818477         BEARING SET, Main - .020 Undersize AR
5
9 861523A9         COUPLER ASSEMBLY, Engine 1 18311A17
10 10-35091         SCREW, (.375-16 x 1.00) 6

11 12-856774         WASHER, (.406 x .750 x .105) Stainless Steel 6

12 22-49099         FITTING, Grease 2

13 10-845757         SCREW, (.437-20 x 1.00) 6 10-49845 5
14 230-843374T1         FLYWHEEL 1 230-811561 5
15 23-823108         BUSHING, Crankshaft Pilot 1
(Driveline Models Only) 5
16 26-811554         SEAL, Oil 1
2,5
17 17-843378         PIN, Dowel (.250 Diameter) 1 17-35312 5
18 25-69756         O-RING, (.500 Inch) 1 25-811528 (#5 Bearing Cap Oil Hole) 2,5
19 429-843083T         CRANKSHAFT 1 429-811550 5
20 28-845607         KEY, Crankshaft 2 28-811558 5
- 27-818572A98         GASKET SET, Engine Overhaul 1
