500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Mount Plates-Engine

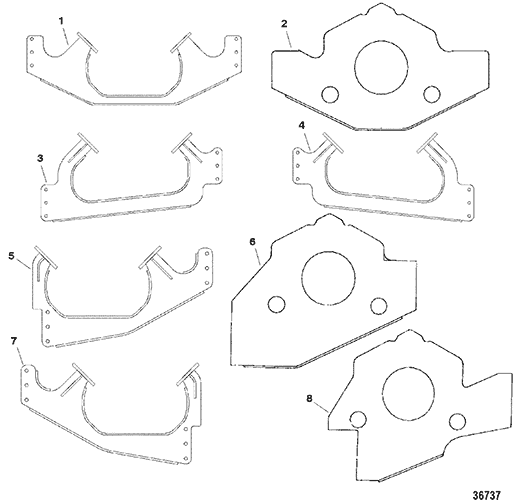

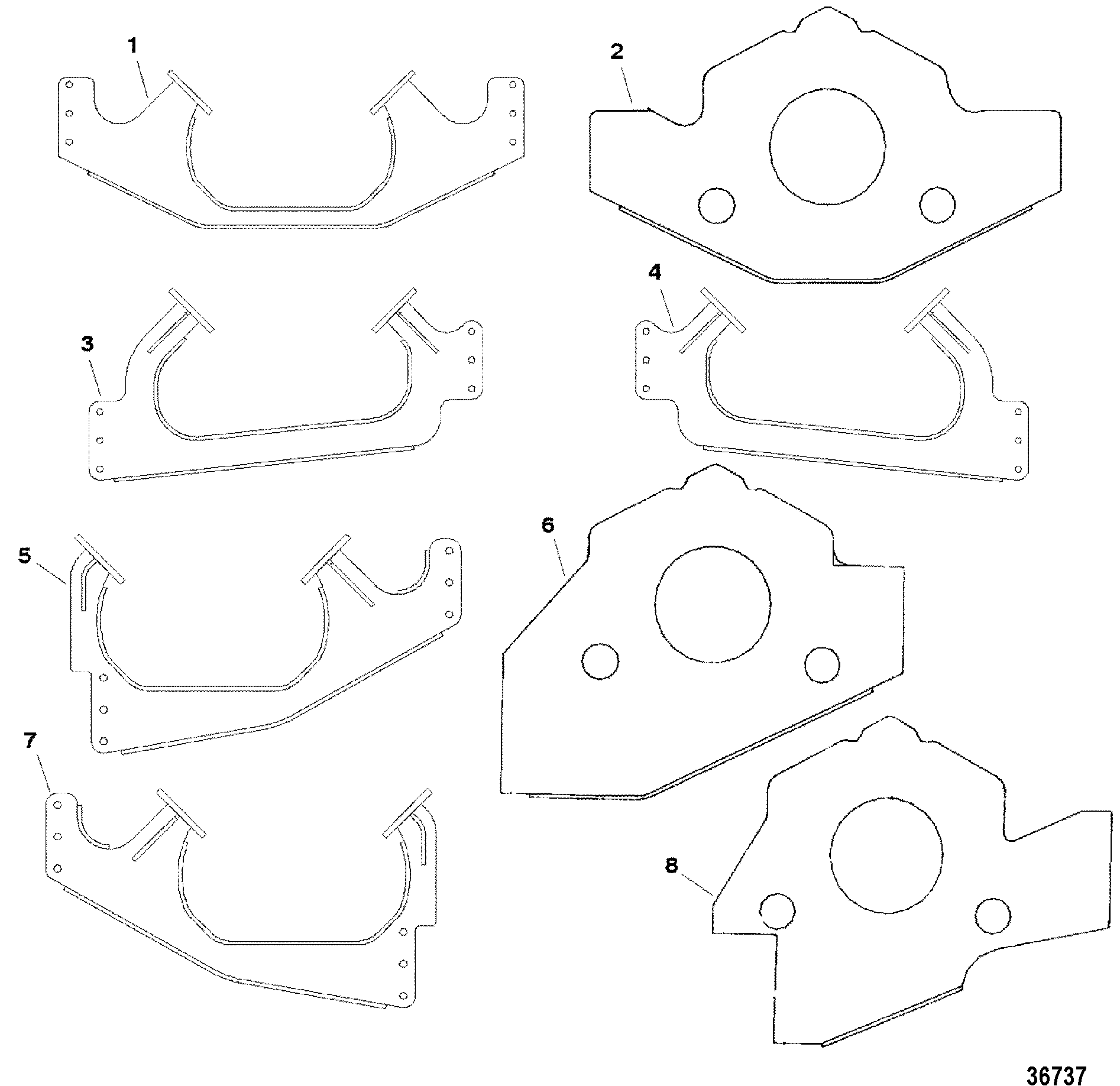

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head - Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components(Bravo)
- Electrical Components
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Plug-In)
- Flywheel Housing (Driveline)
- Fuel Pump And Fuel Filter
- Intake Manifold And Front Cover
- Mount Plates-Engine
- Oil Cooler - Oil Filter - Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power Steering Components
- Pump-Motor(Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor(Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor(Top Mt Reservoir) (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket
- Starter And Alternator
- Starter Assembly
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849143T | MOUNT, Engine | AR | (Front Single) | |||||
| 2 | 844843T | MOUNT, Engine | AR | (Rear Single) | |||||
| 3 | 849299T | MOUNT, Engine | AR | (Front Starboard Side By Side) | |||||
| 4 | 849339T | MOUNT, Engine | AR | (Front Port Side By Side) | |||||
| 5 | 849310T | MOUNT, Engine | AR | (Front Starboard - Staggered) | |||||
| 6 | 847807T | MOUNT, Engine | AR | This Part is No Longer Available (Rear Side By Side) | |||||
| 7 | 849335T | MOUNT, Engine | AR | (Front Port - Staggered) | |||||
| 8 | 847808T | MOUNT, Engine | AR | (Rear - Staggered) | |||||
| NS | 10-86518 | SCREW, (.375-16 x 1.00) | 6 | ||||||
| NS | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 6 |
