| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Other # |
Description |
Num Req. |
Superceded From |
Special Notes |

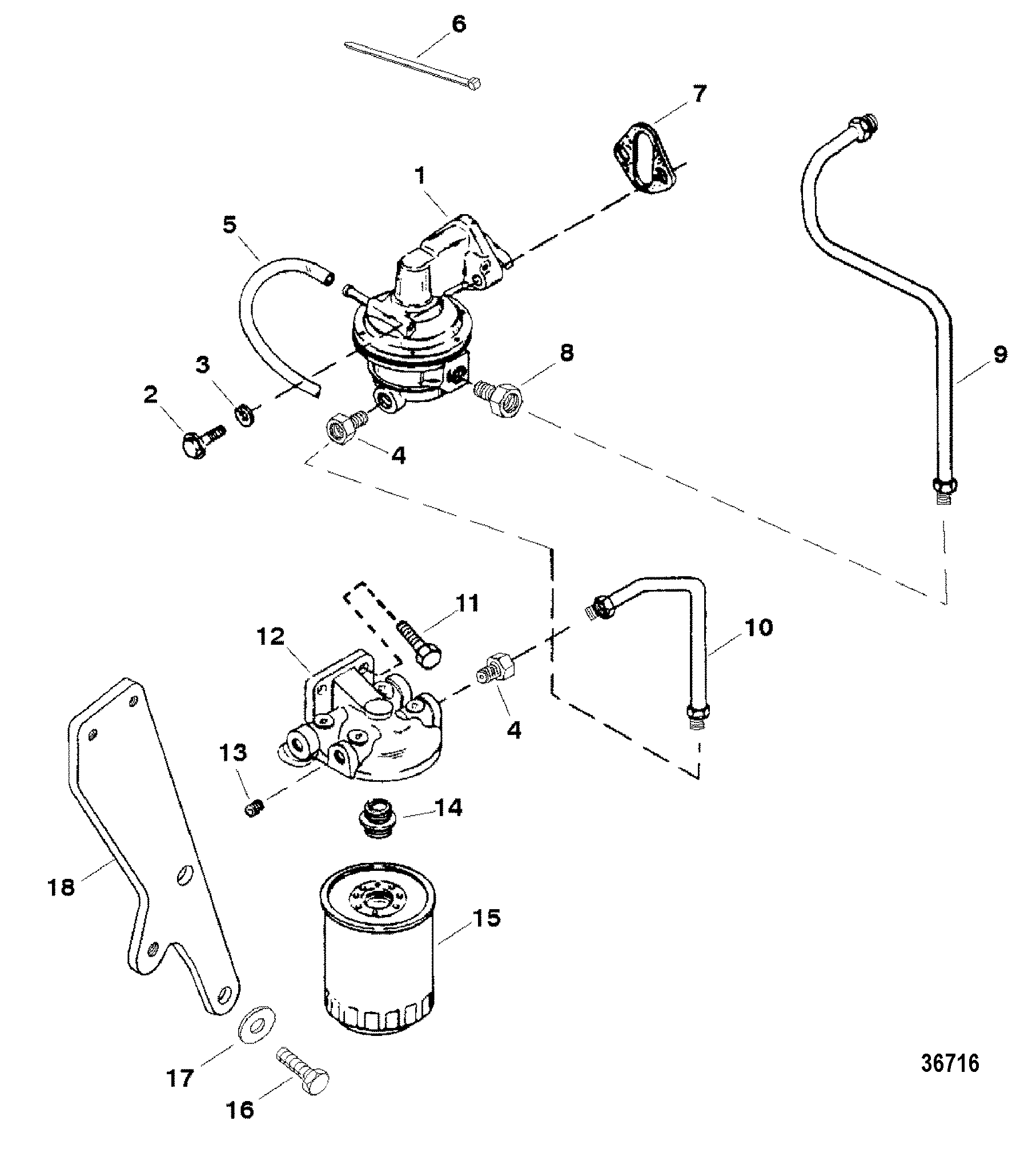

| 1 |
861677A2 |
|
|
|
|
PUMP ASSEMBLY, Fuel |
1 |
|
|
| 2 |
10-34354 |
|
|
|
|
SCREW, (.375-16 x 1.50) |
2 |
|
|
| 3 |
13-35048 |
|
|
|
|
LOCKWASHER, (.375) |
2 |
|
|
| 4 |
22-93385 |
|
|
|
|
FITTING, (90 Degree) |
2 |
|
|
| 5 |
32-8M8023638 |
|
|
|
|
TUBING (48.00 Inches) |
1 |
32-84862870 |
(Fuel Pump To Carburetor) |
| 6 |
56762 |
|
|
|
|
TIE STRAP, (4.00 Inches) |
5 |
|
|
| 7 |
27-34213 |
|
676-9-61041 |
700-31360 |
|
GASKET, Fuel Pump |
1 |
|
2 |
| 8 |
22-33821 |
|
|
|
|
CONNECTOR |
1 |
|
|
| 9 |
32-848592 |
|
|
|
|
LINE, Fuel |
1 |
|
(Fuel Pump To Carburetor) |
| 10 |
32-848602 |
|
|
|
|
LINE, Fuel |
1 |
|
(Filter To Pump) |
| 11 |
10-849198 |
|
|
|
|
SCREW, (.312-24 x .750) Stainless Steel |
2 |
|
|
| 12 |
89876A3 |
|
|
|
|
BASE ASSEMBLY, Fuel Filter/Water Seperator |
1 |
|
|
| 13 |
22-32561 |
|
|
|
|
PLUG, Pipe - Allen Head (.250-18) |
3 |
|
|
| 14 |
22-816133 |
|
|
|
|
FITTING |
1 |
22-8161331 |
|
| 15 |
35-802893Q01 |
|
|
|
|
FILTER, Fuel/Water Separator |
1 |
35-807172 |
|
| 16 |
10-90042 |
|
|
|
|
SCREW, (.437-14 x 1.500) Stainless Steel |
2 |
|
No longer made, limited availability |
| 17 |
12-45176 |
|
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
2 |
|
|
| 18 |
8492261 |
|
|
|
|
BRACKET, Fuel Pump |
1 |
|
|
| - |
27-818572A98 |
|
|
|
|
GASKET SET, Engine Overhaul |
1 |
|
|
