500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Distributor And Ignition Components

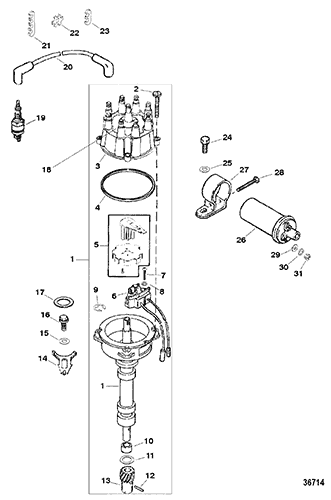

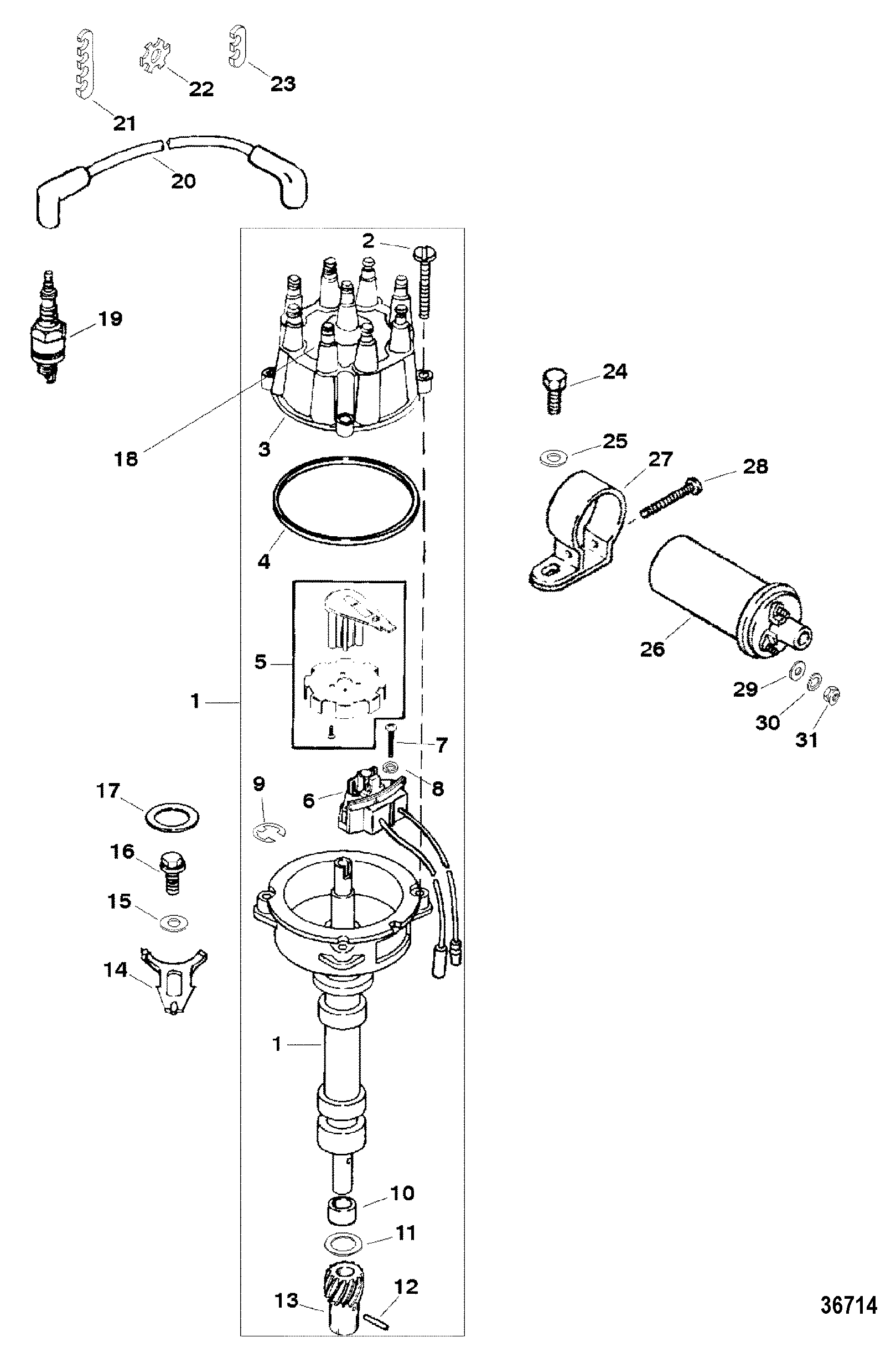

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805185A36

700-71250
DISTRIBUTOR ASSEMBLY 1

2 10-90926

700-22305
SCREW, (#10-32 x .810) 4

3 805759T1
676-9-29403

CAP ASSEMBLY 1 805759T2
4 27-805760
676-9-61050 700-32060
GASKET, Distributor Cap 1
2
5 13524T1

700-72880
WHEEL ASSEMBLY, Rotor Sensor 1

6 87-892150Q02



SENSOR ASSEMBLY 1 87-861780A2
7 10-66686

700-22311
SCREW, (#10-32 x 1.00) 2

8 13-26996



LOCKWASHER, (#10) Stainless Steel 2

9 53-90916



RING, Retaining 1

10 23-90915

700-21426
BUSHING 2

11 12-90931

700-21661
THRUST WASHER 1

12 17-47617

700-22195
PIN, Roll 1

13 43-818807

700-19360
GEAR, Drive 1

14 52185



CLAMP 1

15 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 1

16 10-805559



SCREW, (.375-16 x .875) Stainless Steel 1

17 27-344863



GASKET 1
2
18 37-92155



DECAL, Distributor Firing Order 1

19 33-898264001



SPARK PLUG 8 33-59571
20 84-847701Q7



CABLE KIT, Ignition 1 84-847701A7 (Spark Plugs And Coil) (Blue)
21 32783



RETAINER, Three Wire 2

22 32784



RETAINER, Four Wire 4

23 54676



RETAINER, Two Wire 2

24 10-94247


525-10-94247 SCREW, (.375-16 x .750) Stainless Steel 1

25 12-856774



WASHER, (.406 x .750 x .105) Stainless Steel 1

26 300-8M0079202



COIL KIT, Ignition 1 392-805570A2
27 65970T1



BRACKET, Coil Mount 1
(On Electrical Bracket)
28 10-41408



SCREW, (#10-32 x 1.50) 1

29 12-30164



WASHER, (.192 x .375 x .0312) Stainless Steel 2

30 13-26996



LOCKWASHER, (#10) Stainless Steel 2
31 11-68219



NUT, (#10-32) Stainless Steel 2
- 27-818572A98



GASKET SET, Engine Overhaul 1
