500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Carburetor And Linkage

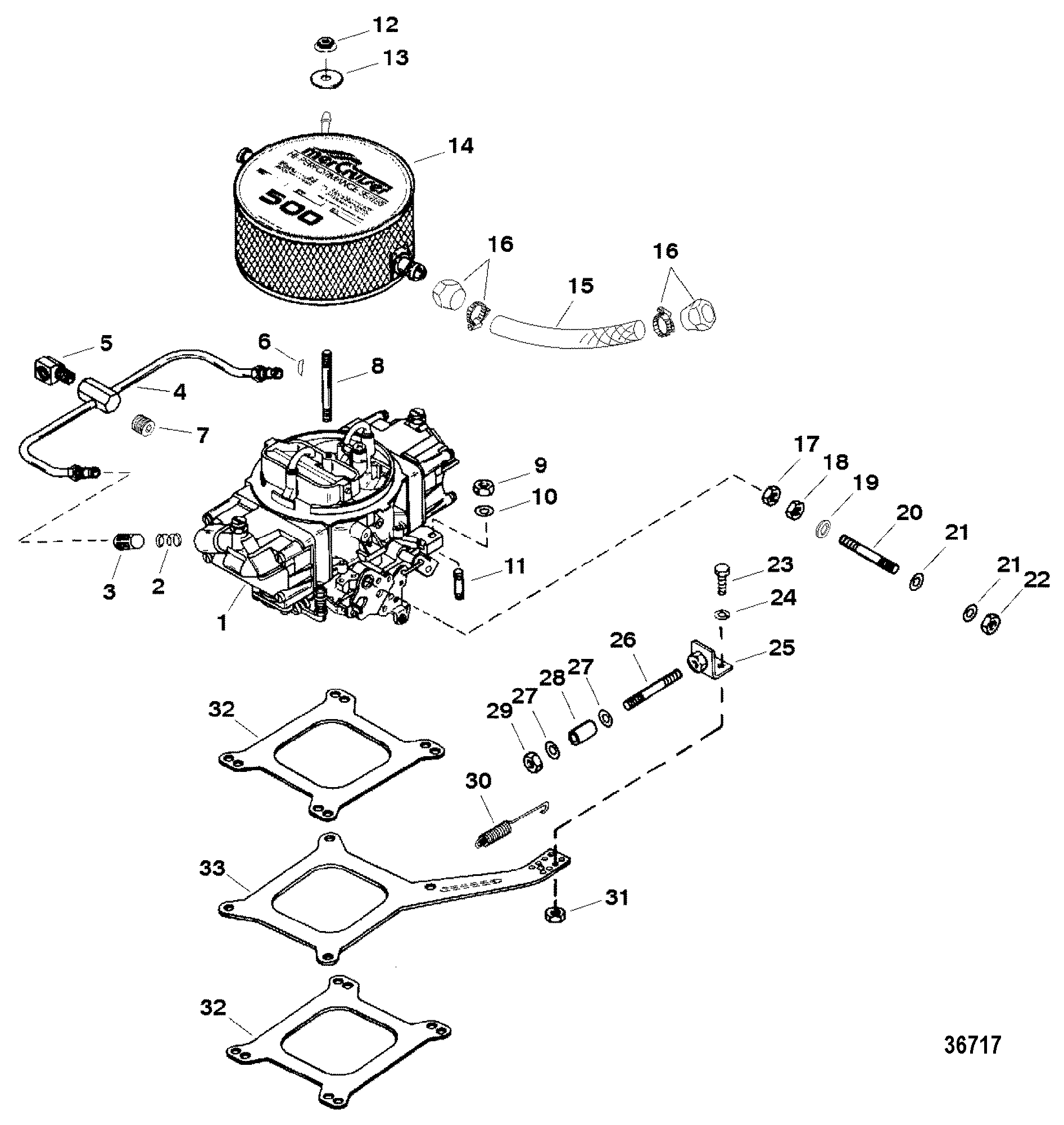

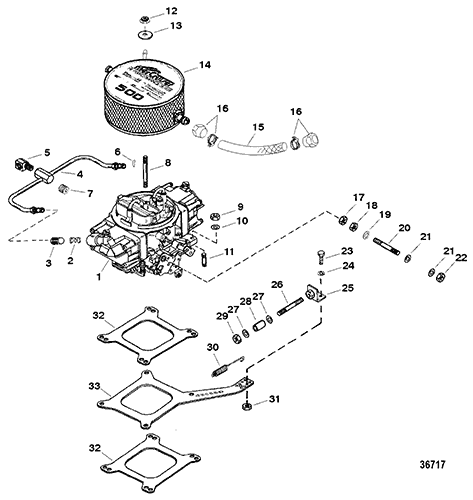

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 13549T21         CARBURETOR ASSEMBLY (Blue) 1   This Part is No Longer Available
2 24-48143         SPRING, Filter 2

3 35-93568   676-9-37825     FILTER 2

4 32-8485911         LINE ASSEMBLY, Fuel Inlet 1

5 22-93385         FITTING, (90 Degree), Fuel Inlet Tube 1

6 27-848438         GASKET, Flair (Copper) 2

NS 13220     700-76110   REBUILD KIT, Carburetor Overhaul 1

NS 27-42270A1         GASKET SET, Carburetor 1

NS 848243         POWERVALVE 1

NS 816827         PUMP KIT, Accelerator 2   This Part is No Longer Available
NS 42268         CHOKE KIT, Electric 1   This Part is No Longer Available
NS 848750         VALVE, Umbrella 2

NS 848751         BAFFLE, Vent 2

NS 25-848752         O-RING 2
(Body Of The Needle And Seat)
NS 848755         DIAPHRAM, Accelerator Pump 2

NS 848749         FLOAT, Carburetor 2
(Black - Solid Plastic)
NS 27-848742A1         GASKET SET, Float Adjust 2   This Part is No Longer Available
NS 1399-650875         JET, Main 1   This Part is No Longer Available (.082) (Starboard Primary)
NS 1399-650893         JET, Main 1
(.105) (Starboard Secondary)
NS 1399-650889         JET, Main 1
(.104) (Port Secondary)
NS 1399-650881         JET, Main 1
(.093) (Port Primary)
7 22-47945         PLUG, Pipe 1

8 16-848176         STUD, (.250-20 x 4.310) 1

9 11-82670911       NUT, (.312-24) Stainless Steel 4 11-35814
10 12-848136         WASHER, (.328 x .680 x .190) 4

11 16-46857         STUD (.312 x 1.875) 4

12 11-35888   676-9-72001 700-21180   NUT, (.250-28) Stainless Steel 1

13 12-86400         WASHER 1

14 849706         ARRESTOR, Flame 1   This Part is No Longer Available
15 32-821284A21         HOSE ASSEMBLY, Vent (8.750 Inches) 2   This Part is No Longer Available
16 54-84763012         COVER, Clamp End, Vent Hose 4   This Part is No Longer Available
17 11-35888   676-9-72001 700-21180   NUT, (.250-28) Stainless Steel 1

18 12-28426         WASHER 1

19 23-818894         BUSHING, Throttle Cable Stud 1

20 16-96112         STUD, (.250-28 x 2.00) 1
(Thottle Cable To Carburetor)
21 12-846673         WASHER, (.265 x .500 x .060) Stainless Steel 2

22 11-35888   676-9-72001 700-21180   NUT, (.250-28) Stainless Steel 1

23 10-78291         SCREW, (.190-24 x .500) 2

24 13-26996         LOCKWASHER, (#10) Stainless Steel 2

25 15017         BRACKET, Throttle 1

26 16-728091         STUD, (.250-20/.250-28 x 1.620) 1 16-72809
27 12-69056         WASHER, (.255 x .625 x .0312) 2 12-21631
28 23-31866         SPACER, (.256 x .313 x .625), Cable Stud 1

29 11-826709109       525-11-826709109 NUT, (.250-28) 1 11-35045
30 24-897454         SPRING, Throttle Return 1 24-32817
31 11-79989         NUT, (#10-24) Stainless Steel 2

32 27-41610   676-9-61001     GASKET, Spacer 2
2
33 940701         BRACKET, Throttle 1
- 27-818572A98         GASKET SET, Engine Overhaul 1
