500 (Gen +) GM 502 V-8 1999 - Serial 0L414639 Thru 0L601036 - Senders And Sensors

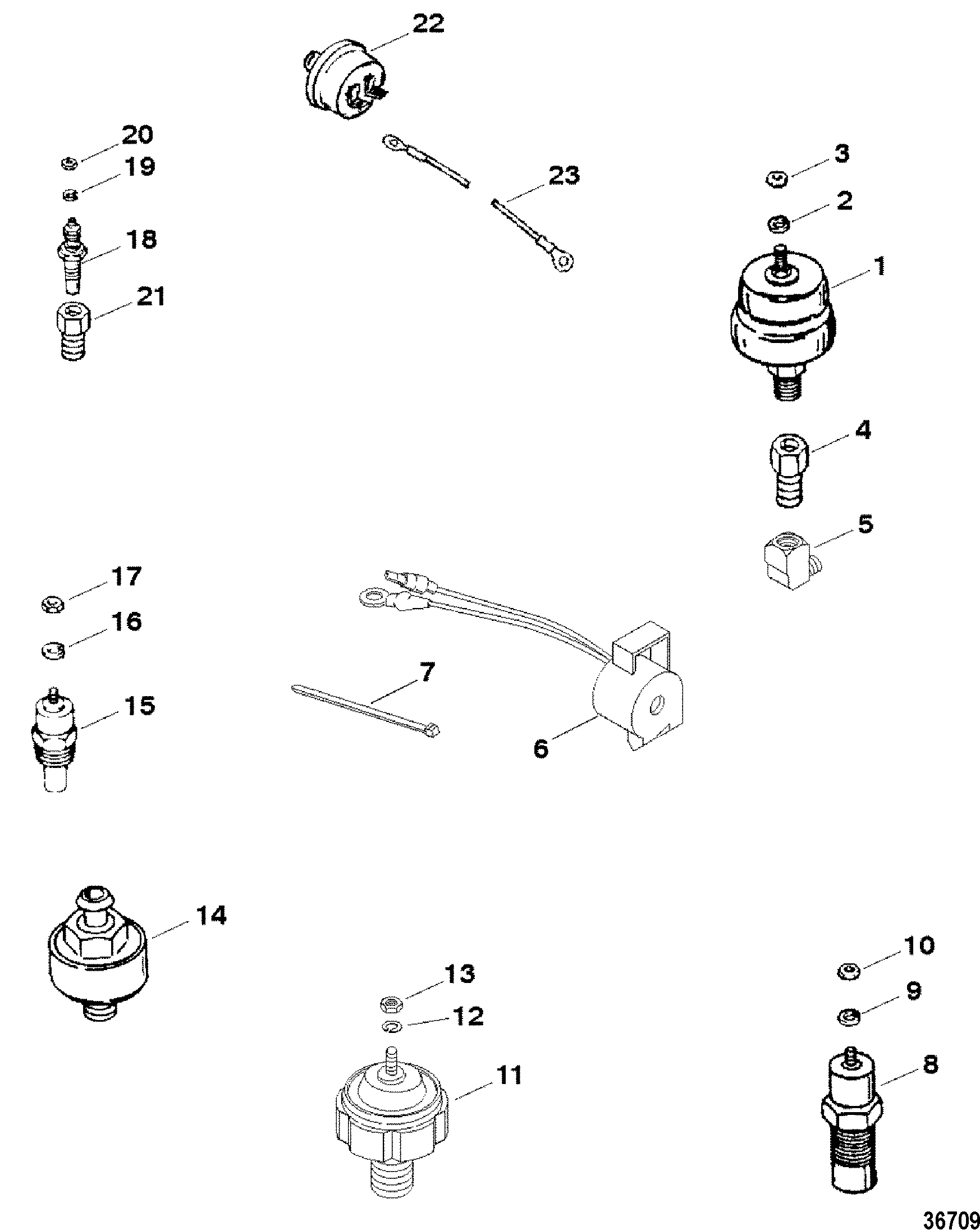

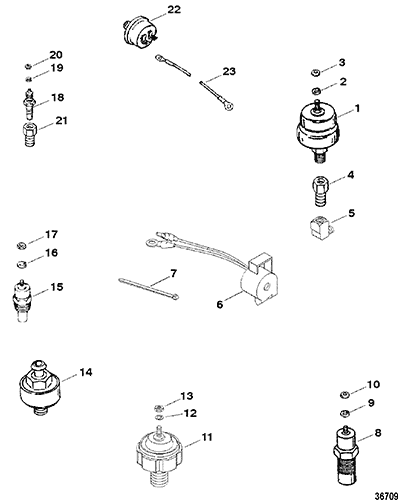

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0068784         SENDER ASSEMBLY, Oil Pressure 1 87-815425T (Lower Oil Adapter) (Audio)
1 37293T         SENDER ASSEMBLY, Oil Pressure OPT
(Dual)
2 13-26996         LOCKWASHER, (#10) Stainless Steel 1

3 11-68219         NUT, (#10-32) Stainless Steel 1

4 22-64013         FITTING, (.375 Male To .125 Female) 1

5 22-35580         FITTING (90 Degree) 1

6 816492A6         ALARM KIT 1

7 56762         TIE STRAP, (4.00 Inches) 1

8 48952         SWITCH ASSEMBLY, Water Temperature 1
(Intake Manifold) (Audio)
9 13-26996         LOCKWASHER, (#10) Stainless Steel 1

10 11-45076         NUT, (#10-32) Brass 1

11 87-805605A1         SWITCH ASSEMBLY, Oil Pressure 1
(Back Of Lower Oil Adapter)
12 13-26996         LOCKWASHER, (#10) Stainless Steel 1

13 11-68219         NUT, (#10-32) Stainless Steel 1

14 805544T   676-9-33500     SENSOR ASSEMBLY, Knock 1

15 806490T   676-9-42400     SENDER ASSEMBLY, Water Temperature 1 97257A1 (Thermostat Housing)
15 49734         SENDER, Water Temperature OPT
(Dual)
16 13-26996         LOCKWASHER, (#10) Stainless Steel 1

17 11-68219         NUT, (#10-32) Stainless Steel 1

18 8493631         SENDER ASSEMBLY, Oil Temperature 1
(Front Of Lower Oil Adapter)
18 8503671         SENDER ASSEMBLY, Oil Temperature OPT   This Part is No Longer Available (Compatible With Gafrig Gauges)
19 13-26996         LOCKWASHER, (#10) Stainless Steel 1

20 11-45076         NUT, (#10-32) Brass 1

21 22-64013         FITTING, (.375 Male To .125 Female) 1

22 87-94009         SWITCH, Choke 1

23 84-848879A1         CABLE ASSEMBLY 1
(Sendor To Choke)
