8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Cool Fuel System

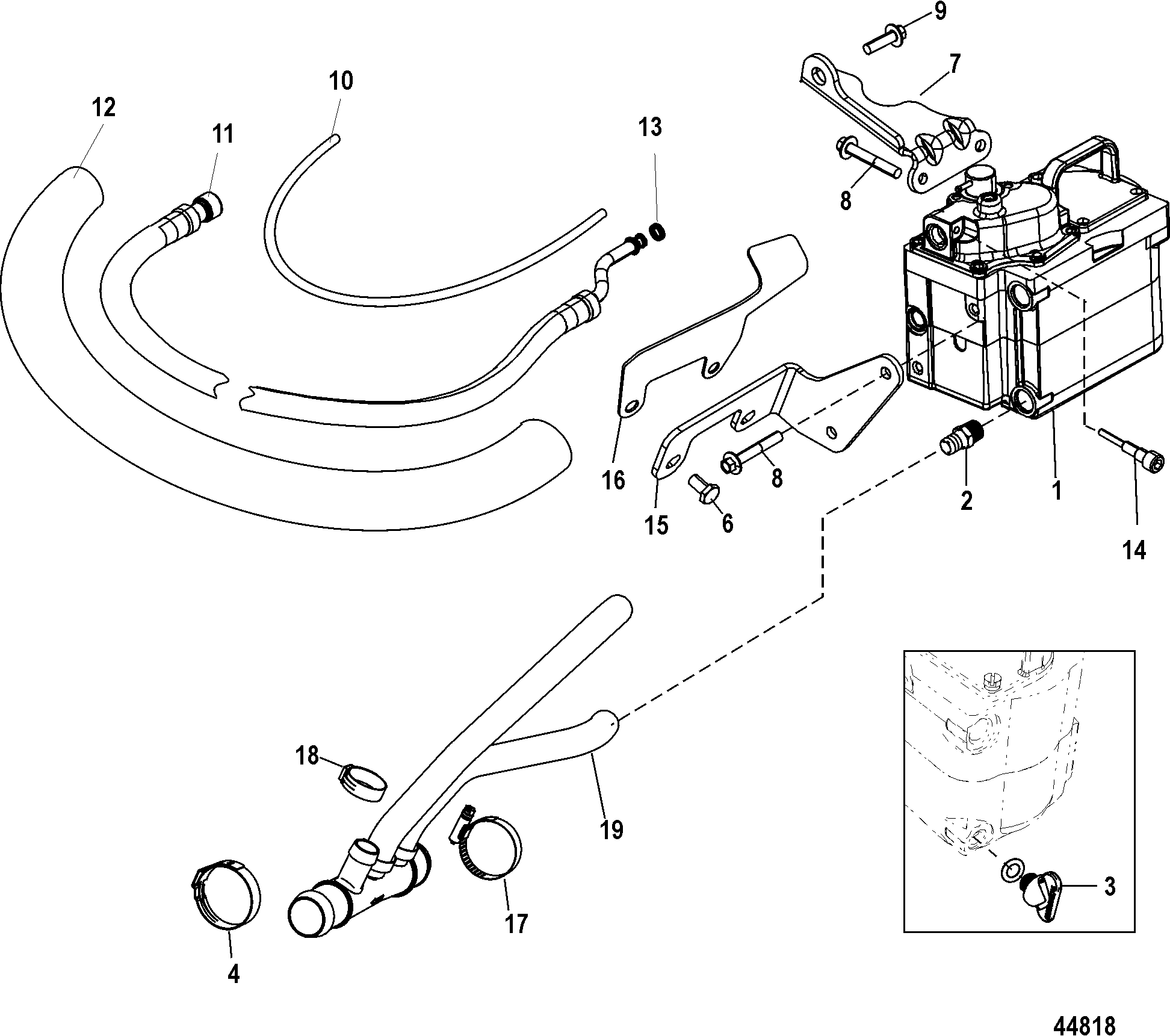

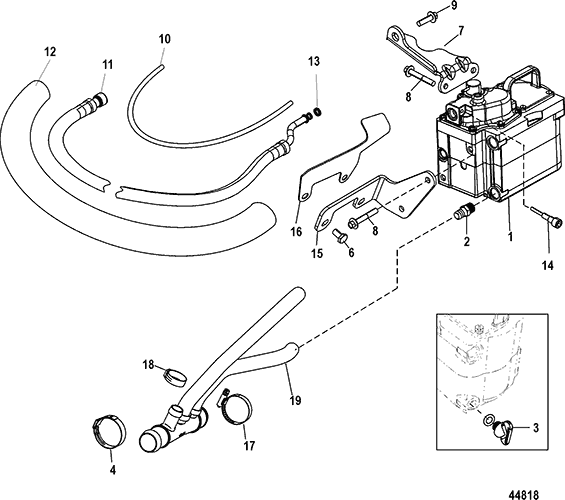

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Elbow, Vent Valve
- Exhaust Manifold And Elbow
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Poppet Valve Assembly
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0047215 | MODULE KIT, Fuel Pump, Complete | 1 | 864650A13 | |||||
| 1 | 8M0047215 | MODULE KIT, Fuel Pump, Complete, With Drain Port | 1 | ||||||
| 2 | 8M2010476 | FITTING, (3/8-18) | 2 | ||||||
| 3 | 22-806608A02 | PLUG ASSEMBLY, (.500-13) Blue, Housing With Drain Port Only | 1 | ||||||
| 4 | 54-815504220 | CLAMP, Worm Gear | 1 | ||||||
| 5 | 54-815504222 | CLAMP, Worm Gear (1.98 DIameter) | 1 | ||||||
| 6 | 10-40001195 | SCREW, (M10 x 30) | 2 | ||||||
| 7 | 8M2017251 | BRACKET, Support, Fuel Module | 1 | ||||||
| 8 | 10-4010720 | SCREW, (M8 x 20) | 4 | ||||||
| 9 | 10-8M2017668 | SCREW, (7/16-14 x 1.00) | 1 | ||||||
| 10 | 32-8M0063567 | HOSE, (58.00 Inches Bulk) | 1 | 32-80617382 | |||||
| 11 | 32-8M0046149 | LINE, Fuel, Fuel Module to Fuel Rail | 1 | ||||||
| 12 | NSS | NOT SOLD SEPARATE, INSULATOR SLEEVE | 1 | This Part is not sold separately | |||||
| 13 | 26-863151 | SEAL, Quad Ring | 1 | ||||||
| 14 | 10-866114 | SCREW, (.250-28) Special | 1 | ||||||
| 15 | 864468T | BRACKET | 1 | ||||||
| 16 | 8M2001894 | SHIELD, Fuel Line | 1 | ||||||
| 17 | 54-815504232 | CLAMP, Worm Gear (2.50 Diameter) | 1 | ||||||
| 18 | 54-815504212 | CLAMP, Worm Gear | 1 | ||||||
| 19 | 8M0045363 | HOSE ASSEMBLY, 3 Bib Orifice Meter | 1 |
