8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Exhaust Elbow, Vent Valve

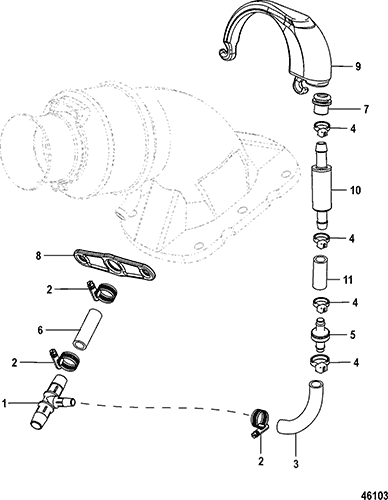

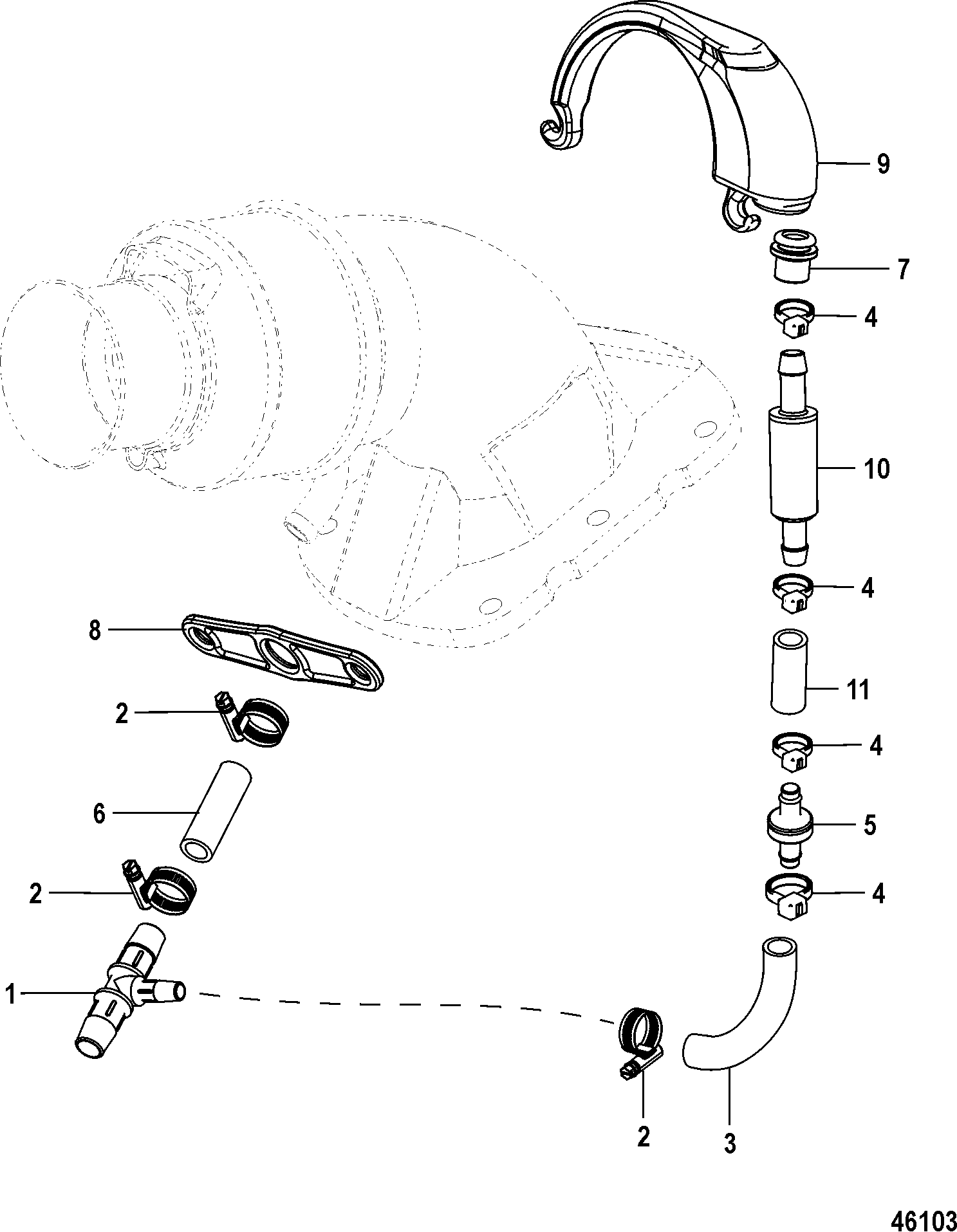

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Elbow, Vent Valve
- Exhaust Manifold And Elbow
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Poppet Valve Assembly
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superseded From | Special Notes |
| - | 8M0054663 | VENT VALVE KIT, Exhaust Elbow | 2 | |||||
| 1 | 8M6500018 | TEE, Reducer (0.5 x 0.5 0.313) | 1 | |||||
| 2 | 54-815504206 | CLAMP, Worm Gear | 3 | |||||
| 3 | 32-858807 | HOSE, Tee to Check Valve | 1 | |||||
| 4 | 69355 | TIE STRAP, (5.50 Inches) | 4 | |||||
| 5 | 21-8M6500019 | CHECK VALVE | 1 | |||||
| 6 | 32-8M0062669 | HOSE, (45 Inches Bulk), Tee to Elbow | 1 | 32-8M2012906 | (Cut to 2.25 Inches) | |||
| 7 | 25-8M0054051 | GROMMET, Vent Valve | 1 | |||||
| 8 | 8M0054057 | STRAP, Reservoir | 1 | |||||
| 9 | 8M0054001 | RESERVOIR, Vent Valve | 1 | |||||
| 10 | 21-8M0056844 | CHECK VALVE, Duckbill | 1 | |||||
| 11 | 32-8M0047448 | TUBING, (.312) (70 Inches Bulk) | 1 | (Cut to 1.5 Inches) | ||||
| - | 19-8079923 | COVER, Hose Clamp | AR |
