8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Exhaust Manifold And Elbow

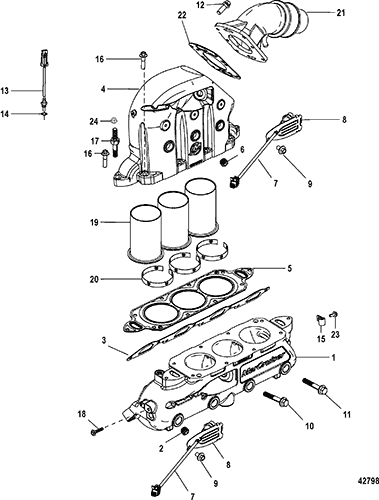

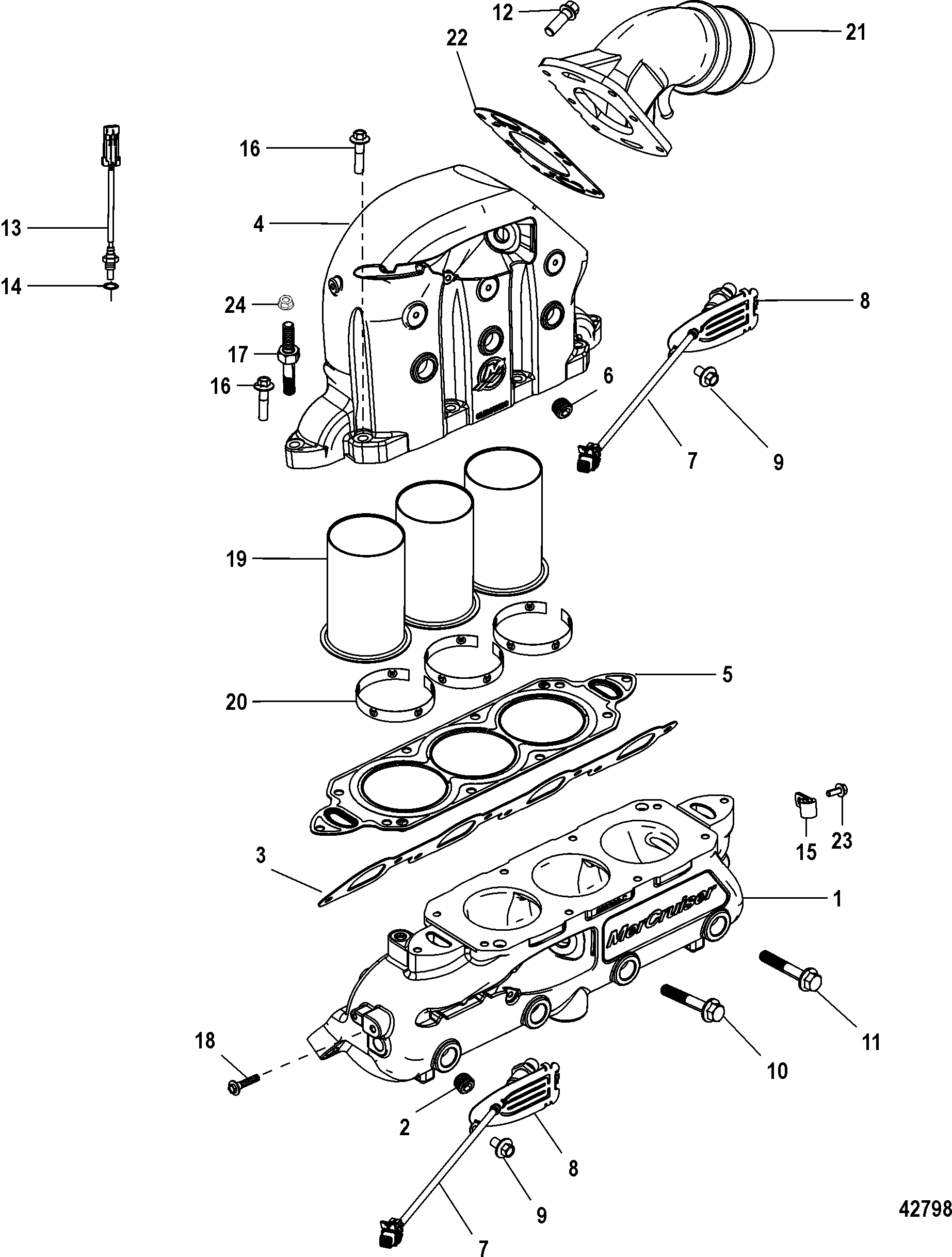

Section Drawing: (Hover or click to view larger)

Other Sub-Sections:

Untitled Document

Note 1: (Contains 2 Elbows) (Includes Manifold to Elbow Hose)
Ref.	OEM Part #	Hardin #	Mallory #	GLM #	Description	Num Req.	Superseded From	Special Notes
1	8M0045258				MANIFOLD ASSEMBLY, Exhaust	2
2	19-864689				PLUG, Expansion	8
3	27-8M2018049				GASKET, Cylinder Head to Exhaust Manifold	2		2
4	866391T02				COLLECTOR, Exhaust	2
5	27-866390				GASKET, Collector, Exhaust	2		2
6	19-864689				PLUG, Expansion	6
7	8M2003959				SENSOR, Oxygen	4
8	8M2004289				COVER, Oxygen Sensor	4
9	10-4010610				SCREW, (M6 x 10) Stainless Steel	AR
10	10-8M0058302				SCREW, (.375-16 x 1.75), Exhaust Manifold to Cylinder Head	8	10-8M2017590
11	10-8M0058303				SCREW, (.375-16 x 3.0), Exhaust Manifold to Cylinder Head	8	10-8M2017591
12	10-8M2003966				SCREW, (M8) Hex Flange	12
13	885342002				SENSOR ASSEMBLY	2
14	25-896699				O-RING, (1.78 mm x .08 mm)	1	25-888814
15	54-65653				CLIP	2
16	10-4009535				SCREW, (M8 x 35)	19		SN# 1A351717 & Below
16	10-4009535				SCREW, (M8 x 35)	20		SN# 1A351718 & Up
17	16-8M2017900				STUD, (M8), Coolant Reservoir Bracket	1		SN# 1A351717 & Below
18	10-4010716				SCREW, (M8 x 16)	2
19	879288T47				CATALYST	6
20	866775				RING, Retention, Catalyst	6
21	879288T79				ELBOW, Exhaust, No Rise	2
21	879288T80				ELBOW, Exhaust, No Rise	2		(MIE V-Drive only)
21	8M0062051				RISER KIT, Exhaust - 2 Inch Rise	1	879288T81	(See Note 1)
21	879288T82				RISER KIT, Exhaust - 4 Inch Rise	1		(See Note 1)
21	879288T83				RISER KIT, Exhaust - 6 Inch Rise	1		(See Note 1)
21	879288T84				RISER KIT, Exhaust - 8 Inch Rise	1		(See Note 1)
22	27-8M2003931				GASKET (Elbow 0 rise includes 1 gasket each)	2		2
23	10-4010612				SCREW, (M6 x 12) Stainless Steel	2
24	11-826365				NUT, (M8), Coolant Reservoir Bracket	1		SN# 1A351717 & Below
