8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Shift Bracket, Mechanical

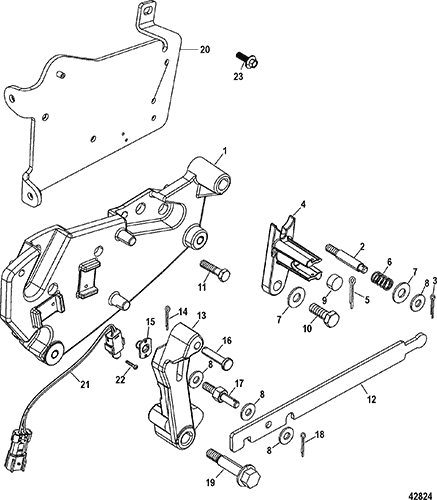

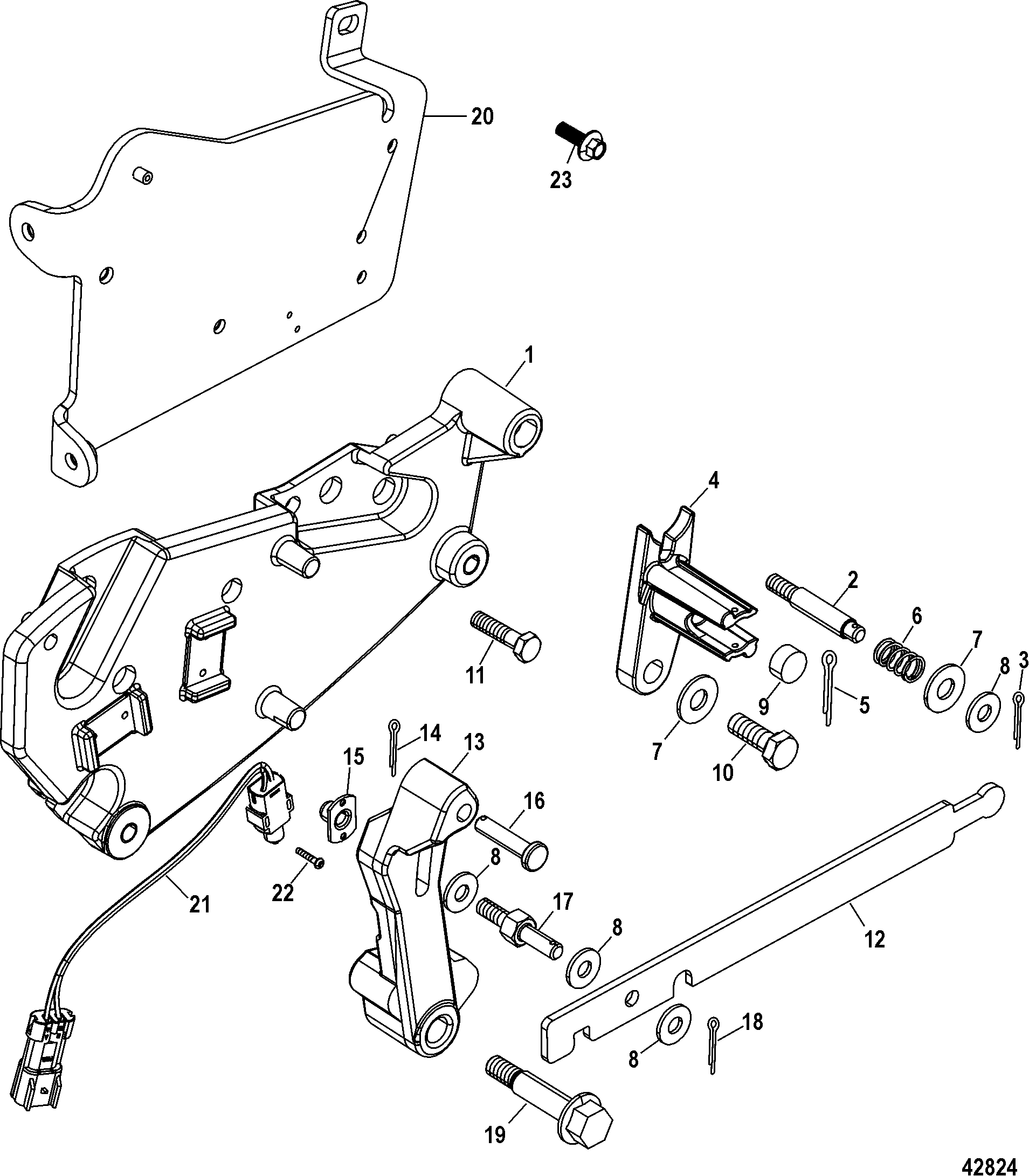

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Elbow, Vent Valve
- Exhaust Manifold And Elbow
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Poppet Valve Assembly
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY | 1 | ||||||
| 2 | 16-865154A02 | STUD KIT, (.250-20/.250-28 x 2.120) | 1 | ||||||
| 3 | 18-210711 | COTTER PIN | 1 | ||||||
| 4 | 865434A02 | RETAINER KIT, Shift Cable | 1 | ||||||
| 5 | 18-328571 | COTTER PIN | 1 | ||||||
| 6 | 24-98880 | SPRING | 1 | ||||||
| 7 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 2 | ||||||
| 8 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 3 | ||||||
| 9 | 23-98828 | SPACER | 1 | ||||||
| 10 | 10-53167 | SCREW, (.312-18 x .880) | 1 | ||||||
| 11 | 10-4010716 | SCREW, (M8 x 16) | 3 | ||||||
| 12 | 12427T | TOOL, Shift Adjust | 1 | ||||||
| 13 | 863911A12 | LEVER ASSEMBLY | 1 | ||||||
| 14 | 18-210711 | COTTER PIN | 1 | ||||||
| 15 | 11-63341 | TEE NUT | 1 | ||||||
| 16 | 17-68402 | PIN, (.250 x 1.13), Clevis | 1 | ||||||
| 17 | 16-865393A02 | STUD KIT, (.250-28 x 1.90) | 1 | ||||||
| 18 | 18-210711 | COTTER PIN | 1 | ||||||
| 19 | 10-865148 | SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel | 1 | ||||||
| 20 | 8M0045249 | BRACKET, Shift Bracket Mount | 1 | ||||||
| 21 | 87-808009T11 | SWITCH ASSEMBLY | 1 | ||||||
| 22 | 10-865147 | SCREW, (#6-32 x .750) Stainless Steel | 2 | ||||||
| 23 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 3 |
