8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Remote Oil System

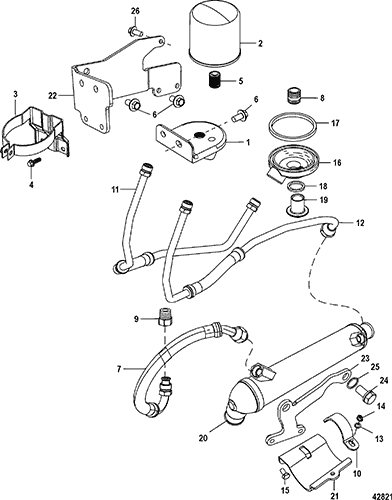

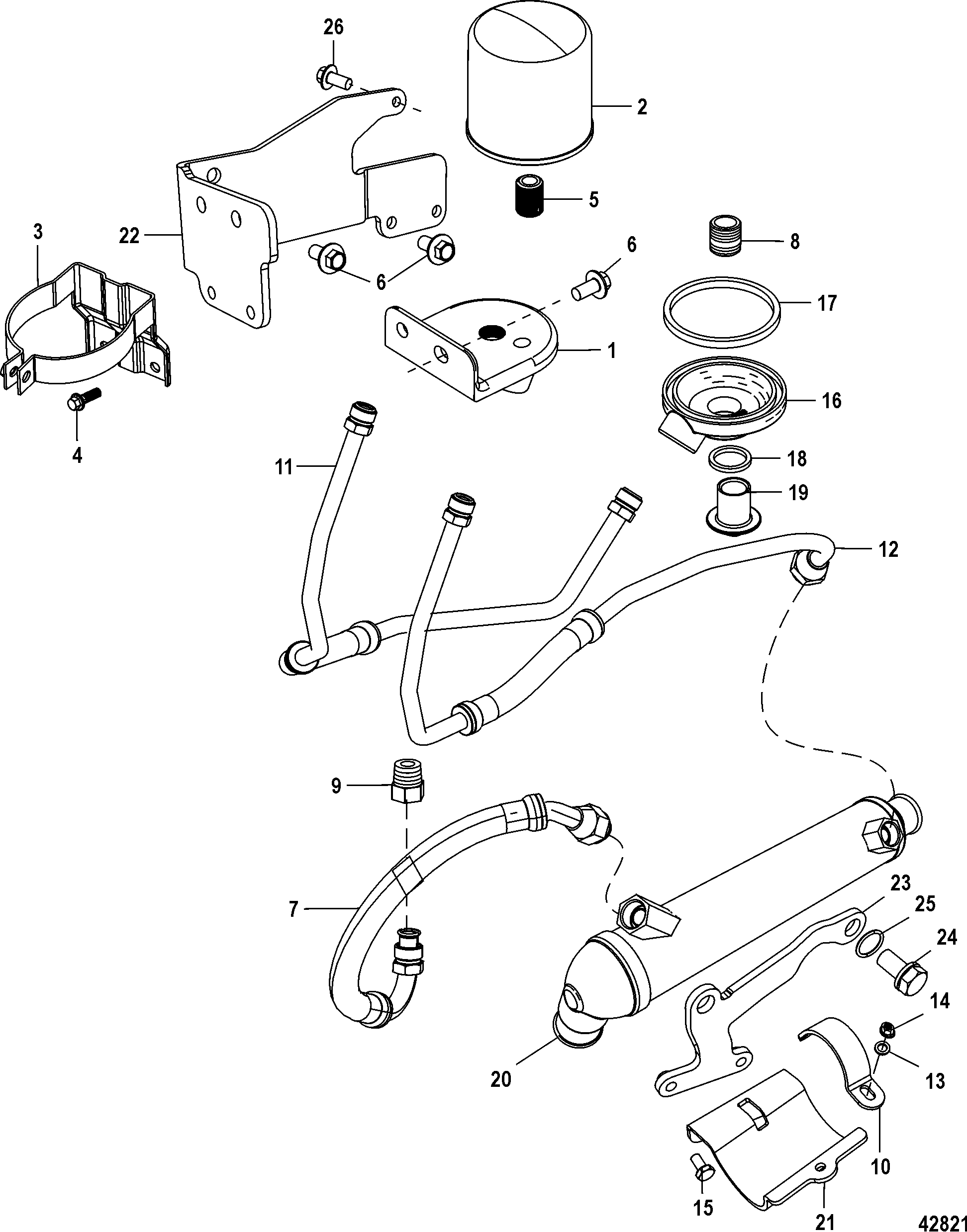

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 863732T1



BRACKET, Remote Oil Filter 1
2 35-866340Q03



FILTER, Oil - Quicksilver Brand 1

2 35-866340K01



FILTER, Oil - Mercury Brand 1
3 865262A02



BRACKET ASSEMBLY 1

4 10-4010716



SCREW, (M8 x 16) 2
5 22-863485



FITTING 1
6 10-4010820



SCREW, (M10 x 20) Hex Flange - Stainless Steel AR
7 32-8M2017402



HOSE, Oil, Cooler to Adaptor 1
8 22-805632



CONNECTOR 1
9 22-93190



FITTING, (.375 NPTF x .50 Inverted Flare) 1
10 807445T



CLAMP, Cooler Bracket 1
11 32-8M2017405



LINE, Oil, Filter Base to Block 1
12 32-8M2017485



LINE, Oil, Filter to Cooler 1
13 12-35044



WASHER, (.281 x .625 x .065) Stainless Steel 1
14 11-401366



NUT, (M6) Stainless Steel 1
15 10-28636



SCREW, (.250-20 x .750) 2
16 862870T



ADAPTOR, Oil Filter 1
17 26-862957



SEAL, Oil Filter Adaptor 1   2
18 26-42077



SEAL, Swivel Tube 1   2
19 22-862958



FITTING, Oil Filter Adaptor 1
20 8M0045696



COOLER, Oil 1
21 863905T



BRACKET, Oil Cooler 1
22 8M0045300



BRACKET, Remote Oil 1
23 8M2018755



BRACKET, Oil Cooler, Intermediate 1
24 10-8M2019251



SCREW, (.500-13 x 1.00), Oil Cooler to Block 2
25 12-54012



WASHER, (.530 x .870 x .105) Stainless Steel 2
26 10-4010612



SCREW, (M6 x 12) Stainless Steel, Remote Oil Bracket to Collector 1
