8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Poppet Valve Assembly

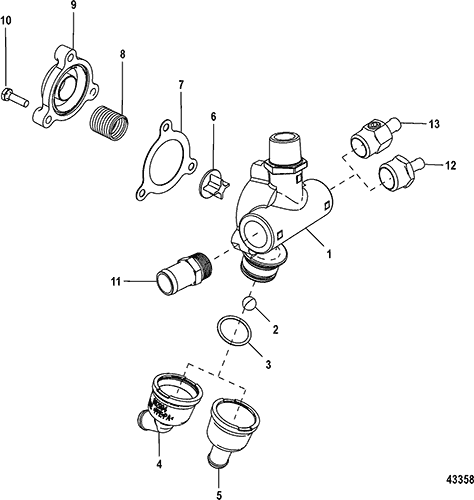

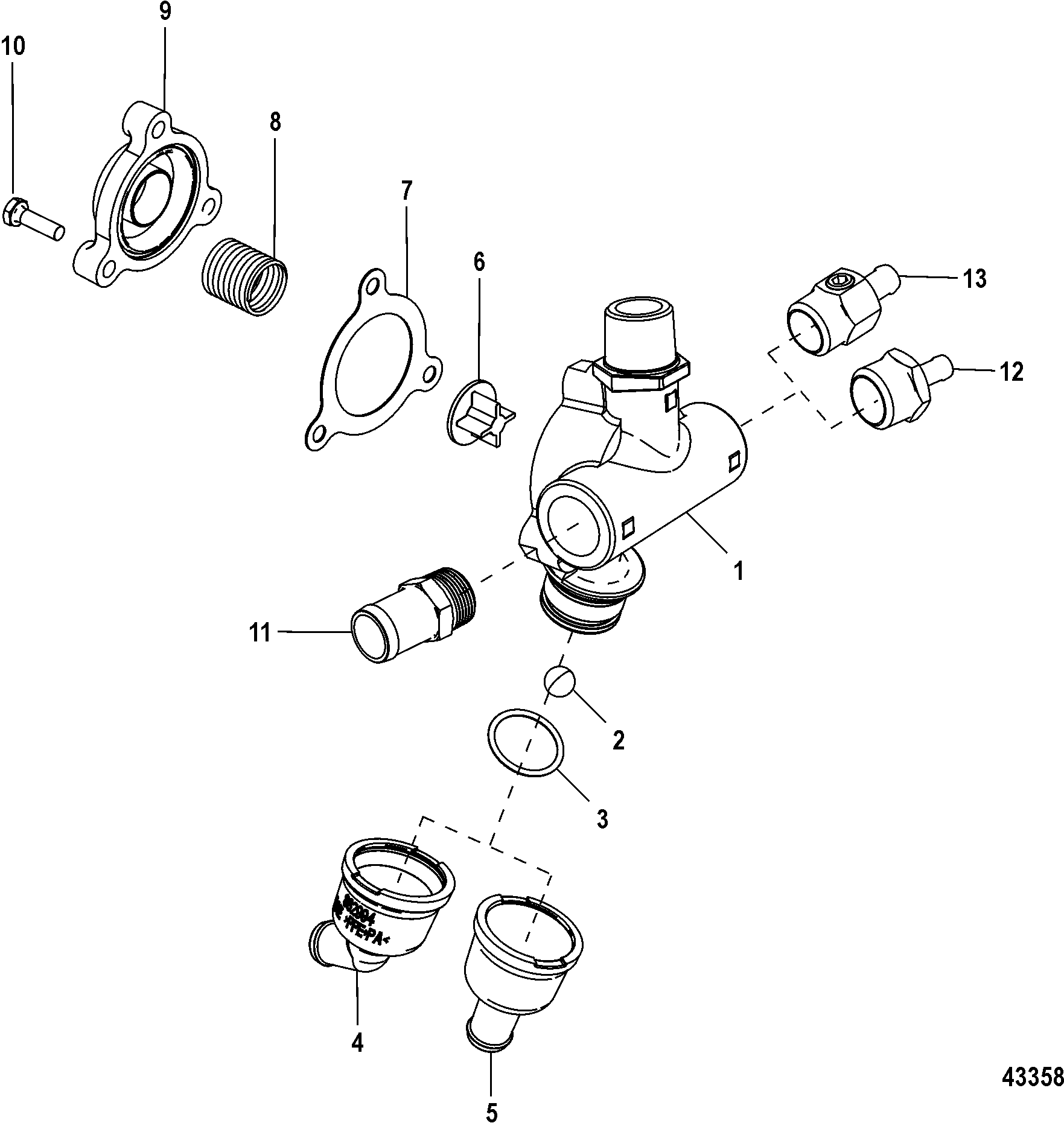

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Elbow, Vent Valve
- Exhaust Manifold And Elbow
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Poppet Valve Assembly
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Description | Num Req. | Superseded From | Special Notes |
| 1 | 879288T59 | VALVE, Poppet Assembly | 1 | |||||
| 1 | 879288T59 | VALVE ASSEMBLY, Poppet | 1 | 8M0045697 | Port SN# 1A351400 & Below | |||
| 2 | 30-863129 | BALL | 1 | |||||
| 3 | 25-864701 | O-RING, (1.112 x .103) | 1 | |||||
| 4 | 862994T | FITTING | 1 | |||||
| 5 | 22-8M0045576 | -FITTING, Drain | 1 | Port SN# 1A351400 & Below | ||||
| 6 | 8M2010186 | POPPET | 1 | |||||
| 7 | 25-8M2010475 | GASKET, Poppet Cover | 1 | |||||
| 8 | 24-42996 | 700-13824 | SPRING, (Stainless Steel) | 1 | ||||
| 9 | 8M2003831 | CAP, Thermostat | 1 | 8M8020473 | ||||
| 10 | 10-28668 | 676-9-78127 | 700-22440 | SCREW, (.250-20 x .875) Stainless Steel | 3 | |||
| 11 | 22-866725 | 700-13984 | FITTING, Straight (.750-14) | 2 | ||||
| 12 | 22-8M2011728 | FITTING, Straight (3/4 x 0.5) | 2 | (MCM) | ||||
| 13 | 8M2016321 | FITTING, Straight (3/4 x 0.5) | 2 | (MIE) |
