8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Exhaust System Components

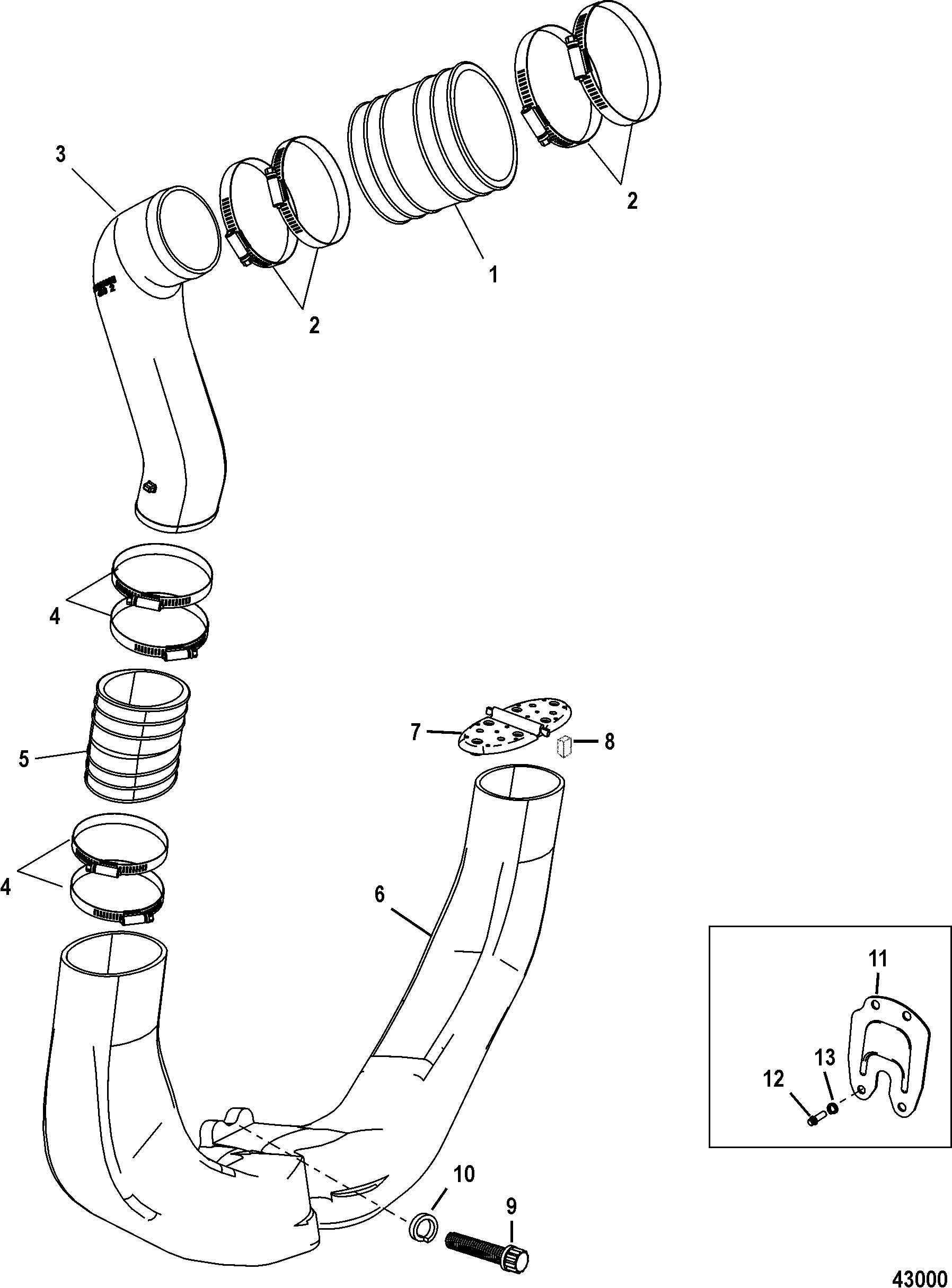

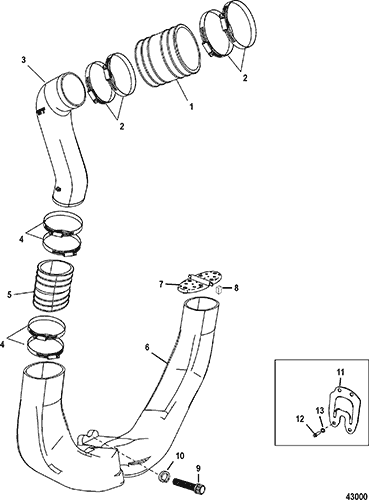

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Elbow, Vent Valve
- Exhaust Manifold And Elbow
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Poppet Valve Assembly
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 32-44348001 | TUBE, Exhaust | 2 | ||||||
| 2 | 54-815504272 | CLAMP, Worm Gear | 8 | ||||||
| 3 | 44267A02 | ELBOW KIT, Intermediate (2 - 8 Inch Riser) | 1 | ||||||
| 4 | 54-815504272 | CLAMP, Worm Gear | 8 | ||||||
| 5 | 32-14358001 | TUBE, Exhaust | 2 | ||||||
| 6 | 807130A4 | PIPE, Exhaust | 1 | ||||||
| 7 | 807166A1 | SHUTTER ASSEMBLY, Water | 2 | ||||||
| 8 | 25-807167 | GROMMET | 4 | ||||||
| 9 | 10-58640 | SCREW, (.375-16 x 1.25) | 4 | ||||||
| 10 | 13-41471 | LOCKWASHER, (.375) | 4 | ||||||
| 11 | 861776A2 | PLATE KIT | 1 | Through Transome Exhaust | |||||
| 12 | 10-98794 | 676-9-78129 | 700-28300 | 525-10-98794 | SCREW, (.375-16 x 1.00) | 4 | Through Transom Exhaust | ||
| 13 | 13-41471 | LOCKWASHER, (.375) | 4 | Through Transom Exhaust |
