8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Drive Lube Reservoir Assembly

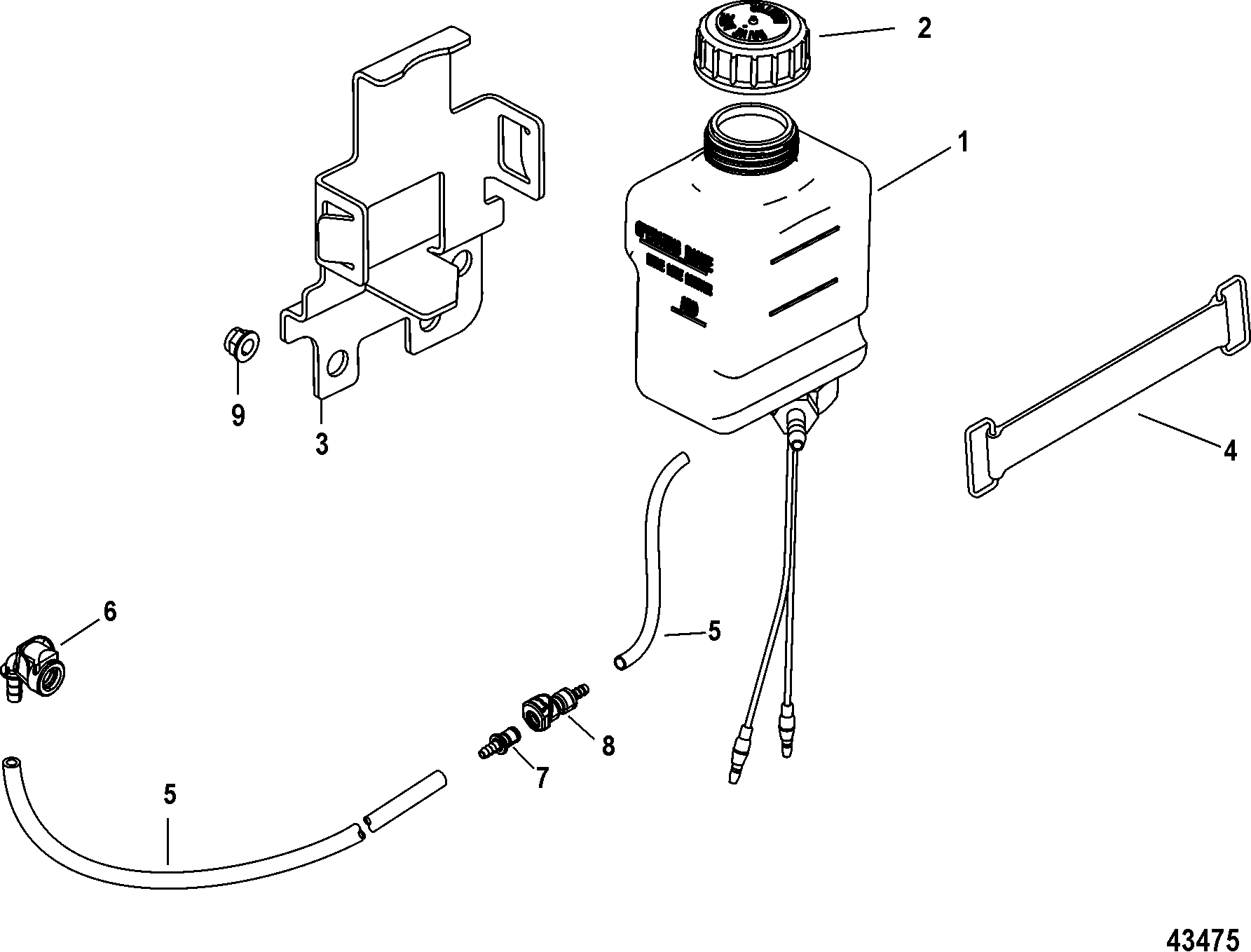

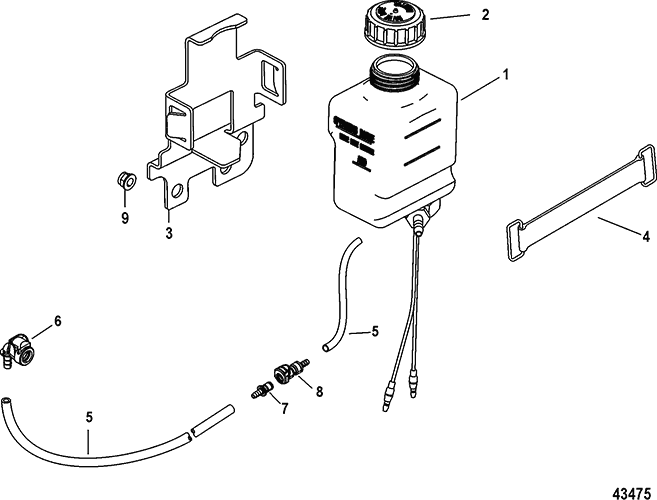

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Elbow, Vent Valve
- Exhaust Manifold And Elbow
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Poppet Valve Assembly
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 806193A46 | LUBE BOTTLE, Drive Lube | 1 | ||||||
| 2 | 36-8067271 | CAP, Drive Lube Monitor | 1 | ||||||
| 3 | 860065A1 | BRACKET KIT, Oil Bottle, Drive Lube Reservoir | 1 | ||||||
| 4 | 808023T | STRAP, Bracket | 1 | ||||||
| 5 | 32-8M0062600 | HOSE, (54.00 Inches Bulk) | 1 | 32-1940971 | |||||
| 6 | 22-861163 | QUICK CONNECTOR, (90 Degree), To Transom | 1 | ||||||
| 7 | 22-865191 | FITTING, Male, Quick Connect | 1 | ||||||
| 8 | 22-865379 | FITTING, Female, Quick Connect | 1 | ||||||
| 9 | 11-826292 | NUT, (M10) Brass/Nickel Plated | 2 |
