8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Alternator

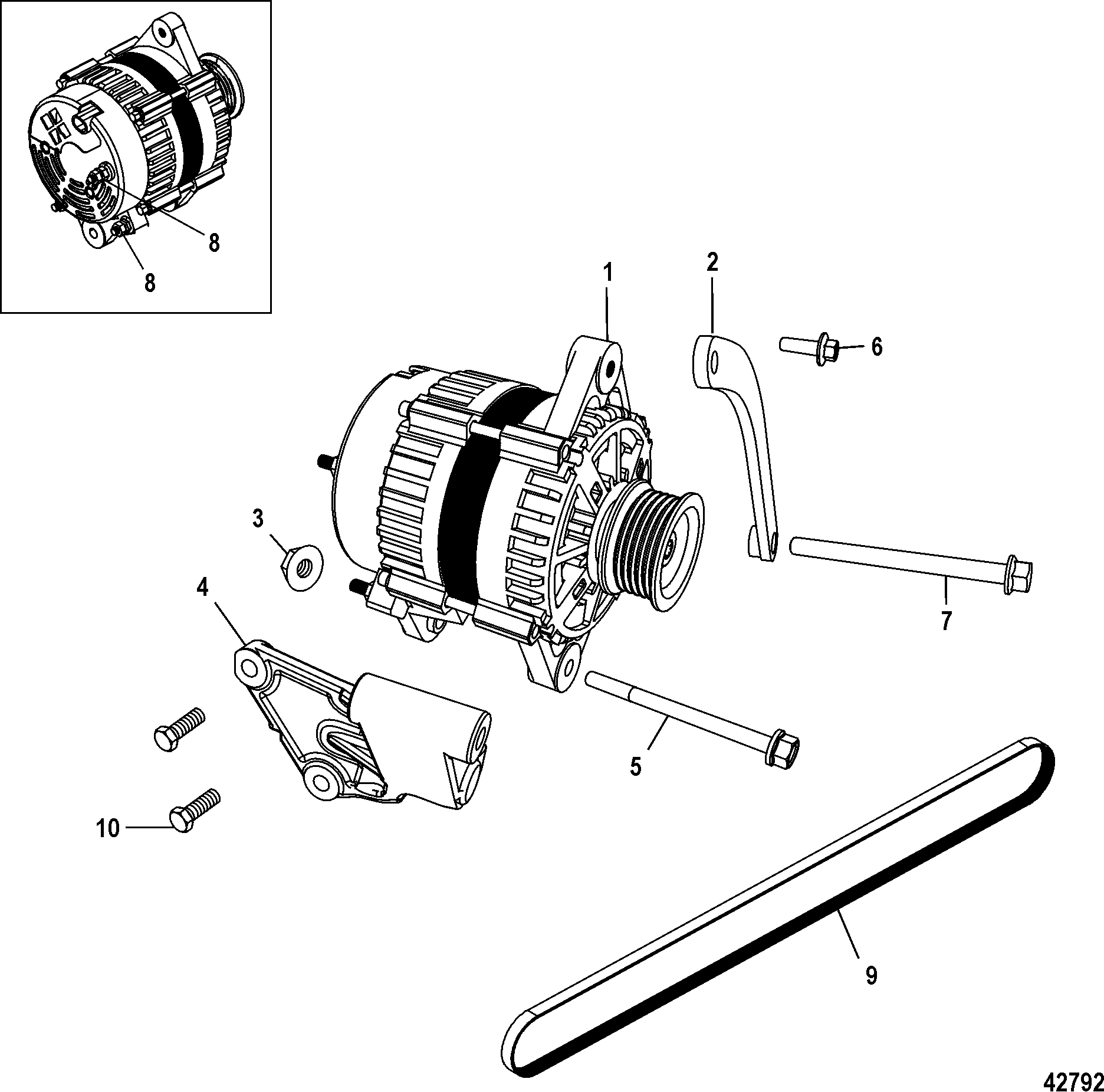

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator
- Cool Fuel System
- Cooling System, Fresh Water Components
- Cooling System, Raw Water Components, Port
- Cooling System, Raw Water Components, Starboard
- Crankshaft, Piston, Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head
- Drive Lube Reservoir Assembly
- Electrical Components
- Engine Mounts
- Exhaust Elbow, Vent Valve
- Exhaust Manifold And Elbow
- Exhaust System Components
- Flywheel Housing
- Fuel Module Components -Bravo
- Gasket Set, Overhaul
- Intake Manifold
- Jackshaft Main Kit
- Oil Pan And Oil Pump
- Poppet Valve Assembly
- Remote Oil System
- Seawater Pump
- Shift Bracket, Digital Throttle And Shift
- Shift Bracket, Mechanical
- Starter Motor
- Steering Components
- Throttle Body, Digital Throttle-Shift
- Throttle Body, Mechanical Throttle-Shift
- Throttle Lever Assembly, Mechanical Throttle-Shift
- Trim Pump And Motor Components
- Trim Pump Assembly
- Water Drain System
- Water Pump And Front Cover
- Wiring Harness And Lifting Brackets
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 863077T | ALTERNATOR ASSEMBLY, Black | 1 | ||||||
| 2 | 8M2017248 | BRACKET, Alternator | 1 | ||||||
| 3 | 11-826365 | NUT, (M8) | 1 | ||||||
| 4 | 8M0045251 | BRACKET, Alternator | 1 | ||||||
| 5 | 10-824459110 | SCREW, (M8 x 110) Stainless Steel | 1 | ||||||
| 6 | 10-4010725 | SCREW, (M8 x 25) | 1 | ||||||
| 7 | 10-8M2017380 | SCREW, (.4375-14 x 5.5) | 1 | ||||||
| 8 | 11-400212 | NUT, (M6) Stainless Steel | 2 | ||||||
| 9 | 57-8M0045227 | BELT, Serpentine | 1 | MCM | |||||
| 9 | 57-8M0045986 | BELT, Serpentine | 1 | MIE | |||||
| 10 | 10-865982005 | SCREW, (.375-16 x 1.00) , Alternator Bracket | 2 |
