8.2L Mag EC (Base or HO) - Serial 1A350340 and Up - Throttle Body, Digital Throttle-Shift

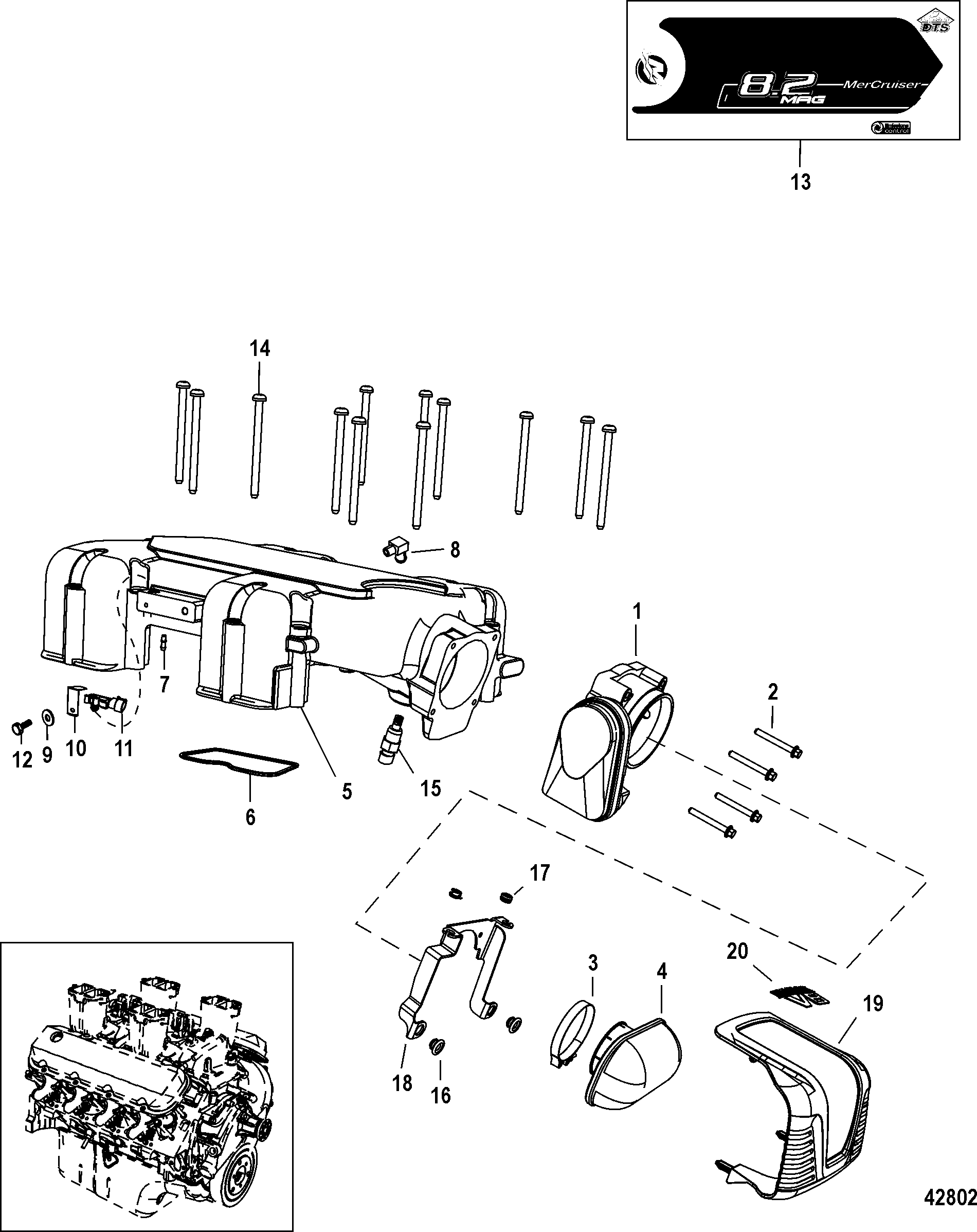

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8M0046460



THROTTLE BODY ASSEMBLY 1
(Digital)
2 10-88552550



SCREW, (M6 x 50 MM) Stainless Steel 4

3 54-863393



CLAMP 1

4 8M0045238



FLAME ARRESTOR 1

5 8M0045237



PLENUM ASSEMBLY 1

6 8M0044310



SEAL, Intake Manifold 4
2
7 22-805598



FITTING, (.1875) Barb 1

8 22-687271



FITTING, (.250-18) 90 Degree - Brass 1

9 12-30164



WASHER, (.192 x .375 x .0312) Stainless Steel 1

10 8M0061478



BRACKET, MAP Sensor Mount, Sensor 1 840981
11 854445



SENSOR, MAP 1

12 10-847401



SCREW, (#10-24 x .380) 1
13 8M0045436



DECAL SET, 8.2L Base, Plenum 1
13 8M0045437



DECAL SET, 8.2L High Output, Plenum 1
13 8M0045438



DECAL SET, 8.2L Base (SeaCore), Plenum 1
13 37-8M0045439



DECAL SET, 8.2L High Output (SeaCore), Plenum 1
14 10-805391



SCREW, (.312-18 x 4.500) 12
15 805223T



SENSOR 1
