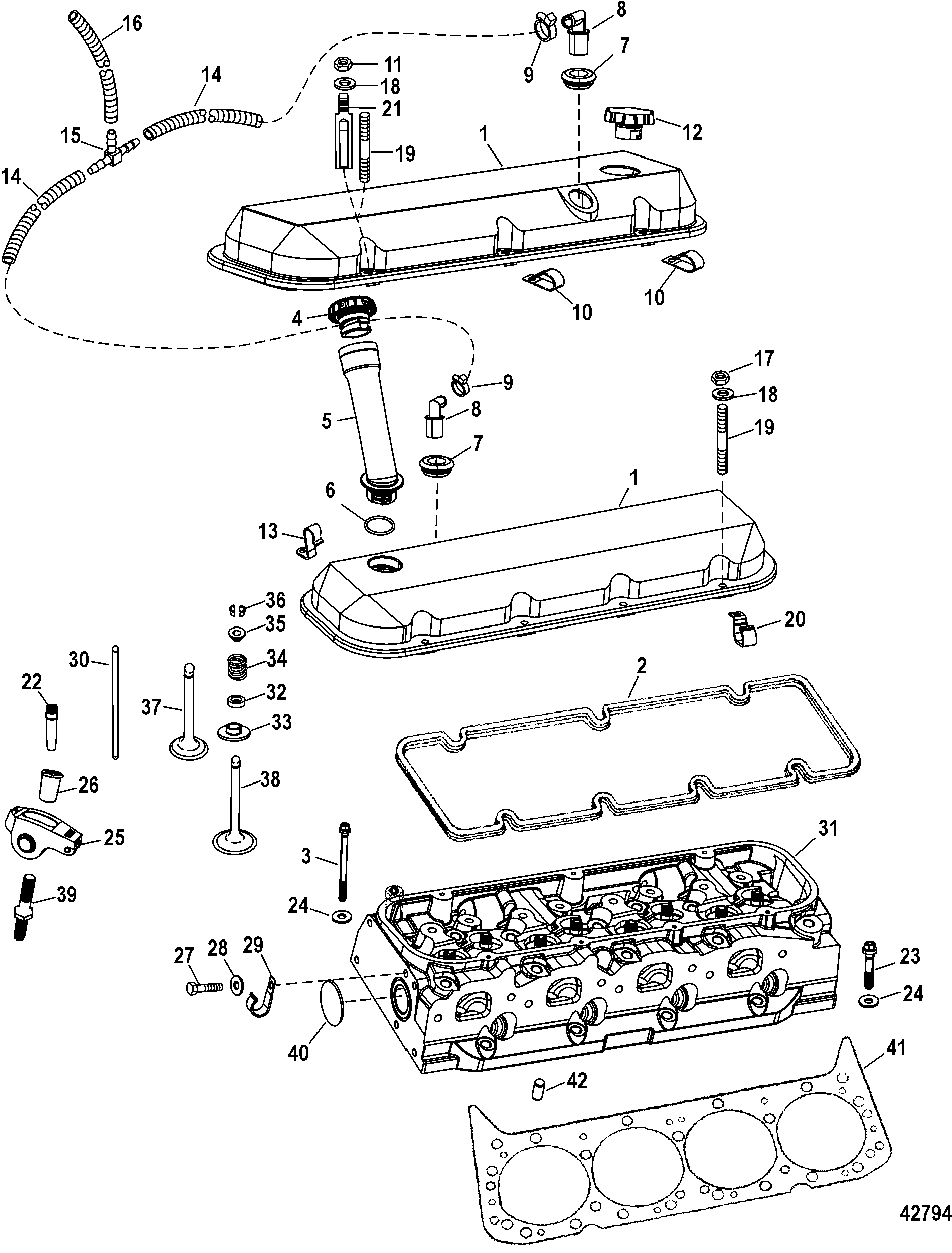

| Ref. |
OEM Part # |
Hardin # |
Mallory # |
GLM # |
Description |
Num Req. |
Superseded From |
Special Notes |
| 1 |
8M0045254 |
|
|
|
COVER ASSEMBLY, Rocker |
2 |
|
|
| 2 |
27-811588 |
|
676-9-61315 |
|
GASKET, Rocker Cover |
2 |
|
2 |
| 3 |
10-8M0000467 |
|
|
|
SCREW, (.438-14 x 5.060) Black Oxide |
10 |
|
5 |
| 3 |
10-8M0000482 |
|
|
|
SCREW, (.438-14 x 4.060) Black Oxide |
14 |
|
5 |
| 4 |
378M0065093 |
|
|
|
CAP, Oil Fill |
1 |
36-8M0045794 |
|
| 5 |
8M0045749 |
|
|
|
TUBE, Oil FIll |
1 |
|
|
| 6 |
NSS |
|
|
|
NOT SOLD SEPARATE, O-RING |
1 |
|
This Part is not sold seperately |
| 7 |
25-811553 |
|
|
|
GROMMET |
2 |
|
2, 5 |
| 8 |
97850T |
|
|
|
ELBOW, 90 Degree, Breather |
2 |
97850 |
|
| 9 |
54-816311T |
|
|
700-21465 |
TIE STRAP, (8.00 Inches) |
2 |
|
|
| 10 |
54-858951 |
|
|
|
J CLIP |
2 |
|
5 |
| 11 |
11-826709109 |
|
|
|
NUT, (.250-28) Stainless Steel |
1 |
|
SN# 1A351717 & Below |
| 12 |
845753T1 |
|
|
|
CAP, Oil Fill |
2 |
|
5 |
| 13 |
54-42553 |
|
|
|
J CLIP |
1 |
|
5 |
| 14 |
32-1589431 |
|
|
|
TUBING, (20.00 Inches Bulk), Cut 2 Pieces - 8.5 Inches |
AR |
|
|
| 15 |
22-849999 |
|
|
|
FITTING, Tee |
1 |
|
|
| 16 |
32-1589431 |
|
|
|
TUBING, (20.00 Inches Bulk), Cut As Required |
AR |
|
|
| 17 |
11-8267089 |
|
|
|
NUT, (.250-28) |
13 |
|
SN# 1A351717 & Below 5 |
| 17 |
11-8267089 |
|
|
|
NUT, (.250-28) |
14 |
|
SN# 1A351718 & Up 5 |
| 18 |
12-846673 |
|
|
|
WASHER, (.265 x .500 x .060) Stainless Steel |
14 |
|
5 |
| 19 |
16-56766 |
|
|
|
STUD, (.250-20/.250-28 x 1.380) |
14 |
|
5 |
| 20 |
54-15095 |
|
|
|
J CLIP |
1 |
|
|
| 21 |
16-8M2018644 |
|
|
|
STUD, Special, Reservoir Bracket to Valve Cover Stud |
1 |
|
SN# 1A351717 & Below |
| 22 |
840942 |
|
|
|
GUIDE, Pushrod |
8 |
|
5 |
| 23 |
10-8M0000463 |
|
|
|
SCREW, (.438-14 x 2.060) Black Oxide |
8 |
|
5 |
| 24 |
12-841990 |
|
|
|
WASHER, Special - Black |
32 |
|
5 |
| 25 |
8M0045762 |
|
|
|
ROCKER ARM ASSEMBLY |
16 |
|
5 |
| 26 |
11-8M0043537 |
|
|
|
NUT, Rocker |
16 |
|
5 |
| 27 |
10-99204 |
|
|
|
SCREW, (.437-14 x 1.00) Stainless Steel |
1 |
|
|
| 28 |
12-45176 |
|
|
|
WASHER, (.453 x .812 x .105) Stainless Steel |
1 |
|
|
| 29 |
54-843142 |
|
|
|
J CLIP |
1 |
|
|
| 30 |
848262 |
|
|
|
PUSH ROD, (7.550) |
8 |
|
Intake 5 |
| 30 |
848264 |
|
|
|
PUSH ROD, (8.550) |
8 |
|
Exhaust 5 |
| 31 |
8M0046344 |
|
|
|
CYLINDER HEAD ASSEMBLY |
2 |
|
5 |
| 32 |
26-842755 |
|
|
|
SEAL, Valve, Intake And Exhaust |
16 |
|
2, 5 |
| 33 |
840678 |
|
|
|
SEAT, Spring |
16 |
|
5 |
| 34 |
24-8M0042978 |
|
|
|
SPRING, Valve |
8 |
|
5 |
| 35 |
8M0043175 |
|
|
|
RETAINER, Valve Spring |
8 |
|
5 |
| 36 |
8M0042576 |
|
|
|
KEY, Valve Stem |
32 |
|
5 |
| 37 |
8M0046324 |
|
|
|
VALVE, Intake |
8 |
|
5 |
| 38 |
8M0046325 |
|
|
|
VALVE, Exhaust |
8 |
|
5 |
| 39 |
95820 |
|
|
|
STUD, Rocker Arm Valve |
8 |
|
Intake 5 |
| 39 |
16-843129 |
|
|
|
STUD, Rocker Arm Valve |
8 |
|
Exhaust 5 |
| 40 |
19-47463 |
|
|
|
EXPANSION PLU |
2 |
|
5 |
| 41 |
27-811546A04 |
|
|
|
GASKET KIT, Cylinder Head |
2 |
|
2, 5 |
| 42 |
17-843931 |
|
|
|
PIN, Dowel, Cylinder Head Gasket Locator |
4 |
|
2, 5 |
